techiny.com Endstop switches provide precise and reliable homing by physically detecting the printer's axis limits, ensuring consistent start positions for 3D printing pets. Sensorless homing uses the stepper motor's built-in driver feedback to detect physical limits without extra hardware, offering a cleaner setup and easier wiring but sometimes less accuracy. Choosing between endstops and sensorless homing impacts reliability and maintenance, with endstops favored for durability and sensorless homing preferred for minimal hardware complexity.
Table of Comparison
| Feature | Endstop Homing | Sensorless Homing |
|---|---|---|
| Definition | Physical switch at axis limit detects position. | Motor current sensing detects axis position without switches. |
| Hardware Required | Mechanical or optical limit switches. | No extra hardware; uses stepper motor drivers. |
| Reliability | Highly reliable with proper installation. | May be affected by motor noise and settings. |
| Installation Complexity | Requires mounting and wiring switches. | Software configuration only. |
| Cost | Additional cost for switches and wiring. | Cost-effective; no additional components needed. |
| Compatibility | Works with most firmware and printers. | Requires compatible stepper drivers and firmware support. |
| Failure Modes | Switch wear or wiring faults cause errors. | False triggers possible; requires tuning. |
| Precision | Consistent and repeatable homing point. | Comparable precision if tuned properly. |
| Use Cases | Standard on budget and DIY printers. | Popular in advanced or silent 3D printers. |
Introduction to 3D Printer Homing Methods
3D printer homing methods ensure precise positioning of the printhead by defining a known origin point, crucial for print accuracy and repeatability. Endstop homing uses physical switches triggered by the moving parts to signal the home position, offering straightforward implementation and reliability. Sensorless homing relies on detecting motor current changes to identify mechanical limits, enabling fewer components and enhanced durability in certain printer designs.
What are Endstops in 3D Printing?
Endstops in 3D printing are physical switches or optical sensors installed at the axis limits to accurately define the printer's home position. They serve as reference points that signal the printer when an axis has reached its minimum or maximum limit, preventing mechanical overtravel and ensuring precise layer alignment. Endstops play a crucial role in calibrating the printer's movement and maintaining print accuracy throughout the printing process.
How Sensorless Homing Works
Sensorless homing in 3D printers eliminates mechanical endstops by using the stepper motor drivers' ability to detect motor current changes caused by physical resistance when the axis reaches its limit. This method monitors back-EMF (electromotive force) signals to identify stall conditions without additional hardware, enabling precise position detection. Sensorless homing reduces wiring complexity and potential mechanical failures, thus streamlining printer design while maintaining accuracy in axis calibration.
Key Differences Between Endstops and Sensorless Homing
Endstops use physical switches to detect the position of the print head, providing precise and reliable homing points, while sensorless homing relies on stepper motor current changes to identify mechanical limits without additional hardware. Endstops require wiring and space on the printer frame, which can complicate assembly, whereas sensorless homing simplifies hardware but may be less accurate on certain printer designs. Key differences include reliability, installation complexity, and sensitivity to mechanical variations, with endstops offering consistent repeatability and sensorless methods offering a cleaner, more compact setup.
Advantages of Using Endstops
Endstops provide precise and reliable homing by physically detecting the axis limits, ensuring consistent positioning accuracy in 3D printers. Unlike sensorless homing, endstops are less prone to interference from electrical noise or mechanical variations, resulting in improved repeatability and reduced calibration time. Their straightforward installation and compatibility with most firmware make endstops a dependable choice for maintaining printer alignment and enhancing overall print quality.
Benefits of Sensorless Homing
Sensorless homing in 3D printing eliminates the need for physical endstops by using the stepper motor's feedback to detect the axis limits, reducing hardware complexity and wiring issues. This method enhances printer reliability by minimizing mechanical wear and potential sensor failures, leading to more consistent homing accuracy. Furthermore, sensorless homing allows for easier printer maintenance and cleaner designs, benefiting both hobbyist and professional 3D printer setups.
Limitations of Traditional Endstops
Traditional endstops in 3D printing often suffer from mechanical wear and imprecise triggering, leading to reduced accuracy over time. These physical switches require precise alignment and can fail due to dirt, dust, or vibration, causing inconsistent homing results. Unlike sensorless homing, endstops add complexity with wiring and hardware maintenance, increasing the risk of failure during prolonged use.
Challenges with Sensorless Homing
Sensorless homing in 3D printing faces challenges such as reduced reliability due to motor vibration sensitivity, which can cause inaccurate homing positions and print failures. It often struggles with consistent detection on certain print surfaces and mechanical setups, requiring careful tuning of firmware parameters. Electrical noise and varying motor characteristics further complicate sensorless homing performance compared to traditional endstop switches.
Compatibility and Setup Considerations
Endstop switches offer broad compatibility with most 3D printer controllers, requiring straightforward wiring and mechanical installation, making them ideal for beginners and budget builds. Sensorless homing, relying on stepper motor feedback, demands compatible drivers like Trinamic TMC series and fine-tuned firmware settings for precise detection, which can increase setup complexity. Choosing between endstops and sensorless homing depends on existing hardware compatibility and the user's willingness to engage in advanced calibration processes.
Choosing the Best Homing Option for Your 3D Printer
Choosing the best homing option for your 3D printer depends on accuracy, ease of installation, and cost-effectiveness. Endstops provide reliable mechanical feedback with straightforward wiring, ideal for beginners and budget-conscious users seeking consistent position references. Sensorless homing uses the printer's stepper motor feedback to detect limits, reducing hardware complexity and offering smooth operation, making it suitable for advanced setups prioritizing compact design and minimal maintenance.

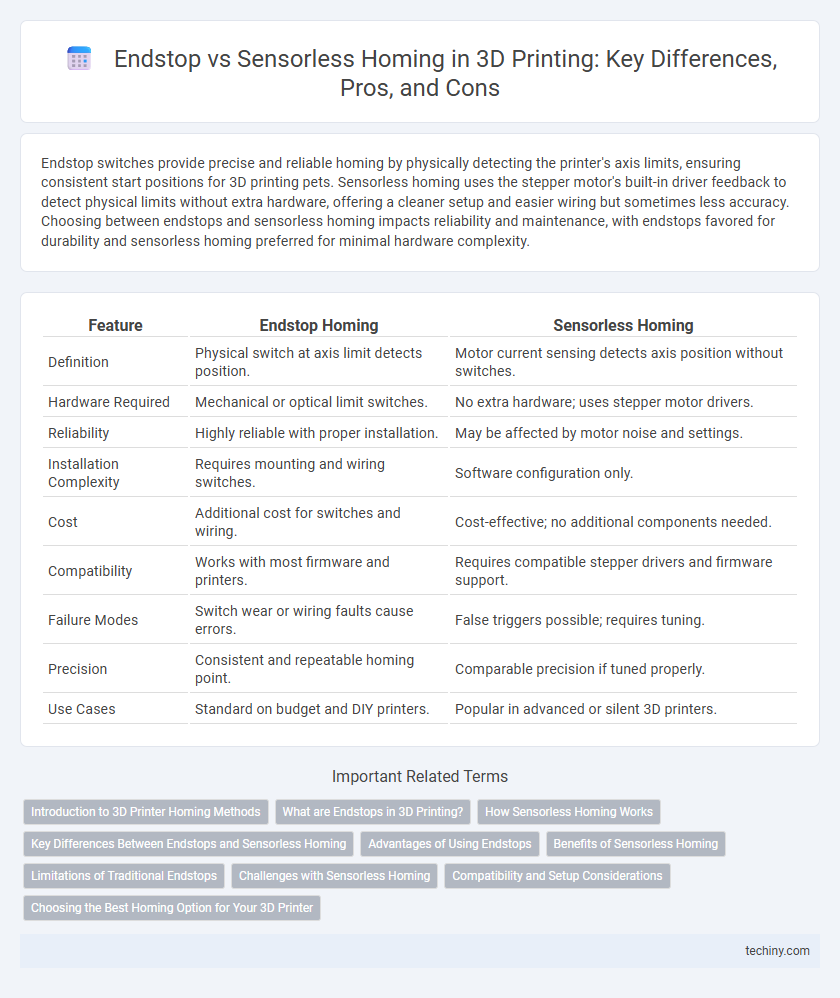

Endstop vs Sensorless homing Infographic
