techiny.com Resolution in 3D printing pet models refers to the smallest layer height the printer can achieve, impacting surface smoothness and fine detail visibility. Accuracy measures how closely the printed pet matches the original digital design in dimensions and proportions, essential for realistic reproductions. High resolution does not always guarantee high accuracy; both factors must be optimized to produce a detailed and faithful 3D printed pet.
Table of Comparison
| Aspect | Resolution | Accuracy |
|---|---|---|
| Definition | Smallest detail a 3D printer can create, typically measured in microns (um). | Degree to which the printed part matches the original design dimensions. |
| Measurement | Layer height, XY positioning precision. | Dimensional deviation, tolerance levels. |
| Typical Values | 20-100 microns layer height. | +-0.1 to +-0.5 mm deviation. |
| Impact | Determines surface detail and smoothness. | Ensures parts fit and function as designed. |
| Optimization | Adjust layer thickness and XY resolution settings. | Calibrate printer and compensate for material shrinkage. |
| Example | FDM printer at 50 microns layer height. | Part dimension within +-0.2 mm of CAD model. |
Understanding 3D Printing Resolution
3D printing resolution defines the smallest detail a printer can produce, typically measured in microns, directly influencing the surface smoothness of the printed object. Accuracy refers to how closely the printed model matches the original design dimensions, impacted by factors like printer calibration and material shrinkage. Understanding the distinction between resolution and accuracy is crucial for selecting the appropriate 3D printing technology, such as SLA for high resolution or FDM for improved dimensional accuracy.
What Is Accuracy in 3D Printing?
Accuracy in 3D printing refers to the degree to which the printed object matches the intended design dimensions and geometry, reflecting the printer's ability to reproduce exact specifications. It is influenced by factors such as printer calibration, material properties, and mechanical stability, resulting in minimal deviations between the CAD model and the final product. High accuracy ensures functional parts fit precisely in assemblies and meet engineering tolerances, critical for prototyping and end-use manufacturing.
Resolution vs Accuracy: Key Differences
Resolution in 3D printing refers to the smallest feature size a printer can produce, often measured in microns, impacting the level of detail in the final print. Accuracy defines how closely the printed object matches the original design dimensions, considering factors like material shrinkage and printer calibration. Key differences highlight that high resolution does not guarantee high accuracy, as printers may produce fine details that are dimensionally off, affecting the functional fit of parts.
Impact of Resolution on Print Quality
Higher resolution in 3D printing directly affects print quality by producing finer details and smoother surfaces, which is crucial for complex geometries and intricate designs. While resolution defines the smallest feature size a printer can create, accuracy determines how closely the printed object matches the intended dimensions, with resolution influencing the level of detail and overall visual fidelity. Improved resolution minimizes layer lines and surface roughness, enhancing the final aesthetic and functional performance of printed parts.
How Accuracy Affects Functional Performance
Accuracy in 3D printing directly impacts the functional performance of printed parts by ensuring dimensional fidelity and proper fit within assemblies. High accuracy minimizes deviations from design specifications, which is crucial for mechanical components requiring tight tolerances and consistent performance under stress. Inaccurate prints can lead to malfunctions, reduced durability, and compromised safety in end-use applications.
Factors Influencing 3D Printing Resolution
3D printing resolution is determined by factors such as layer height, nozzle diameter, and the precision of the stepper motors driving the print head. Material properties and printer calibration also play critical roles in achieving fine detail and dimensional accuracy. Environmental conditions like temperature and humidity can further affect print quality and resolution consistency.
Accuracy Limitations in Different 3D Printing Technologies
Accuracy limitations in 3D printing vary significantly across technologies due to factors such as layer thickness, material properties, and machine calibration. For instance, stereolithography (SLA) offers high accuracy with layer heights as low as 25 microns but can suffer from resin shrinkage, while fused deposition modeling (FDM) typically exhibits lower dimensional accuracy due to filament extrusion inconsistencies and thermal expansion. Selective laser sintering (SLS) balances resolution and accuracy but faces challenges with powder particle size and layer bonding, impacting final part precision.
Choosing Between High Resolution and High Accuracy
High resolution in 3D printing refers to the level of detail a printer can achieve, measured in microns, while high accuracy ensures the final print dimensions closely match the original design specifications. Choosing between high resolution and high accuracy depends on the application; prototypes requiring fine surface finishes benefit from high resolution, whereas functional parts needing precise dimensions prioritize high accuracy. Balancing these factors optimizes print quality, minimizing post-processing and ensuring structural integrity.
Common Misconceptions: Resolution vs Accuracy
Resolution and accuracy in 3D printing are often confused, but they represent different aspects of print quality; resolution refers to the smallest feature size a printer can produce, while accuracy describes how closely the printed object matches the intended dimensions. Misconceptions arise when high resolution is mistaken for high accuracy, but a printer can produce fine details without precisely replicating the design due to factors like material shrinkage and mechanical calibration. Understanding this distinction is crucial for selecting the right 3D printer and materials to meet specific project requirements in prototyping or manufacturing.
Optimizing 3D Prints for Both Resolution and Accuracy
Optimizing 3D prints for both resolution and accuracy requires balancing layer height and nozzle diameter to achieve fine detail without sacrificing dimensional fidelity. Calibration of the printer's mechanical components and precise temperature control are crucial for maintaining consistent extrusion and minimizing errors. Advanced slicing software can further enhance results by optimizing toolpaths and compensating for material shrinkage, ensuring high-resolution prints with accurate dimensions.

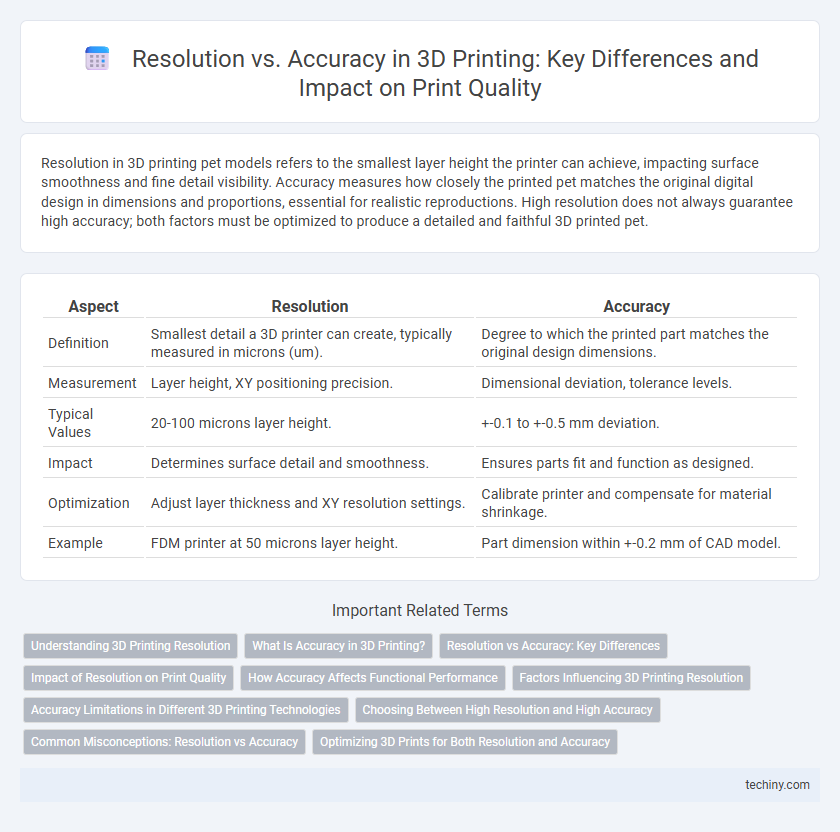

Resolution vs Accuracy Infographic
