techiny.com In 3D printing pets, the balance between shells and infill is crucial for durability and weight. Shells form the outer walls providing strength and surface finish, while infill supplies internal support and reduces material use. Optimizing shells with thicker layers enhances toughness, whereas adjusting infill density controls the pet's rigidity and overall printing time.
Table of Comparison
| Feature | Shells | Infill |
|---|---|---|
| Definition | Outer walls of a 3D print providing structural surface | Internal lattice structure for strength and material efficiency |
| Purpose | Ensures surface finish and external durability | Supports the outer shells and manages overall strength |
| Material Usage | Higher with increased shell count | Variable based on infill density percentage |
| Print Time | Increases with more shells | Increases with higher infill density |
| Strength Impact | Improves surface rigidity and impact resistance | Enhances internal stability and load distribution |
| Customization | Adjustable shell count (e.g., 1-5 shells) | Adjustable infill patterns and densities (e.g., 10%-100%) |
| Common Use Cases | Models requiring smooth finish and high surface strength | Functional parts needing optimized strength-to-weight ratio |
Shells vs Infill: Understanding the Basics
Shells define the outer walls of a 3D printed object, providing structural integrity and surface detail, while infill fills the interior space to support the shells and reduce material usage. Increasing shell count enhances strength and durability but also increases print time and material consumption, whereas adjusting infill density balances weight, strength, and print speed. Understanding shells versus infill is essential for optimizing mechanical properties and material efficiency in 3D printing.
How Shells Impact 3D Print Strength
Increasing the number of shells in 3D printing significantly enhances part strength by reinforcing the outer walls, which bear the majority of mechanical stress. Shells provide a solid perimeter that improves impact resistance, surface finish, and durability compared to relying on infill density alone. Optimizing shell thickness optimally balances material usage and structural integrity, making it crucial for functional and load-bearing prints.
Infill Patterns and Their Functional Benefits
Infill patterns in 3D printing, such as honeycomb, grid, and gyroid, directly impact the strength, weight, and material usage of a printed object, optimizing performance for specific applications. Honeycomb offers superior strength-to-weight ratio, grid patterns provide ease of print and moderate support, while gyroid ensures isotropic mechanical properties for durability and flexibility. Selecting the appropriate infill pattern enhances structural integrity, reduces print time, and conserves filament, aligning with functional needs and design goals.
Comparing Print Time: Shells vs Infill
Shells increase print time primarily by adding multiple perimeters, which require precise extrusion and slow travel speeds to ensure surface quality. Infill impacts print time based on pattern density and complexity, with higher densities significantly extending printing duration due to increased internal material deposition. Optimizing the balance between shells and infill allows for efficient print time management while maintaining structural integrity and surface finish.
Material Usage: Shells Versus Infill Efficiency
Shells in 3D printing consist of the outer layers that define the model's surface, using denser material to ensure strength and surface quality. Infill fills the interior, often with a sparse pattern, optimizing material usage while maintaining structural integrity. Balancing shells and infill maximizes efficiency by minimizing material consumption without compromising part durability.
Shell Thickness: When to Opt for More Layers
Increasing shell thickness enhances the structural integrity and surface durability of 3D prints, making it essential for functional parts subjected to mechanical stress or wear. Thicker shells improve layer bonding and help prevent issues like delamination and warping in complex geometries or large-scale models. Opting for more shell layers is particularly beneficial when print strength, impact resistance, or airtightness is critical to the final application.
Best Infill Percentage for Durability
For optimal durability in 3D printing, an infill percentage of 20-40% strikes a balance between strength and material efficiency. Increasing shells to 3-5 layers enhances outer wall rigidity, while higher infill densities above 50% provide maximum toughness for load-bearing parts. Choosing the right infill pattern such as grid or gyroid also contributes significantly to overall print durability.
Aesthetic Differences: Outer Shells vs Internal Infill
Outer shells in 3D printing directly influence surface smoothness, defining the model's visible texture and detailing, while internal infill contributes minimally to aesthetics but significantly impacts structural integrity. A higher number of shells enhances the print's finish quality by providing a robust and clean exterior, whereas infill density controls weight and strength without affecting surface appearance. Balancing shell thickness and infill patterns ensures optimal visual appeal and mechanical performance for detailed 3D printed objects.
Optimizing Shells and Infill for Cost-Effective Printing
Optimizing shells and infill in 3D printing balances strength and material cost by adjusting shell thickness and infill density to match part requirements. Thicker shells enhance surface durability and impact resistance, while lower infill percentages reduce material usage and print time. Selecting the right combination based on functional needs ensures cost-effective prints without compromising structural integrity.
Advanced Applications: Customizing Shells and Infill for End-Use Parts
Customizing shells and infill in 3D printing enables precise control over mechanical strength, weight, and material usage for end-use parts. Advanced applications leverage variable shell thickness and tailored infill patterns, such as gyroid or hexagonal, to optimize durability and flexibility based on specific functional requirements. This approach enhances performance in aerospace, automotive, and medical implants by balancing structural integrity with lightweight design.

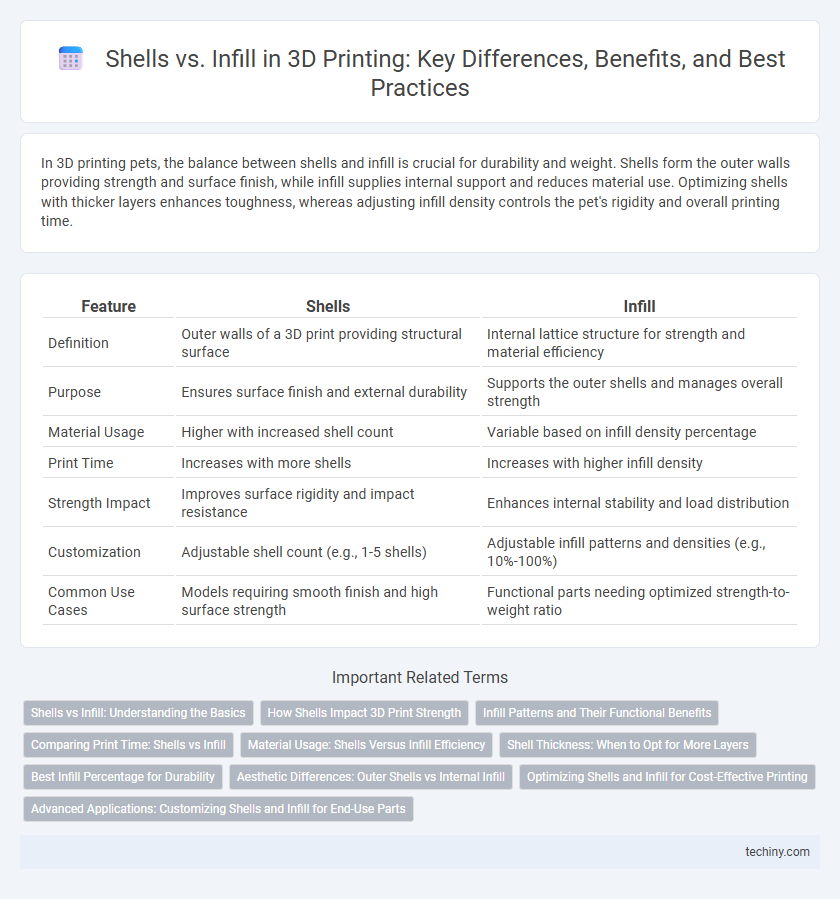

Shells vs Infill Infographic
