techiny.com Support structures provide essential stability for complex 3D printed pet models by preventing sagging or collapse during the printing process. Bridging allows for printing across gaps without support by creating strong, self-supporting layers, ideal for lightweight and detailed pet features. Choosing between support structures and bridging depends on the pet model's geometry, material, and desired surface finish.
Table of Comparison
| Aspect | Support Structures | Bridging |
|---|---|---|
| Definition | Temporary scaffolds that prevent overhang collapse during printing. | Technique of printing across gaps without support underneath. |
| Use Case | Used for complex geometries with steep overhangs over 45deg. | Effective for short horizontal spans and small gaps. |
| Material Consumption | Higher due to additional support material. | Lower, as no extra material is required. |
| Post-Processing | Requires removal, sanding or finishing to smooth surfaces. | Minimal, as no support structures are added. |
| Print Time | Increases total print time due to support geometry. | Reduces print time by eliminating supports. |
| Surface Quality | May leave marks and rough surfaces after removal. | Generally cleaner surfaces over bridged areas. |
| Printer Settings | Requires specific settings for support generation and adhesion. | Needs careful tuning of speed and cooling for successful bridging. |
| Limitations | Support removal can be difficult; risk of damaging prints. | Limited by span length and printer capabilities. |
Understanding Support Structures in 3D Printing
Support structures in 3D printing are essential for ensuring the successful fabrication of overhangs and complex geometries by providing temporary scaffolding that prevents sagging and deformation during the printing process. These structures are typically made from the same or soluble materials and are removed after printing, minimizing damage to the final object and improving surface quality. Understanding the optimal placement, density, and removal methods of support structures enhances print reliability, reduces material usage, and accelerates post-processing time.
What Is Bridging in 3D Printing?
Bridging in 3D printing refers to the process where the printer extrudes filament across a gap between two points without support underneath, creating a horizontal span or "bridge." Effective bridging depends on precise cooling settings and optimal print speed to prevent sagging or drooping of the filament during deposition. Unlike support structures, which provide physical scaffolding for overhanging sections, bridging relies on the filament's ability to solidify mid-air, enabling cleaner prints with less material use and post-processing.
Key Differences: Support Structures vs. Bridging
Support structures are temporary scaffolds printed to uphold overhanging parts, preventing sagging or collapse during the 3D printing process. Bridging, on the other hand, involves printing filament across gaps without any support, relying on precise extrusion and cooling to span open spaces effectively. The key difference lies in support structures providing physical backing, whereas bridging depends on material properties and printer accuracy to create stable horizontal spans.
Advantages of Using Support Structures
Support structures enhance print stability by providing necessary reinforcement for overhangs and complex geometries, preventing sagging and deformation. They enable the creation of intricate designs that would be impossible to print using bridging alone, ensuring greater accuracy and surface quality. Efficient support removal techniques minimize post-processing time, making support structures a practical solution for advanced 3D printing projects.
Benefits of Bridging for Complex Prints
Bridging in 3D printing offers significant advantages for complex prints by minimizing the need for support structures, which reduces material waste and post-processing time. Effective bridging enhances print quality by eliminating scars or marks often caused by support removal, resulting in smoother surfaces and more precise overhangs. This technique also improves print efficiency, enabling faster production and greater design freedom when creating intricate geometries.
Common Challenges with Support Structures
Support structures in 3D printing often present challenges such as difficulty in removal, surface blemishes, and increased material usage, which can compromise the final print quality. Unlike bridging, which relies on precise calibration to span gaps without additional material, support structures demand complex design considerations to avoid sagging or deformation in overhangs. Managing support placement and minimizing contact points are essential strategies to reduce post-processing time and improve print aesthetics.
Limitations and Issues with Bridging
Bridging in 3D printing often faces limitations such as sagging and poor surface quality due to insufficient cooling and material drooping across gaps. Unlike support structures that provide physical reinforcement, bridging relies heavily on printer speed, cooling efficiency, and filament type to achieve successful overhangs. Consequently, complex geometries with long unsupported spans frequently result in print defects, underscoring the need for optimized printer settings or supplemental support structures.
When to Use Support Structures vs. Bridging
Support structures are essential for overhangs exceeding 45 degrees or complex geometries where unsupported layers risk sagging or detachment during 3D printing. Bridging is effective for short gaps typically under 10-15 mm, allowing the printer to span open spaces without additional material support. Choosing between support structures and bridging depends on overhang angle, gap distance, and material properties to ensure print stability and surface quality.
Optimizing Print Settings for Supports and Bridges
Optimizing print settings for support structures and bridging requires adjusting layer height, print speed, and cooling settings to ensure stability and surface quality. Fine-tuning support density and overhang angles minimizes material usage while maintaining adequate support, preventing sagging or warping during bridging. Proper calibration of extrusion temperature and fan speed enhances filament adhesion and solidification, resulting in cleaner bridges and easier support removal.
Future Innovations: Supports and Bridging in 3D Printing
Future innovations in 3D printing will enhance support structures with smart, biodegradable materials that minimize waste and post-processing time. Advanced bridging techniques will leverage real-time monitoring and adaptive printing speeds to improve overhang quality without additional supports. These developments aim to increase print efficiency, reduce material usage, and expand design complexity across multiple industries.

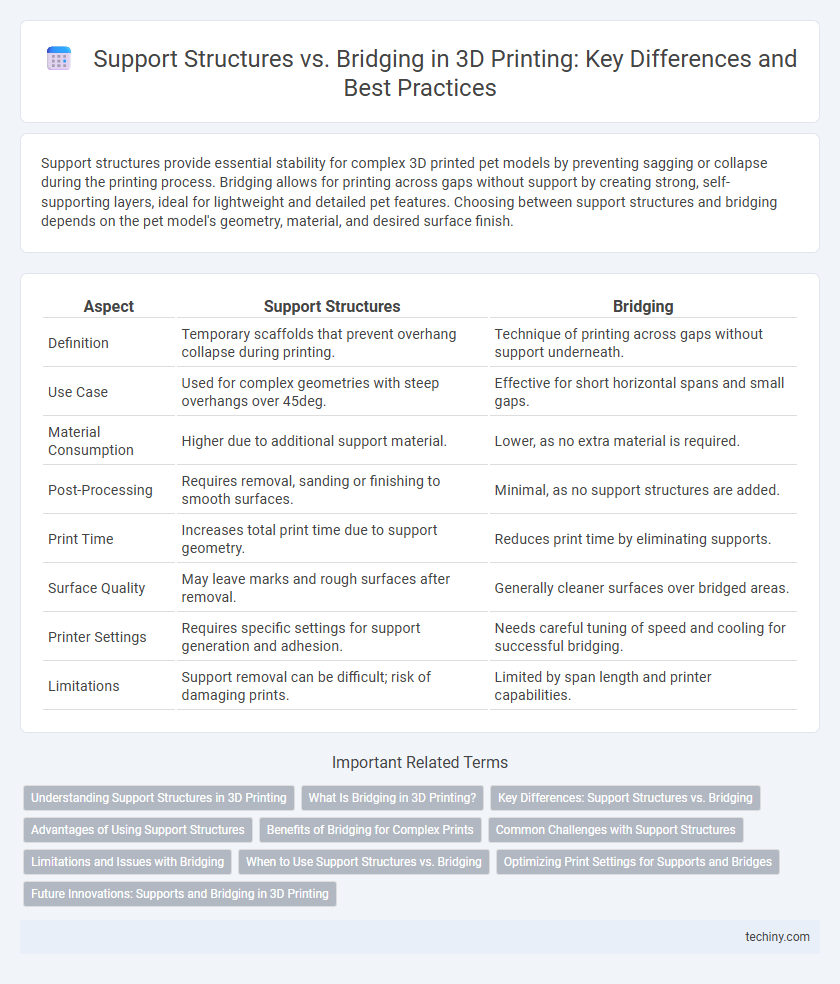

Support Structures vs Bridging Infographic
