techiny.com Understanding the balance between support and overhang is crucial in 3D printing for pets because excessive support structures can increase print time and material waste, while inadequate support leads to poor surface quality and potential print failure. Optimizing the angle and placement of overhangs reduces the need for supports, ensuring smoother finishes and stronger print integrity in pet-related models. Proper calibration of these elements enhances detail accuracy and durability in customized pet accessories or figurines.
Table of Comparison
| Aspect | Support | Overhang |
|---|---|---|
| Definition | Temporary structures built to support complex 3D prints. | Angles of a print extending beyond the previous layer without support. |
| Purpose | Prevent sagging or collapse in overhang regions. | Test print capability of steep angles without additional material. |
| Material Usage | Increases material consumption and print time. | No extra material used beyond the part itself. |
| Print Complexity | Requires careful placement and removal planning. | Depends on printer capability and design limits. |
| Post-Processing | Supports must be removed, possibly leaving marks. | No removal needed; smoother surface possible. |
| Ideal Use | For complex geometries with steep angles exceeding printer limits. | For moderate angles typically under 45deg, depending on material. |
Understanding Supports and Overhangs in 3D Printing
Supports in 3D printing are temporary structures that prevent overhangs from sagging or collapsing during the build process, especially when angles exceed 45 degrees. Overhangs refer to parts of a model extending outward without underlying material, requiring careful design or support to ensure print quality. Proper adjustment of support density and placement optimizes material usage and surface finish, directly impacting the final print's structural integrity and detail accuracy.
Why Overhangs Present Challenges
Overhangs in 3D printing present challenges due to the lack of underlying layers to support the extruded material, causing potential sagging or deformation. When the angle exceeds the printer's critical overhang threshold, typically around 45 degrees, gravity causes the filament to droop, resulting in poor surface quality and structural weaknesses. Properly designed support structures counteract these effects by stabilizing overhangs during the printing process, ensuring dimensional accuracy and strength.
Types of Support Structures in 3D Printing
Support structures in 3D printing are essential for managing overhangs and preventing print failure, with common types including tree supports, grid supports, and linear supports. Tree supports use branching patterns to minimize material usage and facilitate easier removal, while grid supports create a dense lattice for maximum stability in complex prints. Linear supports provide simple vertical columns, optimal for straightforward geometries but potentially harder to remove without surface damage.
Design Considerations for Overhang Angles
Overhang angles in 3D printing significantly influence the need for support structures, with angles exceeding 45 degrees typically requiring additional support to prevent print failures. Designing models with gentle overhangs or incorporating self-supporting geometries can reduce material waste and post-processing time. Optimizing overhang angles enhances print quality by minimizing sagging and layer deformation during the fabrication process.
Material Impacts on Support and Overhang Performance
Material selection critically impacts support and overhang performance in 3D printing, as different materials exhibit varying thermal properties, adhesion strengths, and cooling rates that influence print stability. For example, PLA's low warping and good layer adhesion reduce the need for extensive supports on overhangs, while ABS requires robust supports due to higher shrinkage and warping tendencies. Flexible and composite filaments often demand customized support structures because their unique mechanical properties affect how well overhangs maintain shape without deformation during printing.
Removing Supports: Techniques and Best Practices
Removing supports in 3D printing requires precise techniques such as using pliers, flush cutters, or specialized scrapers to prevent damaging the print surface. Applying heat or soaking the model in warm water can soften supports made from soluble materials like PVA, facilitating cleaner removal. Optimal support removal minimizes post-processing time and preserves print quality, especially in complex geometries with extensive overhangs.
Optimizing Overhangs for Minimal Support
Optimizing overhang angles in 3D printing to be less than 45 degrees significantly reduces the need for support structures, minimizing material waste and post-processing time. Adjusting print orientation and using bridging techniques enhances overhang stability without additional supports. Advanced slicer settings like adaptive support generation further refine support placement, improving print quality while conserving resources.
Software Solutions for Support Generation
Advanced 3D printing software solutions utilize intelligent algorithms to generate optimal support structures for complex overhangs, minimizing material usage and print time. These tools analyze model geometry to predict stress points and automatically create customized supports that ensure print stability without compromising surface quality. Integration of AI-driven support generation enhances precision and reduces manual intervention, improving overall printing efficiency.
Comparing Supportless Versus Supported Printing
Supportless 3D printing relies on optimizing print orientation and design to minimize or eliminate the need for additional support structures, reducing material usage and post-processing time. Supported printing uses scaffold-like supports to stabilize overhangs and complex geometries, ensuring print accuracy but increasing material consumption and cleanup efforts. Comparing the two methods, supportless printing excels in efficiency and surface finish, while supported printing offers greater freedom for intricate designs and complex overhangs.
Future Innovations in Support and Overhang Technology
Future innovations in 3D printing will revolutionize support and overhang technologies by integrating smart materials that dissolve on demand, reducing post-processing time and waste. Advanced AI-driven slicing algorithms will optimize support structures for minimal material use while maintaining print stability, enabling more complex geometries with fine overhangs. Development of adaptive support systems that respond dynamically to real-time print conditions promises to enhance precision, printing speed, and surface quality in next-generation additive manufacturing.

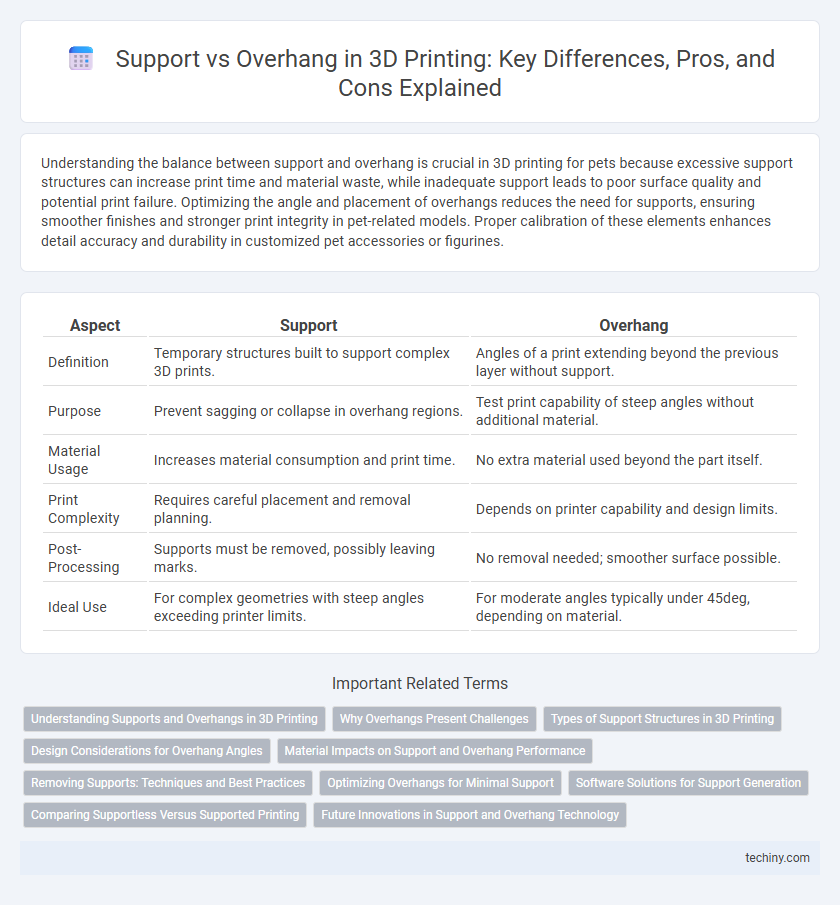

Support vs Overhang Infographic
