techiny.com Optical see-through displays allow users to view digital content superimposed directly onto the real world through transparent lenses, maintaining natural depth perception and real-time interaction. Video see-through displays capture the environment using cameras and then composite digital elements onto the video feed, offering greater control over visual effects but often introducing latency and reduced immersion. Choosing between these AR display types depends on the specific application requirements for clarity, responsiveness, and user experience.
Table of Comparison
| Feature | Optical See-through Display (OST) | Video See-through Display (VST) |
|---|---|---|
| Display Technology | Transparent lenses overlay digital content onto real-world view | Camera captures real-world, digital content composited before display |
| Latency | Low latency, near real-time visual alignment | Higher latency due to video processing and compositing |
| Image Quality | Crystal-clear real-world view with high light transmission | Dependent on camera quality; may have lower resolution and color accuracy |
| Field of View (FOV) | Typically larger FOV, enhancing immersion | Often smaller FOV limited by camera and display hardware |
| Depth Perception | Natural depth cues preserved via direct view | Limited depth perception due to 2D video feed |
| Power Consumption | Generally lower due to passive optics | Higher due to continuous video capture and processing |
| Use Cases | Medical, industrial, and outdoor AR requiring real-world clarity | Gaming, indoor AR, and situations needing full control over visuals |
Introduction to Augmented Reality Displays
Optical see-through displays project virtual images onto transparent lenses, allowing users to directly view the real world with augmented content overlaid, preserving natural depth perception and immediate interaction. Video see-through displays capture the real environment with cameras and then blend virtual elements into the video feed before displaying it on a screen, offering advanced image processing but potentially introducing latency and reduced visual fidelity. Both technologies serve as fundamental AR display methods, each balancing real-world visibility and augmentation quality in applications like medical visualization, industrial maintenance, and navigation.
Defining Optical See-through (OST) Displays
Optical See-through (OST) displays enable users to view the real world directly through transparent lenses while digital content is overlaid, maintaining natural light and accurate depth perception. Unlike Video See-through displays that rely on cameras to capture and then display the environment, OST systems preserve the user's peripheral vision and reduce latency for a more seamless augmented reality experience. Key components include waveguides or transparent combiners that project virtual images without obstructing the real-world view.
Understanding Video See-through (VST) Displays
Video See-through (VST) displays capture the real environment through external cameras and merge it with computer-generated imagery before presenting the combined view to the user. This approach enables precise image processing and augmentation but may introduce slight latency and reduce natural peripheral vision compared to optical see-through displays. VST displays excel in scenarios requiring complex visual overlays and accurate occlusion handling, enhancing immersion in augmented reality applications.
Core Technology Comparison: OST vs VST
Optical See-through (OST) displays use transparent waveguides or combiner lenses to overlay digital images directly onto the user's real-world view, enabling real-time depth perception and natural light transmission. Video See-through (VST) displays rely on cameras capturing the surroundings and digitally fusing virtual content into the live feed on opaque screens, resulting in potential latency and limited peripheral vision. OST excels in low-latency, high-fidelity spatial awareness, while VST offers greater flexibility in image processing and occlusion handling due to its fully digital pipeline.
Image Quality and Visual Fidelity
Optical see-through displays offer superior visual fidelity by allowing natural light to pass through, preserving real-world brightness and color accuracy while overlaying digital content with minimal latency. Video see-through displays capture the environment using cameras and then display it on screens, which can cause reduced image quality due to sensor limitations, compression artifacts, and latency issues. The key trade-off lies in optical see-through's better image clarity and eye accommodation versus video see-through's ability to fully control and augment the entire visual field.
User Experience and Interaction Differences
Optical See-through Displays (OST) enable users to perceive the real world directly through transparent lenses, offering natural spatial awareness and seamless interaction with physical environments, though they often suffer from limited brightness and contrast in complex lighting. Video See-through Displays (VST) capture the surroundings via cameras and present a composite video feed, allowing for precise augmented content alignment and advanced image processing but introducing latency and a less immersive, screen-mediated user experience. The trade-offs between OST's low latency and natural view versus VST's higher fidelity overlays and interaction flexibility critically shape user engagement and task effectiveness in augmented reality applications.
Latency, Performance, and Real-Time Processing
Optical see-through displays offer lower latency due to direct real-world view projection, enhancing real-time interaction but may face challenges in precise digital overlay alignment. Video see-through displays provide superior image processing performance by capturing and rendering the environment digitally, enabling advanced computer vision techniques at the cost of increased latency from video capture and processing pipelines. Real-time processing in video see-through systems supports complex augmentations with higher computational demands, whereas optical see-through systems prioritize minimal delay for seamless user experience.
Use Cases and Industry Applications
Optical See-through Displays are ideal for industries like healthcare and manufacturing, allowing users to maintain direct view of the real world with digital overlays, enhancing surgical precision and assembly line efficiency. Video See-through Displays are preferred in training simulations and remote collaboration, providing immersive, fully controllable augmented environments crucial for aviation pilot training and virtual meetings. Both display types enable diverse AR applications, tailoring user experiences to specific industry needs by balancing transparency and immersion.
Challenges and Limitations of Each Display Type
Optical see-through displays face challenges such as limited brightness and contrast in bright environments, along with difficulties in accurately aligning virtual and real-world objects due to parallax errors. Video see-through displays confront latency issues that can cause motion sickness and reduce immersion, as well as lower image resolution and limited field of view impacting user experience. Both display types struggle with achieving seamless integration of virtual content with the real world, hindering the overall effectiveness of augmented reality applications.
Future Trends in AR Display Technology
Optical see-through displays are evolving to incorporate advanced waveguide technology and holographic optics, enabling lighter, more transparent, and energy-efficient AR glasses that seamlessly blend virtual content with the real world. Video see-through displays are advancing through improvements in high-resolution cameras, low-latency processing, and AI-driven environments for precise occlusion and real-time interaction, enhancing immersive experiences for complex applications like industrial training and medical visualization. Future trends in AR display technology emphasize hybrid systems combining optical and video see-through advantages to deliver superior depth perception, field of view, and user comfort across various use cases.

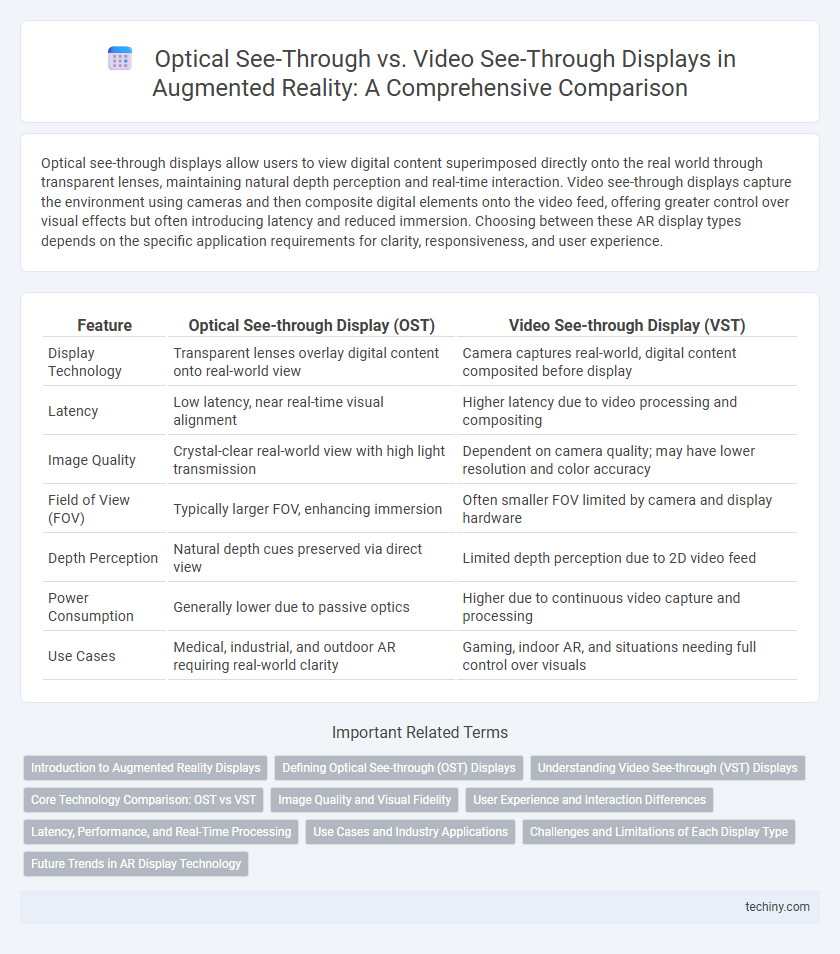

Optical See-through Display vs Video See-through Display Infographic
