techiny.com Pass-through AR uses external cameras to capture the real world and display it on a screen with digital overlays, offering immersive visuals but limited real-time depth perception. See-through AR employs transparent displays or lenses, allowing users to view the real environment directly while augmenting it with digital content, resulting in a more natural interaction. Both technologies enhance augmented reality experiences, but pass-through prioritizes immersion, while see-through emphasizes seamless integration.
Table of Comparison
| Feature | Pass-through AR | See-through AR |
|---|---|---|
| Display Type | Camera feed through opaque screen | Transparent lenses overlay digital content |
| Immersion | High immersion via full field video | Moderate immersion with partial digital overlay |
| Field of View (FOV) | Wide FOV, limited by camera and display | Generally narrower FOV depending on optics |
| Visual Quality | Realistic environment rendering, potential latency | Real-world view with augmented digital elements |
| Hardware Complexity | Requires high-resolution cameras and displays | Needs advanced transparent optics and waveguides |
| Power Consumption | Higher due to video processing | Lower, as digital overlays consume less power |
| Use Cases | Full environment interaction, VR-AR hybrid | Hands-free information, real-time contextual data |
| User Comfort | Potential motion sickness from video delay | Natural vision augmented, less discomfort |
Introduction to Augmented Reality: Pass-through vs See-through
Pass-through AR uses external cameras to capture real-world images, displaying them on a screen integrated into the headset, enabling enhanced digital overlays with full environmental control. See-through AR employs transparent lenses that allow users to directly view the surrounding environment while superimposing digital content, offering a more natural and immersive experience. Both technologies provide unique interaction methods and visual experiences critical for applications ranging from industrial training to consumer entertainment.
Defining Pass-through AR: How It Works
Pass-through AR captures the real-world environment using external cameras and displays the live video feed on a screen inside the headset, allowing virtual objects to be overlaid onto the video feed. This technology relies on high-resolution cameras, real-time image processing, and sensors to track the user's head movement, ensuring accurate alignment of digital content with the physical surroundings. Pass-through AR provides immersive experiences without requiring transparent displays, often resulting in higher image quality and better control over visual effects compared to see-through AR.
Understanding See-through AR: Core Principles
See-through AR utilizes transparent displays or optical waveguides to overlay digital content directly onto the user's real-world view, maintaining natural perception while enhancing it with virtual elements. Core principles include preserving spatial awareness through precise alignment of virtual objects with the physical environment and minimizing visual obstruction to ensure seamless integration. This technology relies heavily on advanced optics and real-time tracking to deliver an immersive yet unobtrusive augmented reality experience.
Key Hardware Differences: Cameras vs Optical Displays
Pass-through AR relies on external cameras to capture the real-world environment, which is then displayed on internal screens, providing a fully digital view enhanced with virtual elements. See-through AR utilizes transparent optical displays, such as waveguides or holographic lenses, allowing users to see the real world directly while digital content is projected onto the lenses. Key hardware differences include the dependence on high-resolution cameras and display panels in pass-through AR versus the sophisticated optical light guides and semi-transparent displays essential for see-through AR.
User Experience: Immersion and Realism Compared
Pass-through AR leverages external cameras to present a fully digital overlay on live video feeds, enhancing immersion through high-fidelity visuals but sometimes causing latency or reduced depth perception. See-through AR utilizes transparent displays to blend digital content directly into the user's view of the real world, preserving natural depth cues and immediate spatial awareness but often with lower visual fidelity. User experience in pass-through AR prioritizes visual realism and environmental interaction via comprehensive digital reconstruction, whereas see-through AR focuses on seamless integration and real-world context maintaining continuous situational awareness.
Field of View and Visual Fidelity Analysis
Pass-through AR offers a wider field of view by utilizing external cameras to capture the real environment, enabling more comprehensive virtual overlays, while see-through AR relies on transparent displays that typically have a limited field of view due to optical constraints. Visual fidelity in pass-through AR can be higher because it leverages high-resolution camera inputs and advanced image processing, whereas see-through AR may suffer from reduced brightness and contrast as virtual elements are projected onto translucent surfaces. Evaluating these platforms involves balancing the immersive experience of pass-through AR's extensive coverage against the natural, real-world integration afforded by see-through AR's direct optical transparency.
Interaction Methods: Hand Tracking, Controllers, and Beyond
Pass-through AR leverages external cameras to capture and display the real world, enabling seamless integration of virtual elements while supporting advanced interaction methods like hand tracking and physical controllers for intuitive user engagement. See-through AR utilizes transparent displays to overlay digital content directly onto the user's view, often relying on hand tracking and gesture recognition but typically offering limited controller support due to its design constraints. Emerging interaction techniques such as eye tracking and voice commands are enhancing both pass-through and see-through AR experiences, driving more natural and immersive user interactions.
Safety and Ergonomics: Considerations for Each Approach
Pass-through AR offers enhanced safety by providing a full video feed of the surroundings, reducing the risk of collisions in complex environments. See-through AR maintains natural spatial awareness through transparent displays, promoting ergonomic comfort and minimizing eye strain during prolonged use. Each approach balances visual immersion and user safety, with pass-through AR excelling in hazardous settings and see-through AR favoring natural interaction and comfort.
Current and Future Applications: Industry Use Cases
Pass-through AR leverages external cameras to display a digital overlay on live video feeds, making it ideal for industrial training, remote assistance, and quality control in manufacturing settings. See-through AR uses transparent displays to overlay digital information onto the real world, enabling hands-free navigation, maintenance, and assembly tasks in automotive and aerospace industries. Future applications anticipate enhanced collaboration in construction, healthcare diagnostics, and complex equipment repair by combining high-fidelity visuals with real-time data integration.
Choosing the Right AR Type: Factors and Recommendations
Pass-through AR offers full environmental immersion by using cameras to display real-world surroundings with digital overlays, ideal for spatial awareness and safety in complex tasks. See-through AR, utilizing transparent displays, enables direct view of the environment with subtle augmentation, preferable for continuous situational monitoring and natural interaction. Selecting between these AR types depends on factors like application context, user mobility, required field of view, and the need for environmental feedback or immersion depth.

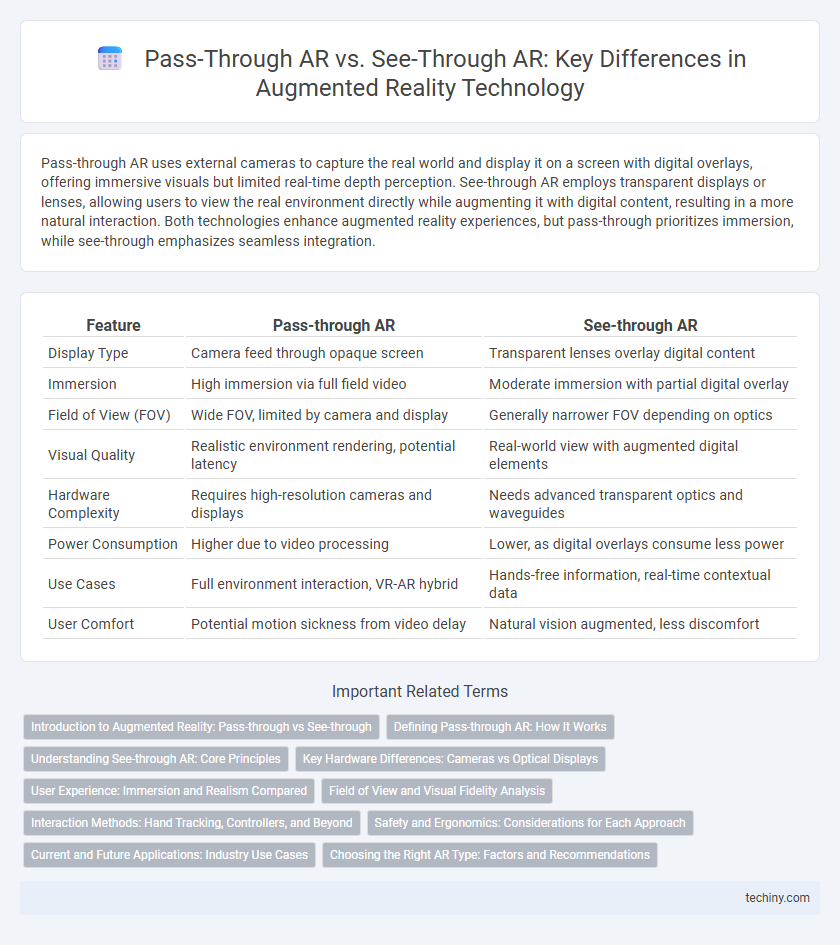

Pass-through AR vs See-through AR Infographic
