techiny.com Ball Grid Array (BGA) packages use solder balls on the underside of the chip to create electrical connections, offering superior heat dissipation and higher pin density compared to Land Grid Array (LGA) packages, which rely on flat contact pads. BGA's robust mechanical and thermal performance makes it ideal for high-frequency and high-performance applications, while LGA provides easier reworkability and improved signal integrity for specific integration environments. Choosing between BGA and LGA depends on balancing assembly complexity, thermal management needs, and the required electrical performance in hardware engineering projects.
Table of Comparison
| Feature | Ball Grid Array (BGA) | Land Grid Array (LGA) |
|---|---|---|
| Contact Type | Solder balls | Flat metal lands |
| Mounting Method | Surface-mount soldering | Socket connection |
| Signal Integrity | Excellent, minimal inductance | Good, but higher inductance than BGA |
| Thermal Performance | Superior heat dissipation | Moderate heat dissipation |
| Repairability | Difficult to rework or replace | Easy to replace and upgrade |
| Typical Usage | High-density, compact devices | Servers, workstations requiring socketed CPUs |
| Mechanical Strength | High resistance to shock and vibration | Lower mechanical robustness |
| Cost | Lower manufacturing cost | Higher due to socket complexity |
Introduction to Ball Grid Array (BGA) and Land Grid Array (LGA)
Ball Grid Array (BGA) and Land Grid Array (LGA) are advanced surface-mount packaging technologies used in hardware engineering for integrated circuits. BGA packages feature an array of solder balls on the underside, providing robust electrical connections and enhanced heat dissipation, which improves performance in high-density applications. LGA packages utilize flat contact pads without solder balls, relying on a socket or spring-loaded pins for connectivity, offering ease of replacement and reliable mechanical stability.
Structural Differences: BGA vs LGA
Ball Grid Array (BGA) packages feature solder balls arranged in a grid on the underside of the chip, providing excellent electrical performance and thermal conductivity due to direct solder connections. Land Grid Array (LGA) packages use flat contact pads on the chip's underside that connect to corresponding pins on the socket, enhancing mechanical stability and simplifying socket design. The structural difference impacts assembly processes, with BGA requiring precise soldering while LGA relies on pressure contacts, influencing repairability and heat dissipation characteristics.
Assembly and Manufacturing Techniques
Ball Grid Array (BGA) packaging uses solder balls on the component underside, enabling automatic reflow soldering and better heat dissipation in assembly processes. Land Grid Array (LGA) relies on flat contact pads, requiring precise pressure contacts or advanced soldering techniques to ensure reliable electrical connections during manufacturing. BGA's self-alignment capability reduces assembly defects, while LGA demands tighter mechanical tolerances but allows easier inspection and rework.
Electrical Performance Comparison
Ball Grid Array (BGA) packages generally provide superior electrical performance compared to Land Grid Array (LGA) due to shorter and more consistent signal path lengths, resulting in lower inductance and resistance. BGA's solder balls enable better signal integrity and reduced parasitic effects, which is critical for high-frequency and high-speed applications. Conversely, LGA packages, while offering ease of inspection and rework, often exhibit higher signal distortion and impedance variations due to their flat contact pad design.
Thermal Management: BGA vs LGA
Ball Grid Array (BGA) packages offer superior thermal management compared to Land Grid Array (LGA) due to their solder balls that provide efficient heat dissipation through the PCB. The direct contact of BGA solder balls with the circuit board allows better heat conduction and reduced thermal resistance, enhancing performance in high-power applications. In contrast, LGA packages rely on flat contact pads that may require additional cooling solutions to achieve comparable thermal performance.
Reliability and Mechanical Strength
Ball Grid Array (BGA) packages typically offer superior mechanical strength and reliability compared to Land Grid Array (LGA) due to their solder ball connections that provide better shock absorption and thermal cycling endurance. The spherical solder balls in BGA create robust electrical and mechanical bonds, reducing the risk of connection failure under stress or vibration. LGA packages rely on flat contact pads, which can be more susceptible to mechanical wear and less effective at maintaining stable connections over repeated thermal and mechanical cycling.
Applications in Modern Electronics
Ball Grid Array (BGA) technology is widely used in high-performance processors and memory modules due to its superior electrical and thermal performance, providing reliable connections in compact designs. Land Grid Array (LGA) is favored in server CPUs and high-end computing devices for its ease of socketed installation and strong mechanical stability. Modern electronics leverage BGA for mobile and consumer gadgets requiring miniaturization, while LGA suits desktop and enterprise systems demanding durable and scalable configurations.
Inspection and Testing Challenges
Ball Grid Array (BGA) presents inspection challenges due to hidden solder joints beneath the package, making traditional optical inspection ineffective and necessitating X-ray or tomographic imaging techniques. Land Grid Array (LGA) allows for easier visual inspection of contacts but poses testing difficulties in ensuring consistent pressure and alignment during socket interface testing, which can lead to contact reliability issues. Both packaging types require specialized testing methodologies tailored to their structural characteristics to ensure integrity and performance in hardware engineering.
Cost Analysis: BGA vs LGA
Ball Grid Array (BGA) packages typically incur higher initial tooling and manufacturing costs due to their complex solder ball attachment process and precise reflow requirements. Land Grid Array (LGA) offers cost advantages in assembly and rework because of its simpler socket design and ease of replacement without soldering. Cost analysis reveals BGA is more economical for high-volume production with superior electrical performance, whereas LGA is preferable for lower volume or applications demanding frequent maintenance.
Future Trends in IC Packaging Technologies
Future trends in IC packaging technologies emphasize increased adoption of advanced Ball Grid Array (BGA) designs due to superior thermal performance and higher I/O density compared to Land Grid Array (LGA) configurations. Innovations such as fan-out wafer-level packaging (FOWLP) and embedded multi-die interconnect bridge (EMIB) integration favor BGA substrates for enhanced signal integrity and miniaturization. Emerging materials and 3D stacking techniques further improve BGA scalability, making it the preferred choice for next-generation high-performance computing and mobile devices.

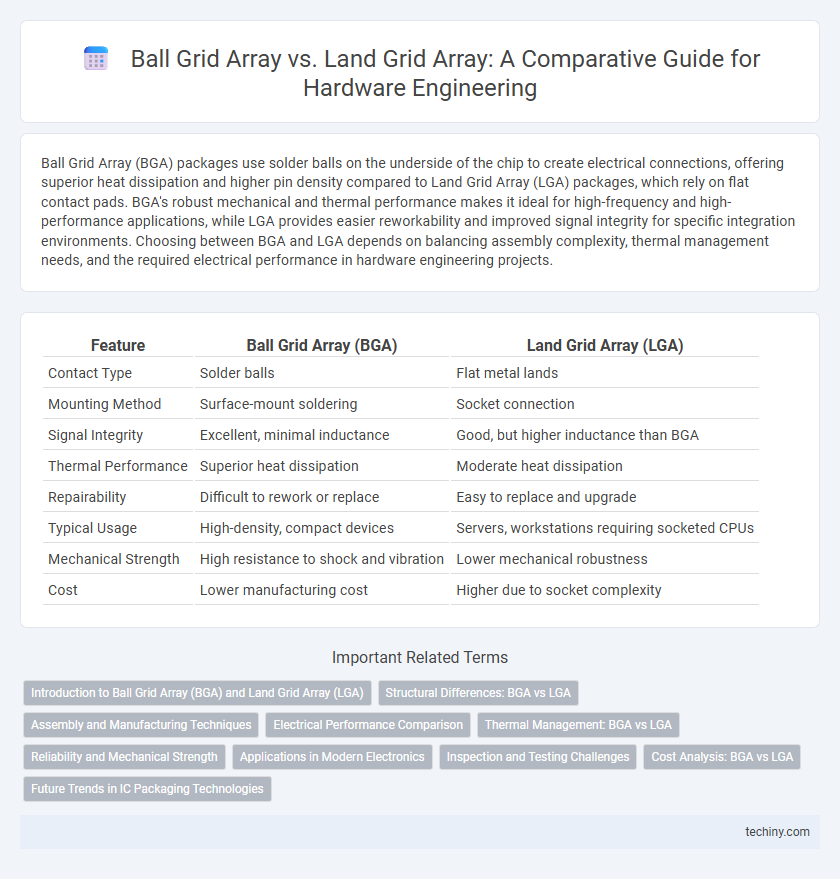

Ball Grid Array vs Land Grid Array Infographic
