techiny.com BJT and MOSFET are two fundamental types of transistors used in hardware engineering, each with distinct characteristics and applications. BJTs offer high current gain and are preferred in analog circuits requiring linear amplification, while MOSFETs have high input impedance and are more efficient in switching and digital circuits due to lower power consumption. Selecting between BJT and MOSFET depends on factors such as switching speed, power dissipation, and signal amplification requirements.
Table of Comparison
| Aspect | BJT (Bipolar Junction Transistor) | MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) |
|---|---|---|
| Type | Current-controlled device | Voltage-controlled device |
| Input Impedance | Low input impedance (kO range) | High input impedance (MO to GO range) |
| Switching Speed | Moderate switching speed | High switching speed |
| Power Consumption | Higher static power due to base current | Lower static power, negligible gate current |
| Thermal Stability | Lower thermal stability, prone to thermal runaway | Better thermal stability |
| Gain | High current gain (b) | Voltage gain depends on configuration |
| Applications | Analog amplification, linear circuits | Switching power supplies, digital circuits |
| Fabrication Complexity | Relatively simple | More complex due to oxide layer |
| Noise | Higher noise level | Lower noise level |
Introduction to BJT and MOSFET
Bipolar Junction Transistors (BJTs) are current-controlled devices that rely on the injection of charge carriers across a p-n junction to amplify signals, commonly used in analog circuits for their linear response. Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs) are voltage-controlled devices with insulated gates, offering high input impedance and fast switching capabilities, making them essential components in digital circuits and power electronics. Both BJT and MOSFET technologies are foundational in hardware engineering, each optimized for specific applications based on switching speed, power consumption, and signal amplification requirements.
Fundamental Operating Principles
Bipolar Junction Transistors (BJT) operate based on the injection and control of charge carriers through the base-emitter junction, leveraging both electrons and holes, which enables current amplification. Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFET) function by modulating the conductivity of a semiconductor channel via an electric field applied to the gate terminal, relying primarily on majority carriers for switching. BJTs exhibit current-controlled behavior with higher transconductance, while MOSFETs are voltage-controlled devices offering high input impedance and low power consumption.
Key Structural Differences
Bipolar Junction Transistors (BJTs) consist of three layers of doped semiconductor material forming two p-n junctions, enabling current control through both electron and hole injection. Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs) feature a gate terminal insulated by a thin oxide layer over a semiconductor channel, controlling current flow via an electric field without gate current. The fundamental structural difference lies in BJT's bipolar conduction versus MOSFET's unipolar conduction, which affects switching speed, input impedance, and power consumption.
Input and Output Characteristics
Bipolar Junction Transistors (BJTs) exhibit current-driven input characteristics, requiring base current to control collector current, resulting in low input impedance. Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs) feature voltage-driven input with insulated gates, offering high input impedance and minimal gate current. Output characteristics differ as BJTs show steeper current gain but suffer from higher voltage drop, while MOSFETs provide high output impedance and faster switching speeds, ideal for amplification and digital circuits.
Switching Speed Comparison
BJT devices exhibit slower switching speeds due to charge storage effects in the base region, resulting in longer turn-off times compared to MOSFETs. MOSFETs offer faster switching speeds because their operation is majority-carrier-based, minimizing storage delay and enabling rapid transitions. This speed advantage makes MOSFETs preferable in high-frequency switching applications such as power converters and RF amplifiers.
Power Handling Capabilities
Bipolar Junction Transistors (BJTs) excel in high current applications due to their low saturation voltage, enabling efficient power dissipation in high-power circuits. Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs) offer superior switching speeds and lower on-resistance, making them ideal for high-frequency power conversion with lower heat generation. Power handling in MOSFETs improves significantly with advancements in fabrication technology, allowing them to rival BJTs in many high-power scenarios.
Thermal Stability and Efficiency
Bipolar Junction Transistors (BJTs) exhibit lower thermal stability compared to Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs) due to their positive temperature coefficient, which can lead to thermal runaway under high current conditions. MOSFETs demonstrate superior thermal stability with a negative temperature coefficient, allowing safer operation at elevated temperatures and enhancing overall device reliability. Efficiency-wise, MOSFETs generally achieve higher switching speeds and lower on-resistance, reducing conduction losses and improving power efficiency in hardware engineering applications.
Application Suitability in Circuits
BJT transistors are ideal for applications requiring high current gain and fast switching in analog circuits, such as amplifiers and low-frequency oscillators. MOSFETs excel in digital circuits and power devices due to their high input impedance and efficient switching at high frequencies. The choice between BJT and MOSFET depends on circuit parameters like voltage levels, power consumption, and switching speed requirements.
Cost and Availability
BJT devices generally offer lower initial costs and widespread availability due to mature manufacturing processes and long-standing market presence. MOSFETs, while often more expensive initially, benefit from increasingly scalable production and widespread use in modern digital circuits, improving availability over time. Cost-effectiveness between BJT and MOSFET varies based on application scale and performance requirements.
Future Trends in Device Adoption
Future trends in hardware engineering indicate an increasing adoption of MOSFETs due to their superior switching speed, higher efficiency, and scalability for advanced semiconductor technologies. BJTs remain relevant in specific analog and high-frequency applications because of their linearity and gain characteristics. Emerging devices like GaN and SiC transistors are expected to complement or replace traditional BJT and MOSFET technologies in power electronics, driven by demands for higher power density and thermal performance.

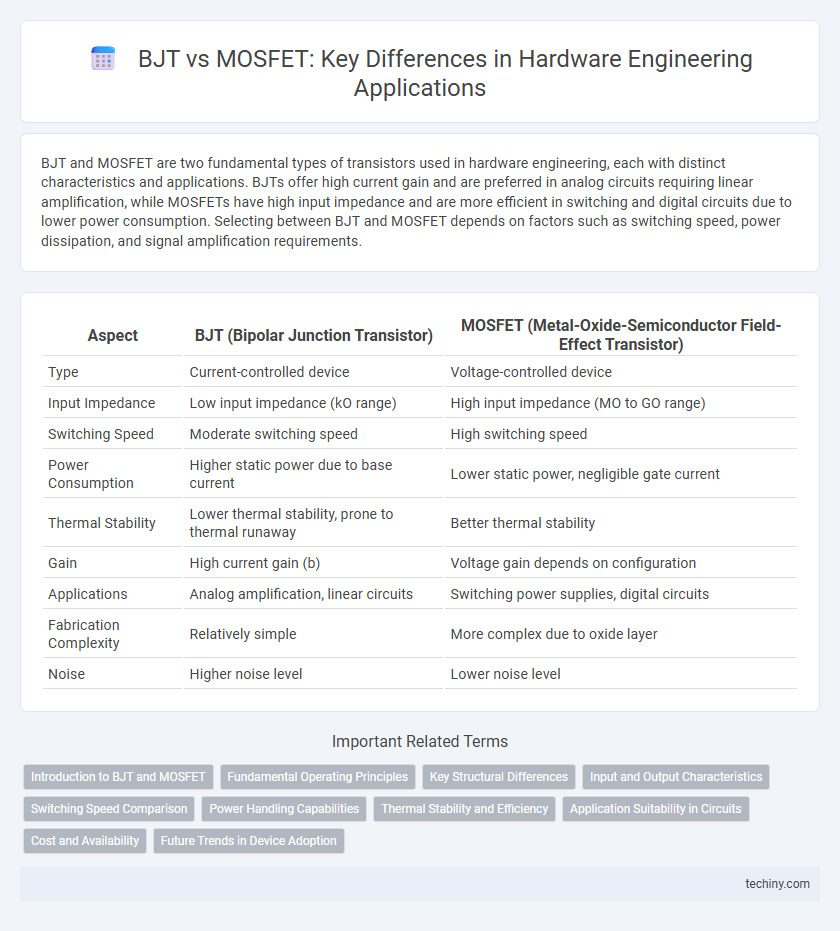

BJT vs MOSFET Infographic
