techiny.com Bus topology connects all devices to a single communication line, enabling simple and cost-effective hardware design but risking network failure if the main bus is damaged. Ring topology links devices in a closed loop, providing orderly data transmission and better fault isolation, though it requires more complex hardware and can be less efficient. Selecting between bus and ring topologies depends on factors such as network size, reliability needs, and hardware complexity.
Table of Comparison
| Feature | Bus Topology | Ring Topology |
|---|---|---|
| Structure | Single central cable (bus) connecting all devices | Devices connected in a closed loop, each connected to two others |
| Data Flow | Unidirectional or bidirectional along the bus | Unidirectional token passing |
| Fault Tolerance | Single point of failure; cable break stops entire network | Failure affects entire ring unless dual ring or bypass used |
| Scalability | Limited by bus length and signal degradation | Easily scalable by adding devices to the ring |
| Performance | Degrades with more devices due to collisions | Consistent performance via token passing control |
| Installation Cost | Low cost, less cabling required | Higher cost due to cabling and complexity |
| Use Cases | Small networks with minimal data traffic | Networks requiring orderly data transmission, e.g. MANs |
Introduction to Network Topologies
Bus topology connects all devices to a single central cable called the bus, facilitating simple and cost-effective communication but can suffer from data collisions and limited scalability. Ring topology arranges devices in a circular configuration where each node connects to exactly two others, enabling orderly token-passing for collision-free data transmission but increasing vulnerability to network failure if one node breaks. Both topologies serve specific networking needs in hardware engineering, balancing cost, performance, and fault tolerance.
Overview of Bus Topology
Bus topology features a single central cable, known as the bus or backbone, to which all network devices connect directly. Data signals travel bidirectionally along this shared medium, with terminators at each end to prevent signal reflection and interference. This layout offers simplified wiring and ease of installation but can suffer from data collisions and is less scalable compared to other topologies.
Overview of Ring Topology
Ring topology in hardware engineering connects each device to exactly two other devices, forming a circular data path that enables data to travel in one direction or both directions depending on the configuration. This topology enhances fault isolation since a break in the ring can disrupt the entire network unless a dual ring or bypass mechanisms are implemented. Compared to bus topology, ring topology offers organized data flow and reduced collision risks but requires more complex troubleshooting and higher installation costs.
Architecture Comparison: Bus vs Ring
Bus topology architecture features a single central communication line where all devices are connected, enabling straightforward data transmission but risking network failure if the bus line breaks. Ring topology architecture connects devices in a closed loop, allowing data to travel in one or both directions, which improves fault tolerance and reduces collision chances. Bus topology offers simpler implementation and lower costs, while ring topology provides better performance in handling high traffic through its token-passing protocol.
Data Transmission Methods
Bus topology transmits data by broadcasting signals along a single communication line, where each device monitors the bus for its address, enabling simple collision detection but limiting scalability and increasing collision risks. Ring topology sends data in a unidirectional or bidirectional loop, passing tokens or frames sequentially from one device to the next, ensuring orderly access and reducing collisions but imposing latency with larger networks. Data transmission in bus topology is contention-based, while ring topology employs token passing, optimizing deterministic communication and minimizing data collisions.
Scalability and Expansion
Bus topology offers straightforward scalability by allowing new devices to connect along a single communication line, making expansion simple but prone to signal degradation and collisions as more nodes are added. Ring topology provides better performance consistency during expansion since data travels in a unidirectional loop, but adding or removing devices requires temporarily breaking the ring, impacting network availability. Scalability in ring topology is limited by the increase in latency with each added node, whereas bus topology faces constraints in cable length and signal attenuation for large networks.
Fault Tolerance and Reliability
Bus topology offers limited fault tolerance since a single cable failure can disrupt the entire network, reducing reliability in hardware systems. Ring topology enhances fault tolerance by allowing data to circulate in one direction, and dual-ring configurations provide redundancy to maintain network integrity despite node failures. Reliability in ring topology is higher due to continuous data transmission paths and the ability to isolate faults without impacting overall network performance.
Cost Implications
Bus topology typically incurs lower initial costs due to minimal cabling requirements and straightforward installation, making it cost-effective for small networks. Ring topology involves higher expenses owing to increased cabling complexity and specialized hardware like token ring adapters, impacting overall implementation budgets. Maintenance costs for ring topology can further escalate because failures in a single node may disrupt the entire network, necessitating prompt and often costly repairs.
Use Cases and Applications
Bus topology is ideal for small networks or temporary setups where cost-effectiveness and simplicity are priorities, often used in early Ethernet implementations and small office environments. Ring topology suits environments requiring orderly data transmission and fault isolation, such as fiber distributed data interface (FDDI) and some metropolitan area networks (MANs). Industrial automation and token ring networks leverage ring topology for predictable network behavior and minimal data collision.
Choosing the Right Topology for Your Network
Bus topology offers simplicity and cost-effectiveness for small networks, with devices connected to a single central cable but can suffer from data collisions and limited scalability. Ring topology provides orderly data transmission and reduces collision risks by passing signals in a unidirectional loop, making it suitable for networks requiring consistent performance and reliability. Selecting the right topology depends on network size, budget, and performance requirements, with bus favored for minimal infrastructure and ring preferred for fault tolerance and predictable data flow.

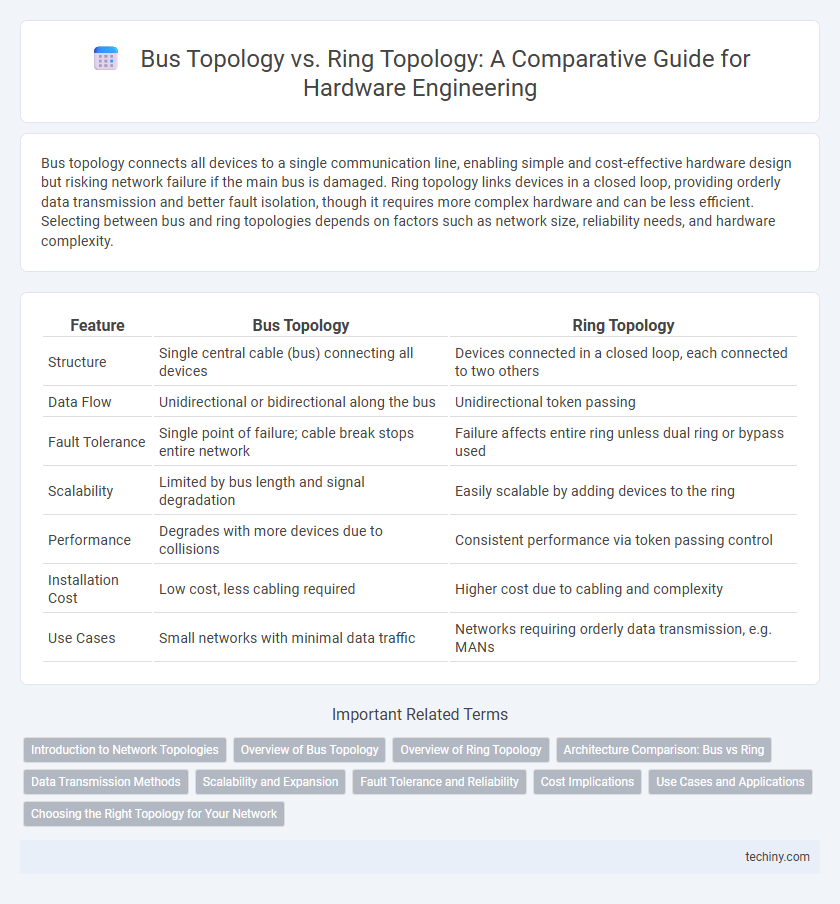

Bus topology vs Ring topology Infographic
