techiny.com Conformal coating provides a thin, protective polymer layer that shields electronic components from moisture, dust, and chemicals while maintaining flexibility and allowing heat dissipation. Potting involves encapsulating entire circuit boards in a solid or gel-like compound, offering superior mechanical protection and resistance to vibration and impact but increasing thermal insulation. Choosing between conformal coating and potting depends on environmental exposure, required durability, and thermal management needs in hardware engineering designs.
Table of Comparison
| Feature | Conformal Coating | Potting |
|---|---|---|
| Purpose | Provides thin protective layer on PCB | Encapsulates entire PCB in resin |
| Protection Level | Moderate protection against moisture, dust, chemicals | High protection against moisture, vibration, shock, chemicals |
| Thickness | 25-75 microns | Several millimeters |
| Repairability | Easy to rework or remove | Difficult or impossible to repair |
| Weight Addition | Minimal weight increase | Significant weight increase due to bulk resin |
| Thermal Management | Minimal impact on heat dissipation | Can improve thermal performance if thermally conductive potting used |
| Application Method | Spray, dip, brush | Pouring or molding |
| Common Materials | Acrylic, silicone, urethane, epoxy | Epoxy, silicone, polyurethane resins |
| Cost | Lower initial cost | Higher material and labor cost |
| Use Cases | Consumer electronics, light industrial | Harsh environments, military, automotive, aerospace |
Introduction to Conformal Coating and Potting
Conformal coating is a thin polymeric film applied to printed circuit boards (PCBs) to protect against moisture, dust, and chemical contaminants while maintaining electrical insulation and thermal stability. Potting involves encapsulating electronic assemblies in a solid or gel-like compound, providing robust mechanical protection, vibration damping, and enhanced environmental resistance. Both methods safeguard hardware components but differ in application thickness, flexibility, and repairability.
Key Differences Between Conformal Coating and Potting
Conformal coating is a thin, protective polymer layer that preserves circuit board flexibility while providing moisture, dust, and chemical resistance; potting involves encapsulating components in a thick resin for enhanced mechanical support and robust environmental protection. Conformal coating enables easier inspection and rework due to its minimal thickness, whereas potting creates a solid block that prevents access but offers superior vibration and shock absorption. The choice between conformal coating and potting hinges on specific requirements such as thermal management, mechanical stress tolerance, and serviceability in hardware engineering applications.
Material Types Used in Conformal Coating vs Potting
Conformal coatings typically use materials like acrylics, silicones, polyurethanes, and epoxy resins to provide a thin, protective layer over electronic components, ensuring flexibility and moisture resistance. Potting compounds involve materials such as epoxy resins, silicone, and polyurethane gels, which encapsulate the entire assembly for enhanced mechanical support and environmental protection. The choice between conformal coating and potting materials depends on factors like thermal management, electrical insulation, and application thickness requirements.
Protection Capabilities Against Environmental Factors
Conformal coating provides a thin, protective film that shields electronic components from moisture, dust, and chemical contaminants, ensuring functionality in moderately harsh environments. Potting offers a more robust encapsulation by fully immersing components in resin, delivering superior protection against vibration, shock, and extreme environmental conditions such as water immersion and high humidity. Both methods enhance durability, but potting excels in aggressive environments requiring maximum physical and environmental protection.
Application Methods: Conformal Coating vs Potting
Conformal coating is typically applied using brushing, spraying, or selective coating techniques that provide a thin, uniform protective layer over circuit boards, allowing easy rework and inspection. Potting involves encapsulating components completely in a thick resin or gel through pouring or dispensing methods, offering superior mechanical protection but limiting accessibility for repairs. Choosing between these application methods depends on the required protection level, environmental factors, and maintenance considerations in hardware engineering.
Impact on Thermal Management and Heat Dissipation
Conformal coating provides a thin, protective layer that minimally affects thermal conductivity, allowing efficient heat dissipation from components. Potting involves encapsulating electronics in a thick resin, which can impede thermal management by trapping heat and reducing heat transfer efficiency. Selecting between conformal coating and potting depends on the device's thermal requirements and the importance of maintaining effective heat dissipation pathways.
Repairability and Rework Considerations
Conformal coating offers easier repairability and rework since it can be selectively removed and reapplied without harming underlying components, unlike potting which encapsulates parts in solid resin making rework difficult and often destructive. Potting provides superior environmental protection and mechanical strength but at the cost of more complex and time-consuming repairs, typically requiring complete component replacement. Engineers must weigh the trade-offs between long-term protection and maintenance flexibility when selecting between conformal coating and potting for hardware assemblies.
Cost Comparison and Economic Implications
Conformal coating generally offers a lower initial cost compared to potting due to reduced material usage and simpler application processes, making it economically favorable for large-scale production with moderate environmental protection needs. Potting involves higher expenses stemming from substantial material consumption and longer curing times, but it provides superior protection against harsh mechanical and chemical conditions, potentially reducing long-term maintenance and replacement costs. Companies must weigh upfront material and labor costs of potting against repeated repair or failure risks associated with thinner conformal coatings to optimize overall lifecycle economic impact.
Industry Use Cases and Best Practices
Conformal coating is widely used in electronics industries for protecting printed circuit boards (PCBs) against moisture, dust, and corrosion while allowing for easy inspection and rework, making it ideal for applications in aerospace, automotive, and consumer electronics. Potting, on the other hand, provides robust protection by encapsulating entire assemblies in resin, offering superior resistance to mechanical stress, vibration, and chemical exposure, which is essential in harsh industrial environments such as heavy machinery, military, and marine electronics. Best practices recommend selecting conformal coating for lightweight, high-density PCBs requiring thermal management and potting for components subjected to severe mechanical impacts or where complete environmental sealing is critical.
Selecting the Right Solution for Your Hardware Design
Selecting the right protective method for hardware design hinges on the specific environmental challenges and maintenance requirements faced by the device. Conformal coating offers a thin, lightweight layer ideal for protection against moisture, dust, and temperature variations without hindering component access for repairs or inspections. Potting, on the other hand, provides robust mechanical support and superior protection against vibration, shock, and chemical exposure, making it suitable for harsh environments where long-term durability and sealing are critical.

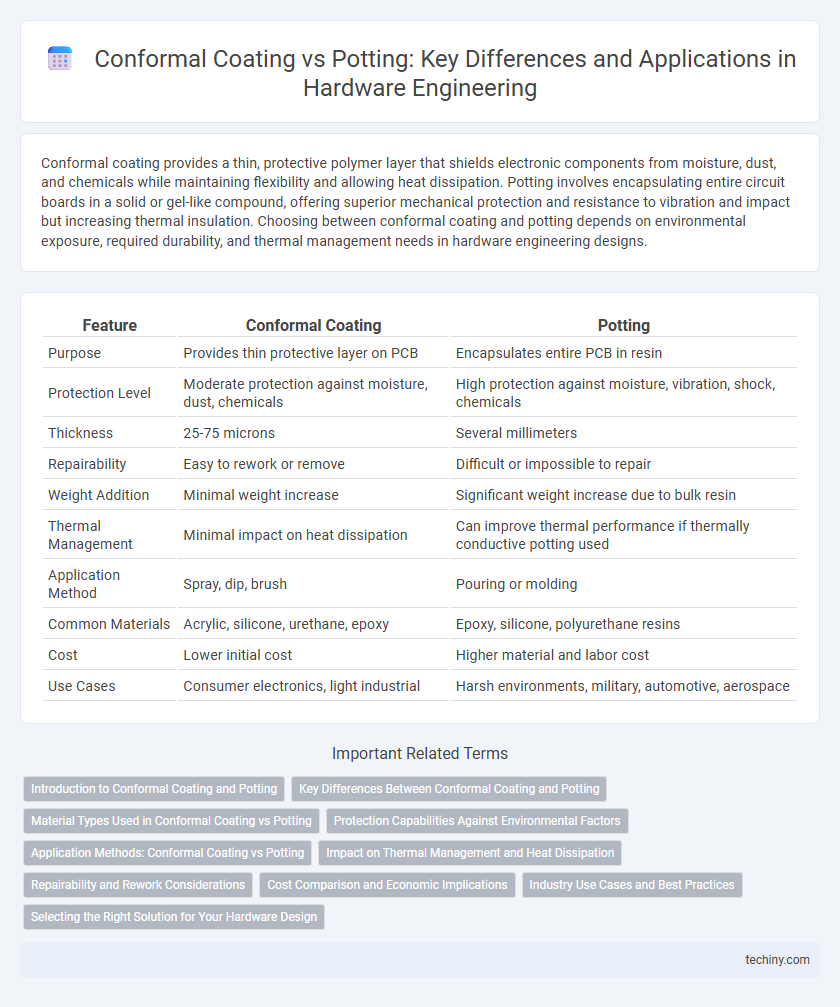

Conformal coating vs Potting Infographic
