DDR3 vs DDR4: Key Differences in Hardware Engineering Performance and Efficiency

DDR4 offers higher data transfer rates and improved energy efficiency compared to DDR3, making it ideal for modern computing demands. Its increased bandwidth and lower voltage requirements enable better performance and reduced heat generation in hardware systems. Despite DDR4 being more costly, its enhanced speed and reliability provide significant advantages for advanced applications.

Table of Comparison

Introduction to DDR3 and DDR4 Memory

DDR3 and DDR4 are types of synchronous dynamic random-access memory (SDRAM) used in computer systems to provide high-speed data storage and retrieval. DDR3 operates at lower clock speeds ranging from 800 to 2133 MHz and uses 1.5V power, while DDR4 offers higher speeds from 1600 to 3200 MHz with reduced voltage at 1.2V, resulting in improved performance and energy efficiency. The architectural advancements in DDR4, including increased bandwidth and lower power consumption, make it a preferred choice for modern hardware engineering applications requiring faster and more efficient memory solutions.

Key Architectural Differences

DDR3 memory operates at voltages around 1.5V while DDR4 reduces this to approximately 1.2V, leading to improved energy efficiency. DDR4 implements a higher prefetch buffer of 8n compared to DDR3's 4n, boosting data transfer rates and bandwidth. The introduction of bank groups in DDR4 enhances parallelism and reduces latency compared to DDR3's simpler bank architecture.

Speed and Bandwidth Comparison

DDR4 memory offers significantly higher speeds compared to DDR3, with typical frequencies ranging from 2133 MHz to 3200 MHz, while DDR3 operates between 800 MHz and 2133 MHz. The increased clock rates in DDR4 translate to greater bandwidth, reaching up to 25.6 GB/s at 3200 MHz, surpassing DDR3's maximum bandwidth of approximately 17 GB/s at 2133 MHz. Enhanced data transfer rates in DDR4 improve overall system performance, particularly in bandwidth-intensive applications like gaming and data processing.

Power Consumption and Efficiency

DDR4 memory operates at a lower voltage of 1.2V compared to DDR3's 1.5V or 1.35V in low-voltage variants, significantly reducing power consumption and heat generation in hardware systems. Enhanced power management features in DDR4, such as improved refresh cycles and finer voltage regulation, contribute to better energy efficiency, especially in large-scale, high-performance computing environments. This decreased power draw leads to longer battery life in mobile devices and reduced operational costs in data centers, making DDR4 a more energy-efficient choice over DDR3.

Compatibility and Motherboard Support

DDR4 memory modules utilize a different pin configuration and voltage standard compared to DDR3, resulting in incompatibility with DDR3-compatible motherboards. Modern motherboards designed for DDR4 feature updated chipsets and DIMM slots that do not support DDR3 RAM, ensuring optimal performance and stability. Users must verify motherboard specifications for supported DDR versions to avoid hardware conflicts and leverage system enhancements.

Performance Impact in Real-World Applications

DDR4 memory delivers up to 40% higher bandwidth and significantly lower power consumption compared to DDR3, directly enhancing performance in data-intensive applications like gaming and video editing. Real-world benchmarks show DDR4 reduces load times and improves multitasking efficiency due to faster clock speeds and improved latency. Systems leveraging DDR4 experience smoother frame rates and quicker data access, making it the preferred choice for high-performance hardware engineering projects.

Latency Differences Explained

DDR4 memory offers higher clock speeds and improved bandwidth compared to DDR3, but its increased prefetch buffer size results in slightly higher latency cycles. Despite DDR4's greater latency in nanoseconds per cycle, the overall throughput gains typically compensate, delivering enhanced system performance. Understanding the trade-offs between CAS latency and data transfer rates is critical for hardware engineers optimizing memory subsystem designs.

Cost Analysis: DDR3 vs DDR4

DDR3 memory modules generally offer lower upfront costs compared to DDR4, making them more budget-friendly for legacy hardware upgrades or cost-sensitive projects. DDR4, while more expensive, provides improved performance and energy efficiency, which can lead to cost savings in power consumption and system longevity over time. When evaluating total cost of ownership, DDR4's advanced features often justify the higher initial investment through better overall system performance and reduced operational costs.

Upgrading Considerations and Best Practices

Upgrading from DDR3 to DDR4 requires verifying motherboard compatibility, as DDR4 uses a different pin configuration (288 pins vs. 240 pins) and operates at a higher voltage efficiency (1.2V compared to DDR3's 1.5V). Best practices include matching the new DDR4 RAM modules with the motherboard's supported speed and capacity specifications, and ensuring BIOS updates are applied for optimal memory management. Careful static discharge precautions and using compatible dual-channel memory kits enhance system stability and performance during the upgrade process.

Future Trends in Memory Technology

DDR4 memory technology offers higher bandwidth, increased capacity, and improved energy efficiency compared to DDR3, making it the preferred choice for next-generation hardware engineering. Emerging trends indicate a shift toward DDR5 and advanced memory solutions, focusing on faster data transfer rates, lower latency, and enhanced power management to support AI, machine learning, and high-performance computing. Innovations in 3D stacking and chip architecture also aim to overcome DDR4 limitations, promising significant improvements in memory density and scalability for future applications.

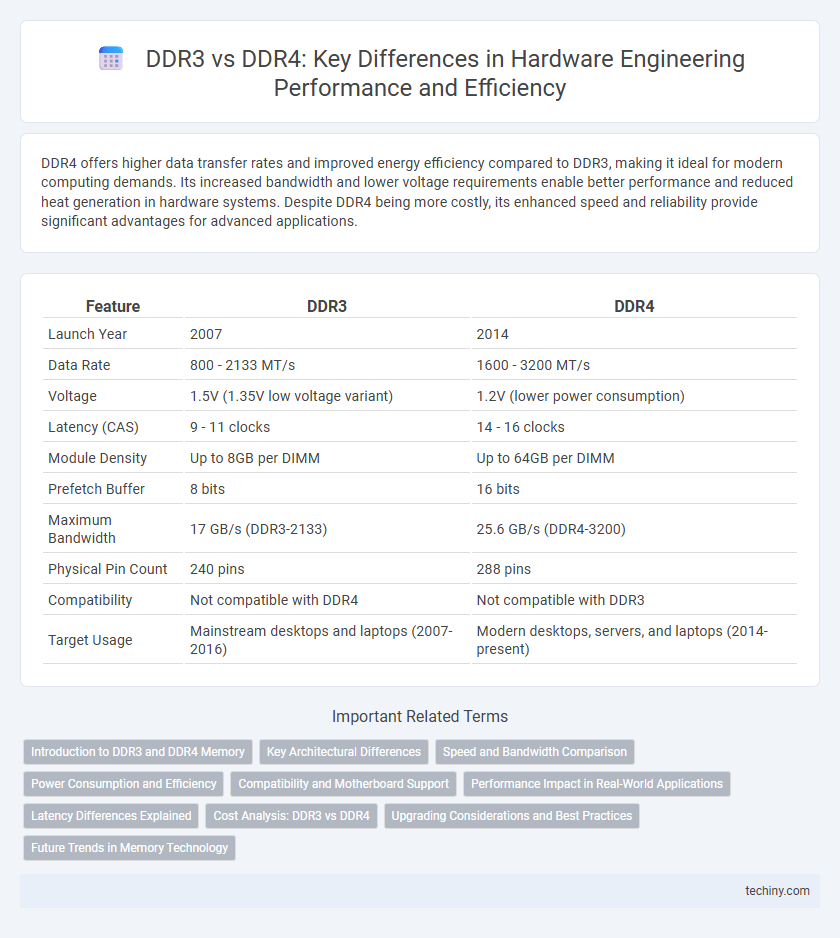

DDR3 vs DDR4 Infographic
