techiny.com EEPROM offers byte-level data erasure and rewriting, making it ideal for frequent and precise updates in hardware systems, while Flash memory erases data in larger blocks, providing faster write speeds and higher storage density suitable for firmware storage. Flash memory generally supports greater capacity and faster access times, whereas EEPROM's endurance and byte-level access make it preferable for configuration settings and small data storage. Selecting between EEPROM and Flash depends on application-specific requirements such as update frequency, data size, and performance constraints in embedded hardware design.
Table of Comparison
| Feature | EEPROM | Flash Memory |
|---|---|---|
| Storage Type | Non-volatile byte-addressable memory | Non-volatile block-addressable memory |
| Read/Write Cycle | Typically 1 million cycles | Typically 10,000 to 100,000 cycles |
| Erase Granularity | Byte-wise erase and write | Block or sector erase |
| Write Speed | Slower (microseconds to milliseconds) | Faster than EEPROM |
| Typical Capacity | Up to few megabytes | From megabytes to several gigabytes |
| Power Consumption | Lower power in write operations | Higher power during erase/write |
| Use Cases | Storing small configuration data, calibration constants | Mass storage, firmware storage, and data logging |
| Cost | Higher cost per bit | Lower cost per bit |
Introduction to EEPROM and Flash Memory
EEPROM (Electrically Erasable Programmable Read-Only Memory) and Flash memory are non-volatile storage technologies widely used in hardware engineering for data retention without power. EEPROM allows byte-level erasure and reprogramming, making it ideal for storing small amounts of data such as calibration settings or configuration parameters. Flash memory, typically erased and programmed in blocks, offers higher density and faster write speeds, making it suitable for larger data storage in embedded systems and consumer electronics.
Core Differences Between EEPROM and Flash
EEPROM (Electrically Erasable Programmable Read-Only Memory) allows data to be erased and rewritten one byte at a time, providing fine-grained control but slower write speeds, while Flash memory erases and writes data in larger blocks or sectors, enabling faster operations but less flexibility for small data changes. EEPROM typically endures around 1 million write/erase cycles per byte, whereas Flash memory generally supports between 10,000 to 100,000 cycles per block, impacting longevity depending on application demands. The architecture differences make EEPROM ideal for low-frequency updates and Flash suitable for bulk data storage where speed and capacity are prioritized.
Memory Architecture Comparison
EEPROM (Electrically Erasable Programmable Read-Only Memory) features byte-level erasability and reprogramming, allowing precise memory manipulation ideal for small data storage within hardware systems. Flash memory, designed with larger block-level architecture, offers faster write and erase cycles suitable for mass storage applications but lacks fine-grained erase capability. The differing memory architectures influence their integration in embedded systems, where EEPROM excels in control registers and calibration data, while Flash serves efficiently for firmware and large data storage.
Data Retention and Endurance
EEPROM offers superior data retention, typically maintaining stored information for over 20 years, making it ideal for long-term storage of small data quantities. Flash memory provides high endurance with write/erase cycles ranging from 10,000 to 100,000, enabling frequent updates in larger storage applications. While EEPROM excels in data retention, Flash memory delivers greater endurance for extensive rewrite requirements in hardware engineering.
Write and Erase Mechanisms
EEPROM uses byte-level write and erase operations, allowing selective data modification without erasing entire blocks, which results in slower write speeds but higher flexibility for small data updates. Flash memory employs block-level erase mechanisms, requiring entire sectors to be erased before new data can be written, enabling faster bulk writes but limiting granularity. The write endurance also varies, with EEPROM typically supporting around 1 million write cycles per byte, whereas Flash memory endures approximately 10,000 to 100,000 cycles per block.
Performance: Speed and Power Consumption
EEPROM typically offers slower write speeds and higher power consumption compared to Flash memory, making Flash more suitable for applications requiring rapid data storage and frequent writes. Flash memory's faster erase and program cycles enhance performance efficiency, especially in embedded systems where power consumption is critical. Optimizing hardware design around Flash memory can lead to substantial improvements in overall system speed and energy usage.
Application Scenarios in Hardware Engineering
EEPROM is ideal for applications requiring frequent byte-level data updates, such as configuration settings and calibration data in hardware systems. Flash memory suits bulk storage needs and firmware updates where large blocks of data must be written or erased efficiently. Hardware engineers often select EEPROM for small, critical data retention and Flash for mass storage due to its faster write and erase cycles in embedded devices.
Cost Factors and Scalability
EEPROM typically incurs higher cost per bit due to its byte-level erase and write capability, making it less scalable for large data storage compared to Flash memory. Flash memory offers cost efficiency in high-density applications because it erases and programs blocks of data, reducing manufacturing complexity and improving scalability for large-scale embedded systems. The scalability advantage of Flash translates into lower overall system cost in applications requiring extensive memory capacity such as firmware storage and mass data logging.
Reliability and Lifespan Considerations
EEPROM typically offers higher endurance with write/erase cycles ranging from 1 million to 10 million, making it more reliable for frequent small data updates. Flash memory, while having lower endurance around 10,000 to 100,000 cycles, excels in storing large blocks of data efficiently, but its lifespan can degrade faster under intensive write operations. Reliability in hardware engineering depends on application-specific usage patterns, where EEPROM is preferred for critical data retention and Flash for bulk storage.
Future Trends in Non-Volatile Memory Technologies
Emerging non-volatile memory technologies, such as MRAM and ReRAM, are positioned to surpass traditional EEPROM and Flash by offering higher speed, greater endurance, and lower power consumption. Industry trends emphasize the integration of these advanced memories into hardware designs to enable faster data retention and increased scalability for IoT and edge devices. Continued innovation in 3D architecture and material science is driving the evolution of non-volatile memory, targeting applications requiring instant data access and longer device lifespans.

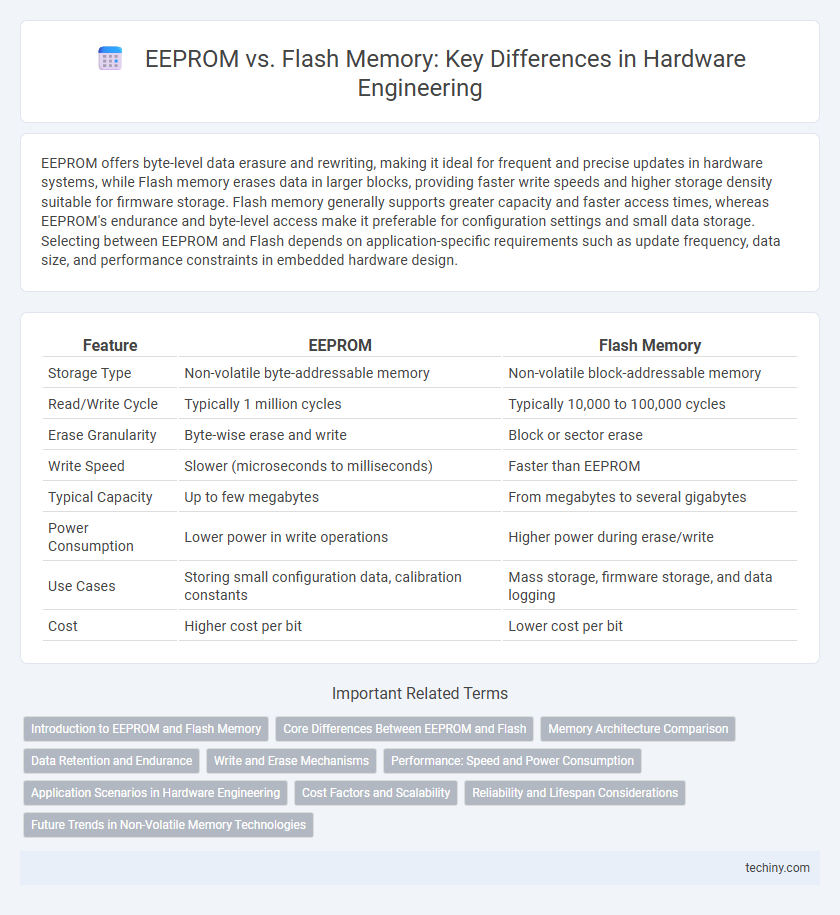

EEPROM vs Flash Infographic
