techiny.com Flux core solder contains a flux core that facilitates the removal of oxides during soldering, ensuring strong and reliable joints, especially on metal surfaces prone to oxidation. Lead-free solder is favored for its environmental and health benefits, composed mainly of tin, silver, and copper, but it often requires higher temperatures and may have different mechanical properties compared to flux core solder. Choosing between flux core and lead-free solder depends on factors such as regulatory compliance, joint strength requirements, and the specific application environment.
Table of Comparison
| Feature | Flux Core Solder | Lead-Free Solder |
|---|---|---|
| Composition | Metal alloy with internal flux core | Alloy without lead, typically tin, silver, copper |
| Lead Content | Contains lead (often 60/40 tin-lead) | Lead-free (RoHS compliant) |
| Flux Type | Rosin or organic flux core inside solder wire | Usually requires external flux or has specially formulated flux |
| Melting Point | Low melting point (~183degC for 60/40 solder) | Higher melting point (~217-227degC) |
| Toxicity | Contains lead, toxic and hazardous | Non-toxic, environmentally friendly |
| Wettability | Excellent wetting and flow characteristics | Good but typically less fluid than leaded solder |
| Application | Ideal for sensitive electronics, repair, and prototyping | Preferred for consumer electronics, mass production |
| Regulatory Compliance | Not compliant with RoHS and environmental regulations | Compliant with RoHS, WEEE directives |
| Cost | Generally lower cost | Higher cost due to alloy composition |
Overview of Solder Types in Hardware Engineering
Flux core solder contains a flux core that cleans and prepares metal surfaces during the soldering process, enhancing joint quality and reducing oxidation in hardware engineering applications. Lead-free solder, typically composed of tin, silver, and copper, meets environmental regulations and offers improved thermal and mechanical properties compared to traditional leaded solder. Selecting the appropriate solder type influences the reliability, conductivity, and durability of electronic hardware assemblies.
Chemical Composition: Flux Core vs Lead-Free Solder
Flux core solder typically contains a core of rosin-based flux surrounded by a tin-lead alloy, enabling efficient oxidation removal during soldering. Lead-free solder primarily consists of a combination of tin, silver, and copper (SAC alloys), eliminating lead to meet environmental standards. The chemical composition differences affect melting points, wettability, and mechanical properties critical for hardware engineering applications.
Melting Points and Thermal Properties
Flux core solder typically has a melting point range between 183degC to 190degC, offering lower melting temperatures that facilitate easier soldering with minimal heat stress on components. Lead-free solder, commonly composed of tin, silver, and copper, melts at higher temperatures around 217degC to 221degC, which requires better thermal management during reflow processes to prevent damage. The thermal conductivity of flux core solder supports rapid heat transfer for efficient joint formation, while lead-free solder demands controlled heat profiles to avoid thermal fatigue in hardware engineering applications.
Wetting and Flow Characteristics
Flux core solder exhibits superior wetting properties due to its built-in flux, enabling better surface tension reduction and enhanced spread on metallic surfaces compared to lead-free solder. Lead-free solder, typically composed of tin, silver, and copper alloys, often presents higher melting temperatures that can compromise flow characteristics and joint reliability. Optimizing wetting and flow in hardware engineering requires selecting solder that balances flux activity and melting point to ensure strong, defect-free solder joints.
Joint Strength and Reliability
Flux core solder offers superior joint strength due to its integrated flux, which enhances metal wetting and reduces oxidation during the soldering process. Lead-free solder, while environmentally friendly, typically exhibits higher melting temperatures and may result in weaker joints with increased brittleness under thermal cycling. Reliability in hardware engineering applications favors flux core solder for critical connections where mechanical stress and long-term durability are priorities.
Health and Environmental Considerations
Flux core solder contains rosin-based flux that can emit respiratory irritants and harmful fumes during soldering, posing health risks without proper ventilation or protective equipment. Lead-free solder, often composed of tin, silver, and copper, reduces lead exposure hazards but may release other metal particles and require higher temperatures, potentially increasing energy consumption. Environmentally, lead-free solder is favored due to its reduced toxicity and compliance with regulations like RoHS, while flux core solder's flux components may contribute to chemical waste if not properly managed.
Compatibility with Electronic Components
Flux core solder offers superior compatibility with a wide range of electronic components due to its built-in flux that ensures better wetting and reduces oxidation during soldering. Lead-free solder, while more environmentally friendly, requires higher temperatures that may stress sensitive components and potentially cause damage or reduced reliability. Selecting the appropriate solder depends on component specifications, thermal tolerances, and the need for long-term stability in electronic assemblies.
Application Techniques and Tools Required
Flux core solder simplifies the application process by combining flux within the solder wire, eliminating the need for separate flux application and suitable for hand soldering with standard soldering irons. Lead-free solder requires external flux to ensure proper adhesion and often demands higher temperature soldering tools, such as temperature-controlled iron tips capable of reaching 350-400degC to handle its higher melting point. Using the appropriate flux and temperature settings is crucial for both types to achieve strong, reliable joints in hardware engineering projects.
Long-Term Performance and Failure Rates
Flux core solder provides strong initial bonds but may exhibit higher long-term failure rates due to flux residue causing corrosion under thermal stress. Lead-free solder, typically composed of tin, silver, and copper, offers enhanced long-term reliability and reduced electrical failures owing to its superior thermal fatigue resistance. Studies indicate that lead-free solder joints maintain mechanical integrity better over extended cycles, lowering maintenance costs in hardware engineering applications.
Industry Standards and Regulatory Compliance
Flux core solder meets industry standards such as IPC J-STD-004 for flux classification, ensuring reliable soldering with built-in flux that aids in oxidation removal and joint integrity. Lead-free solder complies with regulatory directives like RoHS (Restriction of Hazardous Substances) and REACH, mandating the elimination of lead to reduce environmental and health hazards. Selecting solder involves balancing flux core's ease of use and compliance with lead-free requirements to meet stringent electronic manufacturing standards.

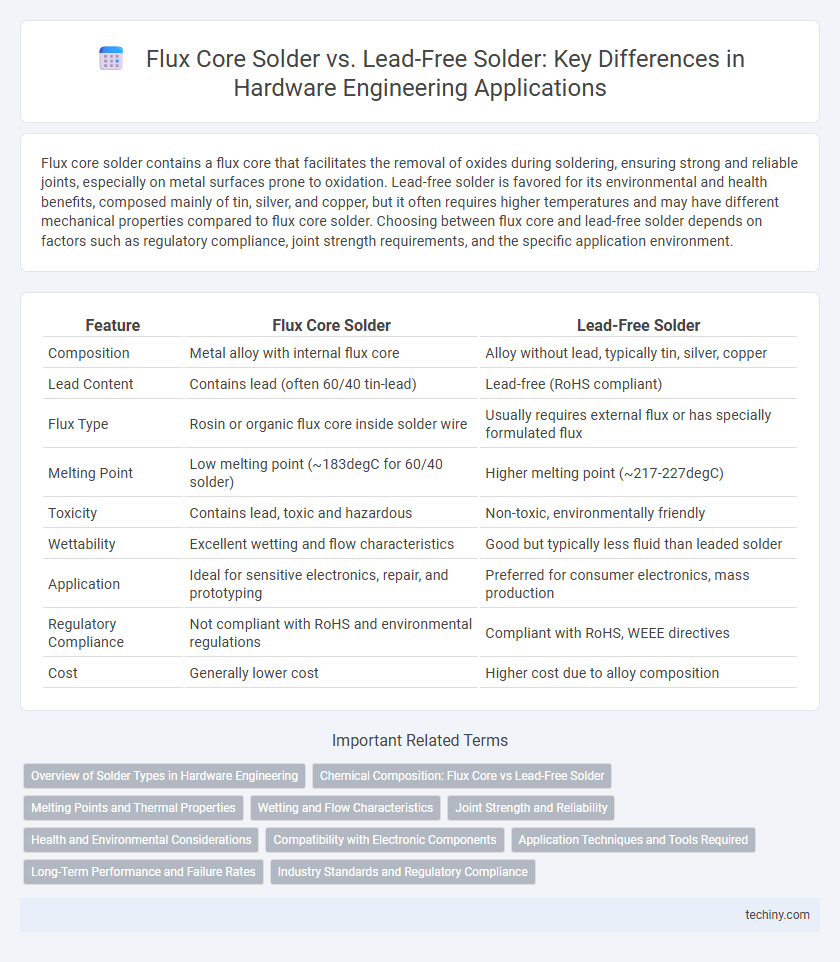

Flux core solder vs Lead-free solder Infographic
