techiny.com Flexible Printed Circuits (FPC) offer higher durability and complex circuit design capabilities compared to Flexible Flat Cables (FFC), making them ideal for compact and high-performance electronic devices. FFCs use a simpler, flat ribbon structure with parallel conductors, which allows cost-effective connectivity but limits flexibility in complex routing. Choosing between FPC and FFC depends on application requirements such as signal integrity, mechanical stress tolerance, and space constraints.
Table of Comparison
| Feature | FPC (Flexible Printed Circuit) | FFC (Flexible Flat Cable) |
|---|---|---|
| Material | Flexible polyimide or polyester substrate with etched copper traces | Flat ribbon cable with parallel copper conductors laminated between plastic films |
| Flexibility | Highly flexible; supports complex bending and folding | Moderately flexible; best for simple bends and straight runs |
| Connector Types | Custom designed for application; often with zero insertion force (ZIF) connectors | Standardized connectors; commonly ZIF and LIF (Low Insertion Force) |
| Signal Integrity | Better control over impedance; suitable for high-speed signal transmission | Limited impedance control; typically used for low-frequency signals |
| Applications | Smartphones, medical devices, aerospace, and complex electronics | Printers, laptops, consumer electronics with simple interconnect needs |
| Cost | Higher due to customization and manufacturing complexity | Lower cost; mass-produced standard cables |
| Durability | More durable under repeated flexing and harsh conditions | Less durable; better for static or limited-flex applications |
Overview of FPC and FFC Technologies
Flexible Printed Circuits (FPC) consist of a flexible polymer film substrate with copper circuits, enabling compact, lightweight, and high-density electronic interconnections ideal for complex hardware designs. Flexible Flat Cables (FFC) are flat ribbon cables with parallel conductors in a flexible plastic film, primarily used for straightforward, low-cost connections between components in electronic devices. FPC technology offers superior flexibility and durability compared to FFC, making it suitable for applications requiring intricate routing and repeated flexing, while FFC is preferred for simpler, fixed connection pathways.
Key Differences Between FPC and FFC
Flexible Printed Circuits (FPC) feature etched copper pathways on a flexible polymer substrate, offering high-density circuitry and superior durability compared to Flexible Flat Cables (FFC), which consist of flat, parallel conductors laminated between plastic films. FPCs support complex circuitry and tighter bend radii, making them ideal for compact, high-performance electronics, whereas FFCs are typically used for simpler, cost-effective interconnections requiring less flexibility. Key differences include FPC's customizable circuit patterns and higher reliability versus FFC's standardized flat cable design and ease of assembly.
Material Composition: FPC vs FFC
Flexible Printed Circuits (FPC) are composed of polyimide film with copper conductors laminated between layers, offering superior flexibility and thermal stability for complex electronic applications. Flexible Flat Cables (FFC) consist primarily of thin flat conductors embedded in a flexible plastic film, typically polyester, which provides cost-effective and lightweight interconnections but less durability compared to FPC. The polyimide material in FPCs enables higher heat resistance and mechanical endurance, whereas FFC materials prioritize simplicity and ease of mass production.
Manufacturing Processes for FPC and FFC
Flexible Printed Circuits (FPC) manufacturing involves complex processes such as photolithography, etching, and lamination to create intricate circuit patterns on flexible substrates, offering high-density interconnections and customizable designs. In contrast, Flexible Flat Cables (FFC) production emphasizes simpler extrusion and stamping techniques, resulting in flat, ribbon-like cables with standardized conductor layouts and limited customization. The precise layer-by-layer construction of FPC allows for advanced miniaturization and reliability in compact electronic devices, whereas FFC manufacturing prioritizes cost-effectiveness and ease of assembly for straightforward connectivity applications.
Electrical Performance Comparison
FPC (Flexible Printed Circuit) offers superior electrical performance compared to FFC (Flat Flexible Cable) due to its ability to support complex circuit designs with higher signal integrity and reduced electromagnetic interference. The conductive traces in FPC are etched on flexible polyimide substrates, enabling lower resistance and capacitance, which enhances high-frequency signal transmission. FFCs rely on simple flat conductors that may exhibit higher crosstalk and signal attenuation, making FPC the preferred choice for high-speed, precision electronic applications.
Mechanical Flexibility and Durability
Flexible Printed Circuits (FPC) offer superior mechanical flexibility due to their multi-layer construction and use of polyimide substrates, allowing for complex bending and folding without damage. In contrast, Flexible Flat Cables (FFC) are typically single-layer with a flat ribbon-like structure, providing less durability and limited bending radius, making them prone to wear under repeated mechanical stress. FPCs are engineered for high durability in dynamic applications, enhancing longevity in devices requiring frequent flexing or compact design integration.
Common Applications in Hardware Engineering
Flexible Printed Circuits (FPC) are frequently employed in compact electronic devices such as smartphones and wearables due to their ability to bend and conform to tight spaces, enhancing durability and design flexibility. Flat Flexible Cables (FFC) are commonly used in internal connections of laptops, printers, and cameras where streamlined, low-profile cabling is needed to connect circuit boards without adding bulk. Both FPC and FFC technologies are essential in hardware engineering for enabling reliable, space-efficient interconnects in high-density electronic assemblies.
Cost Analysis: FPC vs FFC
FPC (Flexible Printed Circuits) typically incur higher manufacturing costs due to complex multilayer construction and precise etching processes, while FFC (Flat Flexible Cables) offer cost-effective solutions with simpler single-layer designs and reduced material use. The increased durability and customization capabilities of FPC justify their cost in high-performance applications, whereas FFCs are preferred in budget-sensitive projects requiring straightforward connectivity. Evaluating total lifecycle expenses, including installation and maintenance, further highlights FPC's advantage in long-term reliability compared to FFC's initial affordability.
Design Considerations for Integration
FPC (Flexible Printed Circuit) and FFC (Flexible Flat Cable) differ significantly in integration design, where FPCs offer intricate circuit patterns enabling custom shapes and high-density connections suitable for compact hardware assemblies. FFCs provide simpler, flat conductor arrays with standardized pitch and length, ideal for straightforward signal transmission between PCBs in less space-constrained environments. Designers must consider mechanical flexibility, signal integrity, and connector compatibility when selecting between FPC and FFC to optimize performance and durability in hardware systems.
Future Trends in Flexible Interconnects
Future trends in flexible interconnects emphasize advancements in FPC (Flexible Printed Circuits) and FFC (Flexible Flat Cables) to enhance durability, conductivity, and miniaturization in hardware engineering. Integration of high-density materials and improved soldering techniques are propelling FPCs towards more complex, high-speed applications, while FFCs are evolving with thinner, lighter designs to support flexible electronics and wearable devices. Emerging technologies such as printed electronics and stretchable circuits predict a new era of hybrid flexible interconnects with enhanced mechanical flexibility and electrical performance.

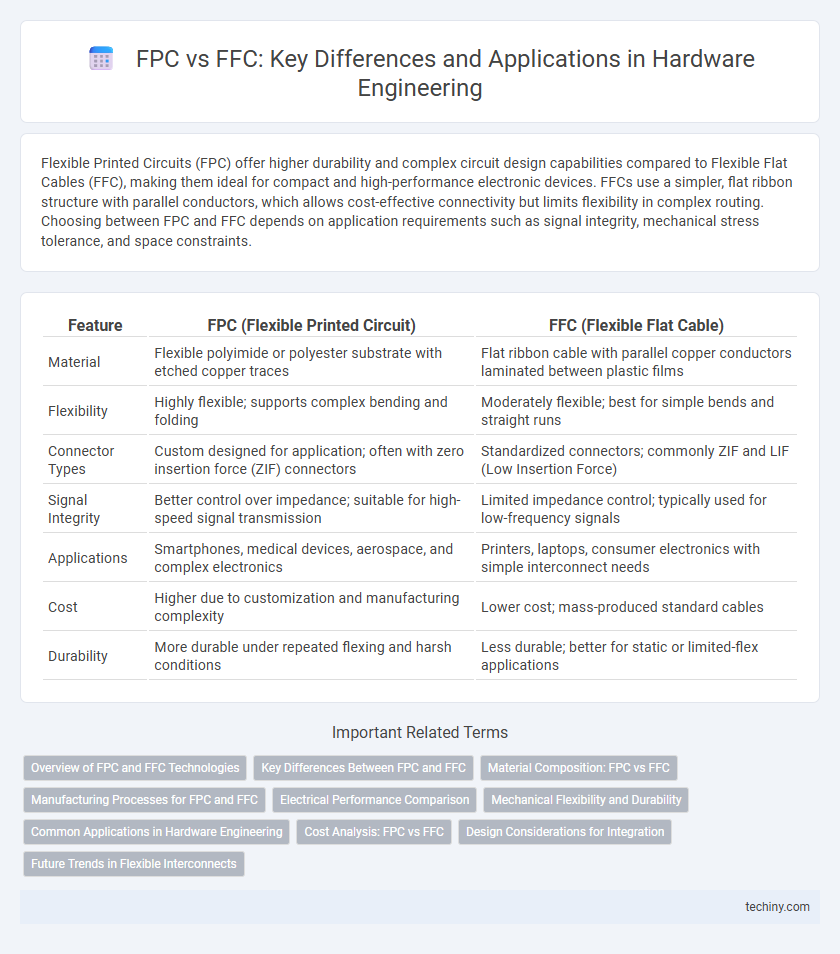

FPC vs FFC Infographic
