techiny.com Furnace reflow uses convection heat to melt solder paste, offering precise temperature control and uniform heating ideal for mass production of PCBs. Vapor phase reflow employs a saturated vapor to transfer heat, providing excellent temperature uniformity and reduced oxidation risk, beneficial for sensitive components. Both techniques enhance solder joint reliability, but vapor phase reflow excels in reducing thermal stress and minimizing component warpage.
Table of Comparison
| Feature | Furnace Reflow | Vapor Phase Reflow |
|---|---|---|
| Heating Method | Convection and radiation heat | Saturated vapor condensation |
| Temperature Uniformity | Moderate uniformity | High uniformity due to vapor phase |
| Peak Temperature Control | Requires precise settings | Self-regulated at vapor saturation temp |
| Thermal Stress on PCB | Higher due to uneven heating | Lower, gentle heating reduces stress |
| Process Speed | Faster cycle times | Slower due to vapor condensation time |
| Oxidation Risk | Higher, requires inert atmosphere | Minimal oxidation, vapor protects PCB |
| Equipment Cost | Lower initial cost | Higher initial investment |
| Applications | Mass production for standard PCBs | High-reliability and sensitive component soldering |
Introduction to Reflow Soldering Techniques
Reflow soldering techniques, including furnace reflow and vapor phase reflow, are critical processes in hardware engineering for attaching surface mount components to printed circuit boards (PCBs). Furnace reflow uses controlled convection and radiation heating to melt solder paste, ensuring uniform temperature profiles for consistent joint quality. Vapor phase reflow employs saturated vapor to achieve precise temperature control and reduces the risk of overheating sensitive components during soldering.
Understanding Furnace Reflow Process
Furnace reflow is a controlled thermal process used in hardware engineering to solder surface mount components onto printed circuit boards by gradually heating them to a specific peak temperature, ensuring proper melting of solder paste. This method provides precise temperature profiling that prevents component damage and optimizes solder joint reliability compared to vapor phase reflow, which relies on saturated vapor for heat transfer. Understanding furnace reflow involves mastering key parameters such as ramp rate, soak time, and peak temperature to achieve consistent, high-quality soldering results.
Fundamentals of Vapor Phase Reflow
Vapor phase reflow utilizes a saturated vapor with a precise boiling point to uniformly transfer heat to electronic assemblies, ensuring consistent soldering and reducing thermal stress. This process eliminates the risk of oxidation and components overheating by maintaining a stable, controlled temperature environment. Compared to furnace reflow, vapor phase offers enhanced thermal accuracy, making it ideal for sensitive or complex hardware assemblies requiring high reliability.
Key Equipment for Furnace vs Vapor Reflow
Furnace reflow systems utilize precise conveyor belts and infrared or convection heating elements to uniformly solder components on PCBs, ensuring controlled temperature profiles and efficient thermal transfer. Vapor phase reflow employs specialized vapor phase equipment, including vapor chambers and condensation plates, leveraging the latent heat of vaporized liquids like Galden to achieve consistent and uniform heat distribution without overheating sensitive components. The critical distinction lies in the equipment's heat transfer mechanisms--furnace reflow relies on direct thermal radiation and convection, while vapor phase reflow depends on phase-change heat transfer for enhanced temperature control and reduced thermal stress.
Temperature Profiles: Furnace vs Vapor Phase
Furnace reflow uses a controlled temperature ramp-up, soak, and cool-down profile to solder components, typically reaching peak temperatures between 230degC and 250degC. Vapor phase reflow employs a saturated vapor environment at a precise temperature, often around 215degC to 220degC, ensuring uniform heat transfer and minimizing thermal shock. The temperature profile in vapor phase reflow is highly stable due to the liquid-to-gas phase change, offering consistent soldering quality and reduced risk of component damage compared to traditional furnace reflow methods.
Solder Joint Quality Comparison
Furnace reflow provides uniform temperature distribution, ensuring consistent solder joint quality with minimal thermal stress on components, which is ideal for standard PCB assemblies. Vapor phase reflow offers superior heat transfer through phase change, resulting in excellent solder joint reliability and reduced risk of oxidation and voids, especially beneficial for complex or high-density boards. Both methods maintain strong mechanical bonds and electrical conductivity, but vapor phase reflow generally achieves higher joint integrity in fine-pitch and lead-free solder applications.
Energy Efficiency and Environmental Impact
Furnace reflow ovens typically consume more energy due to prolonged heating cycles and continuous airflow, whereas vapor phase reflow systems are more energy-efficient by utilizing the latent heat of vapor condensation, reducing overall power usage. Vapor phase reflow minimizes thermal stress on components and generates fewer emissions since it operates with less inert gas consumption and avoids the high-temperature exhaust gases associated with furnace reflows. This environmental advantage, combined with lower energy demands, positions vapor phase reflow as a greener alternative in hardware assembly processes.
Process Control and Reliability Factors
Furnace reflow utilizes convective heat transfer with precise temperature profiled zones to ensure uniform solder melting, reducing the risk of thermal shock and component damage. Vapor phase reflow employs saturated vapor to provide consistent, isothermal heating, enhancing process control by eliminating temperature overshoot and improving solder joint reliability. Both methods rely on accurate thermal profiling and controlled atmosphere conditions to optimize solder quality and minimize defects in hardware assembly.
Application Suitability in Electronics Manufacturing
Furnace reflow is ideal for high-volume electronics manufacturing, offering precise temperature control suitable for standard PCB assembly processes, especially with lead-free solder alloys. Vapor phase reflow provides superior thermal uniformity and reduces oxidation, making it suitable for sensitive components and complex multi-layer boards where delicate heat profiles are critical. Both methods optimize solder joint quality, but choice depends on specific assembly requirements, component thermal sensitivity, and production scale.
Cost Considerations and ROI Analysis
Furnace reflow offers lower initial equipment costs and simpler maintenance compared to vapor phase reflow, making it suitable for small to medium production runs with limited budgets. Vapor phase reflow, while involving higher upfront expenses for specialized equipment and inert gas use, delivers superior process control, reduced thermal stress on components, and increased yield rates, leading to a faster return on investment in high-volume manufacturing environments. Evaluating total cost of ownership and expected throughput is essential for determining the optimal reflow technology based on specific production scale and quality requirements.

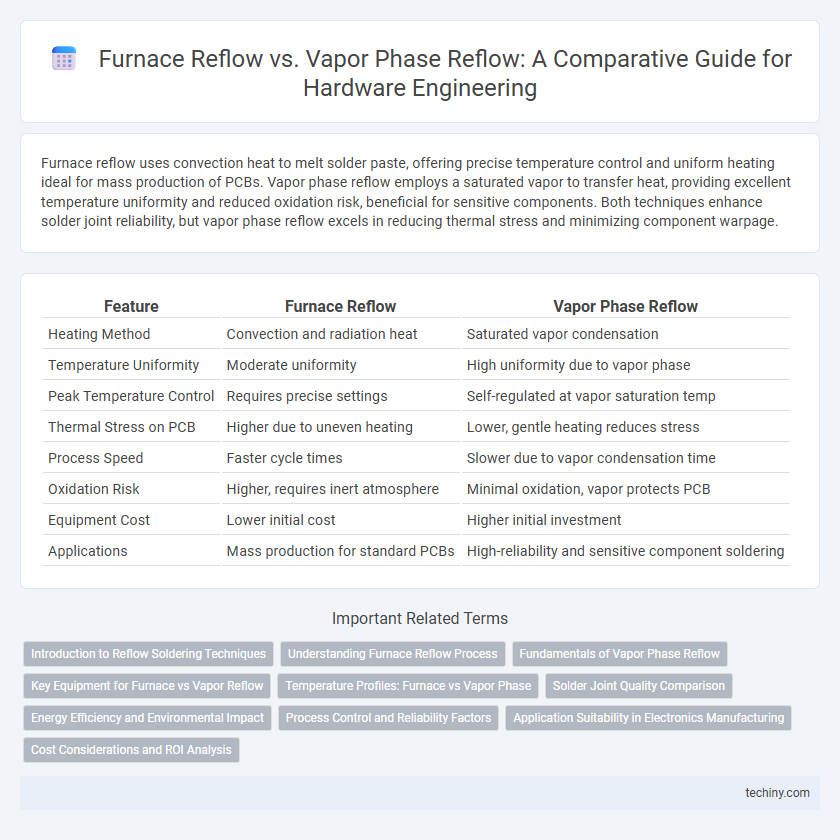

Furnace Reflow vs Vapor Phase Reflow Infographic
