techiny.com Heat sinks and heat spreaders are critical components in thermal management for hardware engineering, with heat sinks designed to dissipate heat away from electronic components through fins and increased surface area. Heat spreaders, in contrast, primarily distribute heat more evenly across a surface to prevent hotspots and enhance overall thermal conduction. Selecting between heat sinks and heat spreaders depends on the specific cooling requirements and form factors of the hardware system.
Table of Comparison
| Feature | Heat Sink | Heat Spreader |
|---|---|---|
| Function | Dissipates heat from components into the surrounding air | Distributes heat evenly across a surface for improved conduction |
| Material | Aluminum or copper with fins | Thin metal plate, often copper or aluminum |
| Design | Finned structure to increase surface area | Flat, smooth surface for direct contact |
| Application | Used in CPUs, GPUs, power electronics | Used under processors, memory chips for heat distribution |
| Heat Transfer Method | Convection and conduction | Primarily conduction |
| Cooling Efficiency | High, enhanced by airflow | Moderate, improves thermal interface performance |
| Size and Weight | Usually larger and heavier | Compact and lightweight |
Overview: Heat Sink vs Heat Spreader
Heat sinks and heat spreaders serve distinct roles in thermal management within hardware engineering, with heat sinks primarily designed to dissipate heat away from components using fins and airflow enhancement. Heat spreaders evenly distribute heat across a larger surface area to prevent hotspots and improve overall thermal conductivity in compact electronic devices. Effective integration of heat sinks and heat spreaders optimizes cooling performance, enhancing durability and efficiency of processors and other high-power hardware components.
Core Functions: Heat Sink and Heat Spreader
Heat sinks dissipate heat away from electronic components by increasing surface area and enhancing airflow, effectively lowering device temperature. Heat spreaders distribute heat evenly across a broader area, preventing localized hotspots and improving thermal management efficiency. Both components are crucial in maintaining optimal performance and reliability in hardware engineering by managing heat flow.
Design Principles and Material Differences
Heat sinks use fins to maximize surface area for heat dissipation, typically made from aluminum or copper due to their high thermal conductivity. Heat spreaders offer a flat, uniform surface to distribute heat evenly across components, often using materials like graphite or copper for efficient lateral heat transfer. Design principles prioritize maximizing thermal conduction in heat spreaders and enhancing convective heat exchange in heat sinks.
Thermal Management Mechanisms
Heat sinks enhance thermal dissipation by increasing surface area and using fins to facilitate convective heat transfer from electronic components to surrounding air. Heat spreaders distribute heat laterally across a broader surface, reducing localized hotspots and improving overall temperature uniformity within the device. Both components optimize thermal management by minimizing thermal resistance and maintaining device reliability under high power densities.
Application Areas in Hardware Engineering
Heat sinks are primarily used in hardware engineering for dissipating heat from high-power components such as CPUs, GPUs, and power transistors, ensuring thermal management in computer systems, servers, and power electronics. Heat spreaders find application in distributing heat evenly across semiconductor devices and PCBs, crucial in LED lighting systems, memory modules, and compact mobile electronics where uniform temperature control enhances performance and reliability. Both components play critical roles in maintaining device longevity and preventing thermal throttling in advanced electronic hardware designs.
Performance Comparison: Efficiency and Effectiveness
Heat sinks typically offer superior thermal dissipation due to their larger surface area and finned structures that enhance airflow, making them more efficient at transferring heat away from high-power components. Heat spreaders provide a more uniform temperature distribution by spreading heat laterally across a component but generally have lower thermal transfer efficiency compared to heat sinks. In performance-critical applications, heat sinks deliver better cooling effectiveness, while heat spreaders excel in maintaining component surface uniformity and preventing localized hotspots.
Integration Challenges and Solutions
Integrating heat sinks and heat spreaders into electronic hardware presents challenges such as space constraints, thermal interface material (TIM) selection, and mechanical stress management. Heat sinks require precise mounting and optimal airflow design to maximize heat dissipation, while heat spreaders demand uniform contact and low thermal resistance across semiconductor surfaces. Solutions include advanced TIMs with improved conductivity, customizable heat sink geometries using computational fluid dynamics (CFD) simulations, and compliant mounting techniques to reduce mechanical stress and ensure reliable thermal performance.
Selection Criteria for Electronic Devices
Selection criteria for heat sinks and heat spreaders in electronic devices prioritize thermal conductivity, size constraints, and application-specific heat dissipation requirements. Heat sinks are preferred for high-power devices due to their ability to dissipate large amounts of heat through fins and airflow, while heat spreaders excel in evenly distributing heat over a larger surface with minimal thickness, ideal for compact or sensitive components. Material choice, such as copper or aluminum, and device operating temperature ranges further influence the optimal thermal management solution.
Cost Implications and Manufacturing Considerations
Heat sinks generally involve higher material and manufacturing costs due to their complex fin structures and need for precise thermal conductivity design, making them more expensive than heat spreaders. Heat spreaders use simpler, flat metallic plates that are cheaper to produce and integrate but offer less efficient heat dissipation, impacting overall system cost-performance balance. Manufacturing considerations for heat sinks require advanced machining or extrusion processes, whereas heat spreaders are typically stamped or laminated, influencing lead times and tooling expenses.
Future Trends in Thermal Solutions
Emerging innovations in thermal management emphasize advanced heat sink materials such as graphene-enhanced composites for superior thermal conductivity, while heat spreaders integrate phase change materials to improve heat dissipation efficiency in compact electronics. Future trends prioritize hybrid solutions combining heat sinks and spreaders with active cooling technologies like microfluidic channels to address increasing power densities in semiconductor devices. Adoption of AI-driven thermal design optimization tools is accelerating to predict and enhance system-level heat management performance in next-generation hardware engineering.

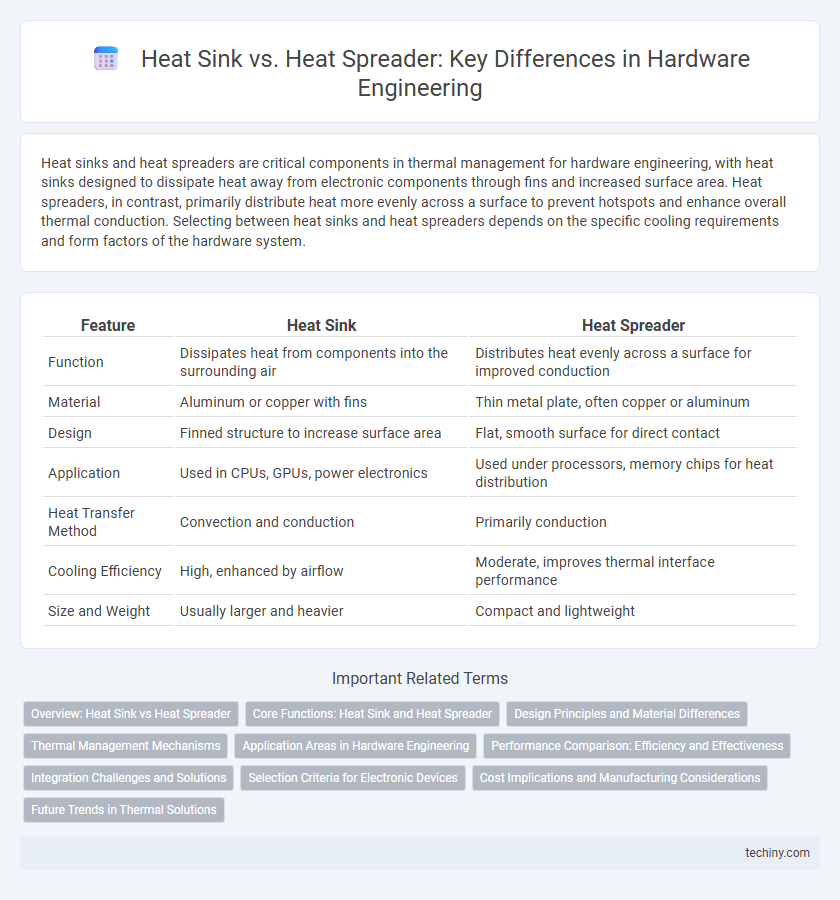

Heat sink vs Heat spreader Infographic
