techiny.com LDO regulators provide a simple, low-noise, and cost-effective solution for applications requiring low dropout voltage and minimal output ripple, making them ideal for sensitive analog circuits. Switching regulators offer higher efficiency and better thermal performance for power-intensive applications by converting voltage through high-frequency switching, which reduces energy loss. The choice between LDO and switching regulators depends on factors such as power efficiency, noise tolerance, size constraints, and cost considerations in hardware design.
Table of Comparison
| Feature | LDO (Low Dropout Regulator) | Switching Regulator |
|---|---|---|
| Efficiency | Low to Moderate (40-60%) | High (80-95%) |
| Output Noise | Low noise, clean output | Higher noise due to switching |
| Complexity | Simple design, few external components | Complex design, requires inductors and capacitors |
| Size | Compact, small footprint | Larger due to external components |
| Cost | Lower cost | Higher cost |
| Thermal Dissipation | High heat generated at high current | Lower heat due to higher efficiency |
| Input Voltage Range | Narrow, dropout voltage critical | Wide input voltage range |
| Applications | Noise-sensitive circuits, low power applications | High power, battery-powered devices |
Introduction to Voltage Regulators
Voltage regulators ensure a stable output voltage for electronic circuits by compensating for input voltage variations and load changes. Low Dropout Regulators (LDOs) provide a simple, low-noise solution ideal for low power applications with minimal voltage difference between input and output. Switching regulators, including buck and boost converters, offer higher efficiency across a wide input voltage range by rapidly switching components to regulate output voltage, making them suitable for high power and battery-operated devices.
What is an LDO Regulator?
An LDO regulator, or Low Dropout regulator, is a type of linear voltage regulator designed to operate with a very small input-to-output voltage differential, enabling efficient voltage regulation with minimal power loss. It provides a stable and noise-free output voltage, making it ideal for sensitive analog and RF circuits in hardware engineering applications. LDO regulators are preferred when low noise, simplicity, and fast transient response are critical despite lower efficiency compared to switching regulators.
Overview of Switching Regulators
Switching regulators efficiently convert voltage using high-frequency MOSFETs and inductors, providing superior power conversion efficiency often exceeding 90%. They support both step-down (buck) and step-up (boost) applications with adjustable output voltages, making them ideal for battery-powered and high-current systems. Despite increased electromagnetic interference (EMI) and complexity compared to LDOs, switching regulators significantly reduce power dissipation and improve thermal performance in modern hardware designs.
Efficiency Comparison: LDO vs Switching Regulator
Switching regulators typically achieve higher efficiency than Low Dropout (LDO) regulators, often exceeding 80-90% efficiency by converting voltage through a high-frequency switching process that minimizes power loss. LDO regulators maintain simplicity and low noise output but generally exhibit lower efficiency, especially when the input-to-output voltage differential is large, resulting in significant power dissipation as heat. For applications demanding power efficiency and battery life optimization, switching regulators are favored over LDOs despite their increased circuit complexity.
Noise Performance and Output Ripple
LDO regulators typically provide lower output noise and minimal output ripple, making them ideal for noise-sensitive analog and RF circuits. Switching regulators, while more efficient, generate higher output ripple and electromagnetic interference due to their high-frequency switching operation. Implementing proper filtering and layout techniques is essential to mitigate noise issues when using switching regulators in precision hardware systems.
Thermal Management Considerations
LDO regulators dissipate excess voltage as heat, making thermal management crucial for high dropout voltages and large current loads to prevent overheating and maintain reliability. Switching regulators operate with higher efficiency, significantly reducing heat generation and often requiring smaller heat sinks or thermal solutions. Effective thermal design in switching regulators involves managing switching losses and electromagnetic interference while optimizing PCB layout for heat dissipation.
PCB Layout and Component Footprint
LDO regulators require a simpler PCB layout with minimal external components, leading to a smaller component footprint ideal for compact designs. Switching regulators demand careful PCB layout with attention to trace inductance and loop areas to minimize electromagnetic interference, often resulting in a larger component footprint due to inductors and additional passive elements. Optimizing the placement and routing of components is critical in switching regulators to ensure efficiency and stability, whereas LDOs benefit from straightforward layouts that enhance noise performance.
Cost Analysis: LDO vs Switching
LDO regulators typically offer lower upfront costs due to simpler designs and fewer external components, making them cost-effective for low-power, low-dropout applications. Switching regulators, while more expensive initially because of complex circuitry and additional components such as inductors and capacitors, provide higher efficiency and reduced heat dissipation, leading to savings in thermal management costs over time. Cost analysis must balance initial component expenses against long-term operational savings, particularly in power-sensitive hardware engineering projects.
Application Selection Guidelines
LDO regulators are ideal for low-noise, low-dropout voltage applications with minimal input-output voltage difference, commonly used in sensitive analog circuits and battery-powered devices. Switching regulators offer higher efficiency and better thermal performance for applications requiring significant voltage step-down or step-up with substantial current loads, such as power management in embedded systems. Choosing between LDO and switching regulators depends on factors like output voltage accuracy, efficiency, electromagnetic interference sensitivity, and system power constraints.
Key Design Trade-offs and Best Practices
LDO regulators provide low noise and simple design, ideal for noise-sensitive analog circuits but suffer from lower efficiency and higher heat dissipation at large voltage drops. Switching regulators offer high efficiency and better thermal performance for wide input voltage ranges, though they introduce noise and require careful PCB layout to minimize electromagnetic interference (EMI). Best practices include selecting LDOs for low current, low noise applications, and switching regulators for power efficiency in high current designs, while employing proper decoupling and filtering techniques to balance performance and reliability.

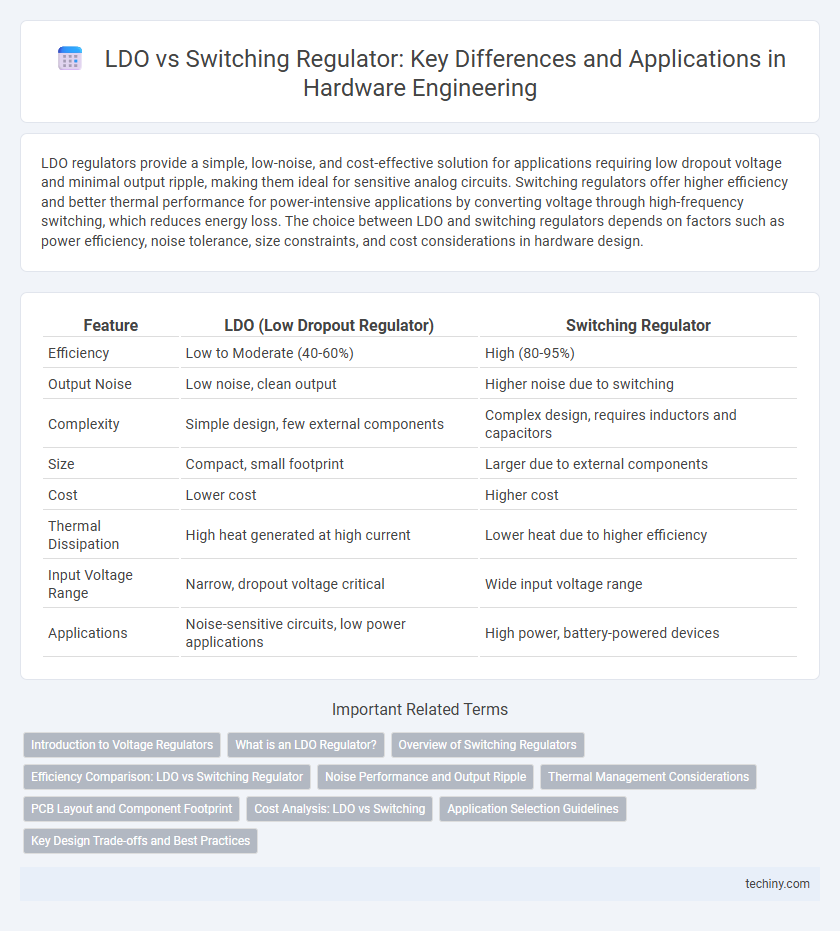

LDO vs Switching Regulator Infographic
