techiny.com Leaded solder, historically preferred for its lower melting point and excellent mechanical strength, provides reliable electrical connections but poses environmental and health hazards due to its toxic lead content. Lead-free solder, mandated by regulations like RoHS, utilizes safer materials such as tin, silver, and copper alloys, though it requires higher processing temperatures and may introduce challenges like increased brittleness or susceptibility to thermal fatigue. Optimizing solder choice balances performance, manufacturability, and compliance with environmental standards in hardware engineering.
Table of Comparison
| Feature | Leaded Solder | Lead-free Solder |
|---|---|---|
| Composition | Typically Sn63Pb37 or Sn60Pb40 | Typically SnAgCu (SAC), SnAg, or SnCu alloys |
| Melting Point | 183degC (361degF) | 217-220degC (423-428degF) |
| Environmental Impact | Contains lead - hazardous and toxic | Lead-free - RoHS compliant and eco-friendly |
| Mechanical Strength | Good ductility and reliability | Generally higher hardness, slightly more brittle |
| Wettability | Excellent wetting properties | Wetting can be challenging, requires optimized flux |
| Process Temperature | Lower reflow temperature | Requires higher reflow temperature, affecting component stress |
| Applications | Old-generation, non-RoHS compliant electronics | Modern electronics, automotive, medical devices (RoHS required) |
| Cost | Generally lower material cost | Higher material and processing costs |
Overview of Solder in Hardware Engineering
Solder in hardware engineering serves as a critical material for joining electronic components to circuit boards, with leaded solder traditionally consisting of a tin-lead alloy offering excellent mechanical strength and electrical conductivity. Lead-free solder, often made from alloys like tin-silver-copper (SAC), has become the industry standard due to environmental regulations such as RoHS, emphasizing reduced toxicity and improved ecological impact. The choice between leaded and lead-free solder affects manufacturing processes, reliability, and thermal profiles, making material selection pivotal for optimized hardware assembly.
Composition: Leaded vs Lead-Free Solder
Leaded solder typically consists of a tin-lead alloy, most commonly 60/40 tin to lead, offering low melting points and excellent electrical conductivity. Lead-free solder commonly uses alloys of tin with silver, copper, or bismuth, designed to meet environmental regulations like RoHS while maintaining mechanical strength and thermal fatigue resistance. The variance in composition affects melting temperature, wetting behavior, and joint reliability in hardware engineering applications.
Melting Point and Workability
Leaded solder typically melts at a lower temperature around 183degC, offering better flow and easier wetting properties that enhance workability during hardware assembly. Lead-free solder, often composed of tin, silver, and copper (SAC alloys), melts at a higher range between 217degC and 220degC, requiring more precise temperature control and extended heating times. Higher melting points in lead-free solder can increase the risk of thermal stress on sensitive components, impacting overall manufacturability and joint reliability in electronic hardware engineering.
Electrical and Mechanical Properties
Leaded solder offers superior electrical conductivity and a lower melting point, resulting in reduced thermal stress on components and improved joint reliability. Lead-free solder, while environmentally friendly, typically has higher melting temperatures and may exhibit increased brittleness, which can affect mechanical strength and long-term durability of solder joints. Selecting the appropriate solder type requires balancing electrical performance with mechanical robustness to ensure optimal hardware reliability and compliance with environmental standards.
Health and Environmental Impact
Leaded solder contains toxic lead, posing significant health risks including neurological damage and developmental issues, especially with prolonged exposure. Lead-free solder, typically made from tin, silver, and copper alloys, reduces these health hazards but often requires higher melting temperatures, which can impact manufacturing processes and energy consumption. Environmentally, lead-free solder minimizes soil and water contamination risks from electronic waste, promoting safer recycling and disposal practices compared to leaded alternatives.
Compliance with Global Standards (RoHS, REACH)
Leaded solder contains lead, which violates RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) regulations aimed at reducing hazardous materials in electronics. Lead-free solder formulations, typically based on tin, silver, and copper, comply with these global environmental standards, ensuring safer manufacturing and disposal processes. Compliance with RoHS and REACH is critical for hardware engineers to meet international market requirements and avoid regulatory penalties.
Reliability and Durability in Electronic Assemblies
Leaded solder offers superior reliability and durability in electronic assemblies due to its lower melting point and better mechanical strength, which reduce thermal stress and fatigue on components. Lead-free solder, while environmentally friendly, tends to have higher melting temperatures and increased susceptibility to brittle intermetallic compound formation, potentially compromising long-term joint integrity. Selecting solder type directly impacts the lifespan and performance consistency of critical hardware in electronic devices.
Manufacturing Process Considerations
Leaded solder offers lower melting points, which can reduce thermal stress on components during the manufacturing process, enhancing joint reliability in sensitive assemblies. Lead-free solder typically requires higher reflow temperatures, increasing energy consumption and the risk of damage to temperature-sensitive components and substrates. Process adjustments such as extended preheat profiles and enhanced flux chemistry are necessary to ensure robust solder joints and minimize defects in lead-free manufacturing.
Cost Comparison and Availability
Leaded solder remains generally less expensive than lead-free alternatives due to lower production costs and simpler alloy compositions. Lead-free solder, often made from tin, silver, and copper, can be costlier and less readily available due to fluctuating metal prices and stricter environmental regulations. Availability of lead-free solder continues to improve as regulatory mandates increase demand, but leaded solder still dominates in many cost-sensitive manufacturing environments.
Future Trends in Solder Technology
Future trends in solder technology emphasize the widespread adoption of lead-free alternatives driven by environmental regulations like RoHS and the need for sustainable manufacturing practices. Innovations in lead-free solder alloys are improving joint reliability and thermal fatigue resistance, addressing past concerns related to mechanical performance. Advances in flux formulations and localized heating techniques further optimize soldering processes for miniaturized and high-density electronic components in next-generation hardware engineering.

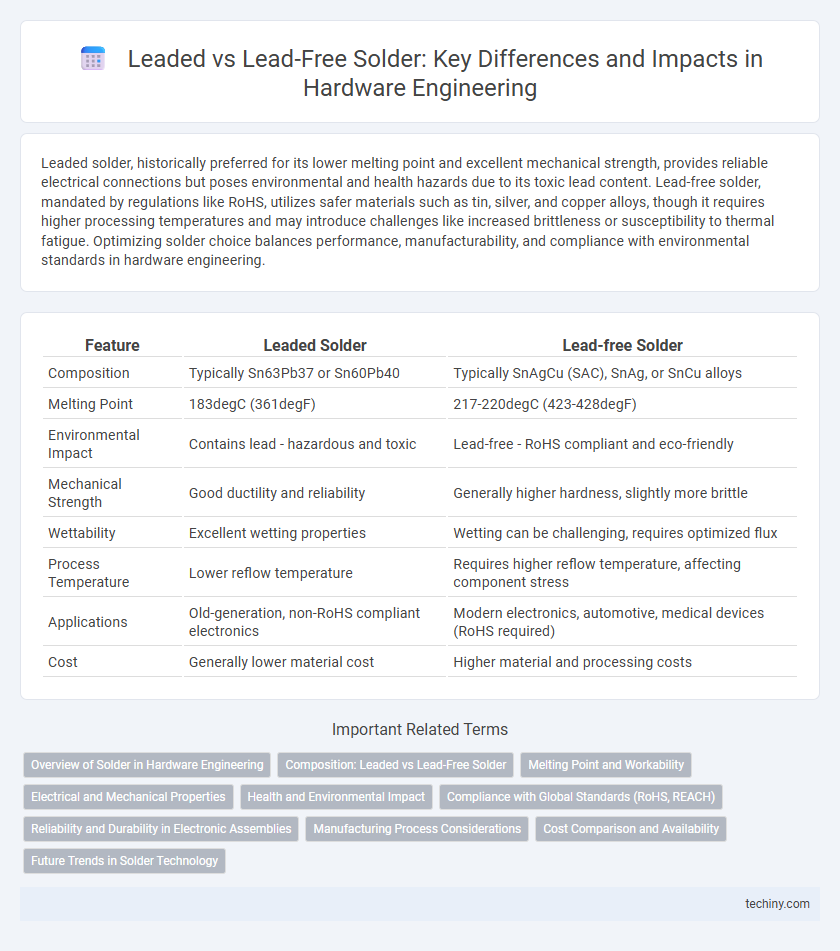

Leaded vs Lead-free solder Infographic
