techiny.com Linear regulators provide a simple, low-noise solution with fast transient response but often sacrifice efficiency, making them ideal for low-power applications. Switching regulators offer higher efficiency by converting excess voltage into current, allowing for better heat management and extended battery life in high-power devices. Choosing between these regulators depends on the application's power requirements, noise sensitivity, and thermal constraints.
Table of Comparison
| Feature | Linear Regulator | Switching Regulator |
|---|---|---|
| Operating Principle | Voltage drop across transistor | Pulse-width modulation (PWM) with inductor |
| Efficiency | Typically 40%-60% | Typically 80%-95% |
| Output Noise | Low noise, minimal ripple | Higher noise, requires filtering |
| Size | Smaller, fewer components | Larger, includes inductor and capacitors |
| Heat Dissipation | High, needs heat sinks | Low, less heat generated |
| Cost | Lower cost, simpler design | Higher cost, complex circuitry |
| Application | Low power, noise-sensitive circuits | High power, efficiency-critical applications |
| Voltage Regulation | Good for small voltage drops | Effective for large voltage differences |
Introduction to Voltage Regulators in Hardware Engineering
Voltage regulators play a crucial role in hardware engineering by maintaining a stable output voltage regardless of fluctuations in input voltage or load conditions. Linear regulators provide a simple, low-noise solution ideal for low-power applications but suffer from lower efficiency and heat dissipation challenges. Switching regulators offer higher efficiency through rapid switching and energy storage elements, making them suitable for power-intensive hardware designs requiring precise voltage control.
Linear Regulators: Principles and Applications
Linear regulators provide a simple and reliable method for voltage regulation by dissipating excess power as heat to maintain a constant output voltage. They are preferred in low-noise applications such as audio and RF circuits due to their excellent noise and ripple performance. Key applications include powering sensitive analog components and providing clean voltage rails in precision instrumentation.
Switching Regulators: Fundamentals and Types
Switching regulators use high-frequency switching elements and energy storage components like inductors and capacitors to efficiently convert voltage levels, offering superior power efficiency compared to linear regulators. These regulators include buck (step-down), boost (step-up), and buck-boost types, each tailored to specific voltage conversion needs and system requirements. Their ability to maintain stable output voltage under varying load conditions while minimizing heat dissipation makes them essential in modern power management applications.
Efficiency Comparison: Linear vs Switching Regulators
Linear regulators offer lower efficiency, typically around 40-60%, due to energy dissipation as heat during voltage regulation. Switching regulators achieve higher efficiency, often between 80-95%, by rapidly switching and storing energy in inductors or capacitors, minimizing power loss. The choice depends on application requirements, balancing efficiency, noise sensitivity, and complexity.
Noise and Ripple Performance
Linear regulators provide superior noise and ripple performance by maintaining a stable output voltage with minimal switching activity, resulting in low electromagnetic interference (EMI) and clean power ideal for sensitive analog circuits. Switching regulators, while more efficient and capable of handling higher power loads, inherently produce higher noise and ripple due to their high-frequency switching operation, which can necessitate additional filtering components to meet stringent noise requirements. Engineers must evaluate the trade-offs between efficiency and noise when selecting regulators, prioritizing linear regulators for low-noise applications and switching types for energy-efficient power delivery.
Thermal Management and Heat Dissipation
Linear regulators dissipate excess voltage as heat, resulting in significant thermal management challenges, especially at high input-to-output voltage differentials and currents. Switching regulators operate with high efficiency by rapidly switching the current on and off, reducing heat generation and simplifying heat dissipation requirements. Effective thermal management in linear regulators often requires larger heat sinks or active cooling, whereas switching regulators typically demand smaller or no heat sinks due to lower power loss.
Size, Cost, and Component Complexity
Linear regulators offer simplicity with fewer external components, resulting in smaller PCB footprints and lower noise, but they generally dissipate more heat and are less efficient, leading to larger heat sinks and overall size. Switching regulators are more complex, requiring inductors, capacitors, and switching elements, which increases component count and design effort, but they excel in efficiency and thermal performance, reducing overall size in high-power applications despite higher initial cost. Cost-wise, linear regulators are cheaper and preferred for low-power, low-noise applications, while switching regulators have higher upfront costs but lower long-term energy expenses due to better efficiency.
Load and Line Regulation Characteristics
Linear regulators exhibit superior line and load regulation with minimal output voltage variation under changing input voltage and load conditions, ensuring stable power delivery for sensitive analog circuits. Switching regulators offer higher efficiency but typically demonstrate greater output voltage ripple and less precise load and line regulation due to their switching nature. Optimal choice depends on balancing the need for tight regulation against power efficiency requirements in hardware design.
Selection Criteria for Regulator Type in Circuit Design
Selection criteria for choosing between a linear regulator and a switching regulator in circuit design depend primarily on efficiency, noise sensitivity, and thermal considerations. Linear regulators offer low noise and simplicity, making them ideal for noise-sensitive analog circuits with low power requirements, while switching regulators provide higher efficiency and better heat dissipation for applications with significant voltage drops and higher current demands. Designers must also consider factors such as output voltage stability, ripple tolerance, and physical size constraints when selecting the appropriate regulator type.
Real-World Use Cases and Industry Examples
Linear regulators provide low-noise, precise voltage control and are ideal for sensitive analog circuits in medical devices and audio equipment where signal integrity is critical. Switching regulators excel in power efficiency and heat dissipation, making them the preferred choice for battery-powered applications such as smartphones, laptops, and electric vehicles. Industrial automation systems often integrate both types, using linear regulators for sensor interfaces and switching regulators for motor drives to optimize overall system performance.

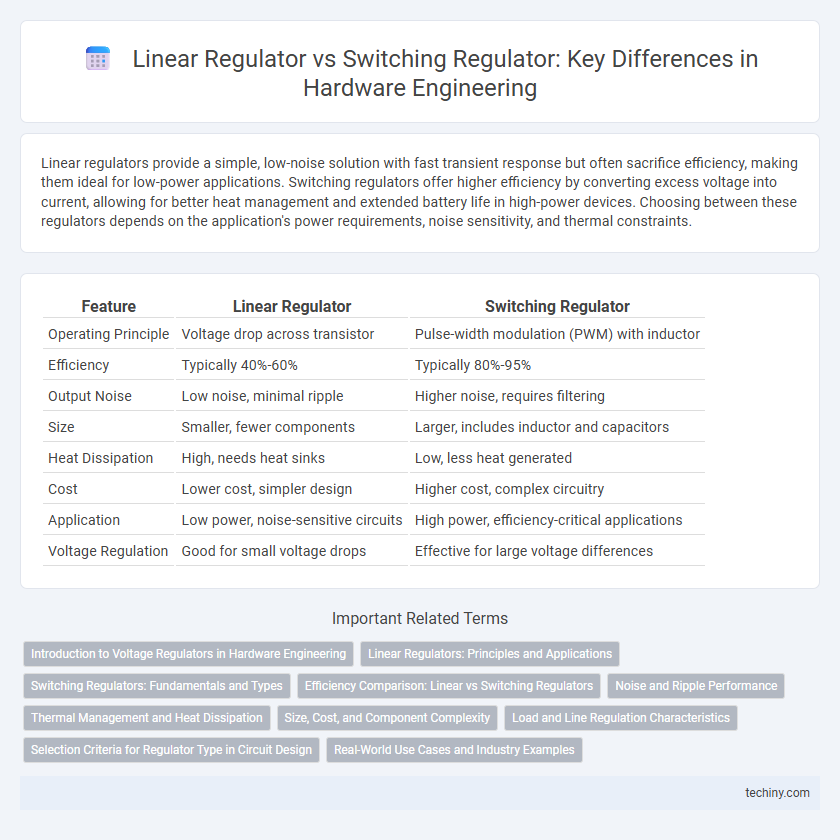

Linear regulator vs Switching regulator Infographic
