techiny.com Mask ROM offers high reliability and fast read speeds due to its fixed data pattern programmed during manufacturing, making it ideal for mass-produced devices with unchanging firmware. Flash memory provides greater flexibility with its electrically erasable and reprogrammable capability, enabling firmware updates and data storage modifications after deployment. While Mask ROM is cost-effective for large volumes, Flash memory excels in applications requiring frequent updates and versatility.
Table of Comparison
| Feature | Mask ROM | Flash Memory |
|---|---|---|
| Definition | Read-only memory programmed during manufacturing | Non-volatile memory with reprogrammable capability |
| Data Retention | Permanent, data fixed at fabrication | Retains data without power, up to 10 years |
| Reprogrammability | Not reprogrammable | Supports multiple write/erase cycles |
| Cost | Low initial unit cost for high volume | Higher per unit cost, lower setup cost |
| Speed | Faster read access time | Slower read/write speed compared to Mask ROM |
| Usage | Fixed firmware, mass production | Firmware updates, data storage |
| Manufacturing | Programmed during chip fabrication | Programmed post-manufacturing via electrical signals |
Introduction to Mask ROM and Flash Memory
Mask ROM is a type of non-volatile memory where data is permanently programmed during the manufacturing process, making it ideal for high-volume production with fixed data. Flash memory offers rewritable and non-volatile storage, enabling data to be erased and reprogrammed electrically, commonly used in embedded systems and portable devices. Both memory types serve different purposes based on flexibility and cost, with Mask ROM excelling in low unit cost for static data and Flash providing versatility for dynamic data storage.
Fundamental Working Principles
Mask ROM stores data permanently during fabrication by encoding information into the physical structure of the silicon chip, using programmable metal layers or dopant patterns. Flash memory utilizes floating-gate transistors to trap and release electrons through electrical programming and erasing cycles, enabling rewritable non-volatile storage. Mask ROM's fundamental principle relies on fixed data patterns embedded during manufacturing, while Flash memory operates through charge retention mechanisms in transistor gates for dynamic data manipulation.
Key Differences in Architecture
Mask ROM is a non-volatile memory with a fixed data pattern permanently embedded during the manufacturing process, making it cost-effective for high-volume production but inflexible for updates. Flash memory uses floating-gate transistors to allow electrical erasure and reprogramming, offering versatility and ease of modification after fabrication. The fundamental architectural difference lies in Mask ROM's pre-defined data storage versus Flash memory's programmable and erasable cells enabling dynamic data management.
Data Storage and Retention Capabilities
Mask ROM offers permanent data storage with high retention capabilities, ideal for embedded systems requiring unalterable firmware. Flash memory provides flexible, rewritable storage but experiences limited retention over time due to electron charge loss in floating-gate transistors. Mask ROM's data stability surpasses flash memory, making it preferable for long-term data preservation in hardware engineering applications.
Programming and Reprogramming Methods
Mask ROM programming involves photolithographic processes during semiconductor fabrication, embedding data permanently and preventing any post-production changes. Flash memory utilizes electrical charge trapping in floating-gate transistors, allowing data to be electronically programmed and erased multiple times via Fowler-Nordheim tunneling or hot-electron injection. Unlike Mask ROM, flash memory supports in-system reprogramming, enabling firmware updates and data modification without hardware replacement.
Performance: Speed and Efficiency
Mask ROM offers faster read speeds due to its fixed, pre-programmed data structure, eliminating the need for erase or write cycles inherent in Flash memory. Flash memory provides greater flexibility with rewritable storage but experiences slower write speeds and higher power consumption during programming operations. For hardware engineering applications demanding rapid data access and high efficiency, Mask ROM outperforms Flash memory in read performance while sacrificing versatility.
Reliability and Endurance
Mask ROM offers superior reliability for embedded systems due to its fixed data pattern and resistance to radiation-induced errors, making it ideal for critical applications with long lifecycle requirements. Flash memory provides higher endurance with the ability to undergo thousands to millions of write/erase cycles, suitable for applications requiring frequent updates or firmware modifications. However, Flash memory's susceptibility to wear-out mechanisms and data retention degradation necessitates wear-leveling algorithms and error correction codes to maintain reliability over time.
Typical Applications in Hardware Engineering
Mask ROM is typically used in hardware engineering for fixed-function devices such as microcontrollers and embedded systems where code permanence and low unit cost are critical. Flash memory is favored in applications requiring reprogrammability and flexibility, including firmware updates, data storage in handheld devices, and automotive control systems. Both memory types play essential roles in optimizing hardware performance based on application-specific demands.
Cost Comparison and Scalability
Mask ROM offers lower unit costs in high-volume production due to its fixed data programming during manufacturing, making it economically advantageous for large-scale deployments. Flash memory incurs higher initial costs but provides greater scalability and flexibility with reprogrammable storage, ideal for iterative development and updates. Cost-efficiency for Mask ROM diminishes at smaller volumes, whereas Flash memory supports scalable production without additional fabrication expenses.
Future Trends and Technological Advancements
Future trends in hardware engineering indicate Mask ROM will continue its niche role in high-volume, cost-sensitive applications due to its low unit cost and high reliability, while Flash memory dominates flexible and reprogrammable storage needs with ongoing enhancements in density and endurance. Emerging technologies such as 3D NAND and embedded Flash innovations are extending Flash memory's scalability and performance, making it suitable for evolving IoT and AI hardware platforms. Advancements in non-volatile memory research, including resistive RAM (ReRAM) and phase-change memory (PCM), may complement or compete with both Mask ROM and Flash, signaling a diversification of memory options tailored for next-generation embedded and consumer electronics.

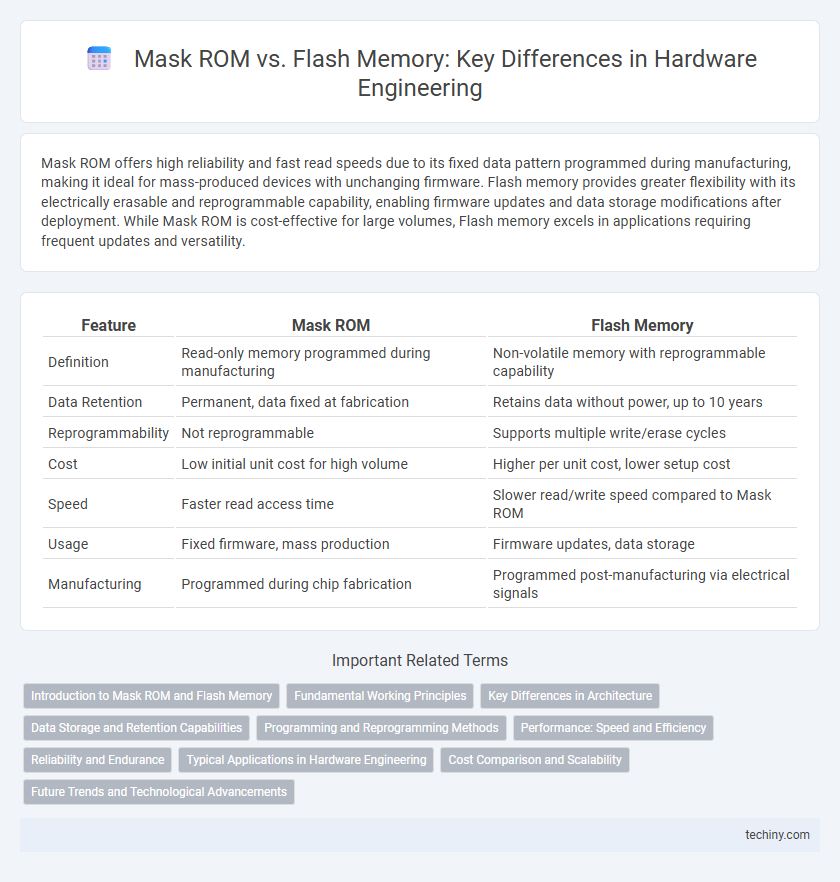

Mask ROM vs Flash Memory Infographic
