techiny.com Multimeters measure electrical properties such as voltage, current, and resistance with high precision, making them essential for troubleshooting and verifying circuit functionality. Oscilloscopes provide a dynamic visual representation of electrical signals over time, allowing engineers to analyze waveforms, frequency, and signal integrity in complex circuits. Choosing between a multimeter and an oscilloscope depends on whether static measurements or detailed signal analysis is required in hardware diagnostics.
Table of Comparison
| Feature | Multimeter | Oscilloscope |
|---|---|---|
| Primary Use | Measures voltage, current, resistance | Visualizes electrical signals, waveforms |
| Measurement Type | Static values | Dynamic signal analysis |
| Signal Display | Numeric | Graphical waveform |
| Frequency Range | Up to ~10 kHz | Up to several GHz |
| Accuracy | High for DC measurements | Variable, depends on probe and bandwidth |
| Portability | Compact and handheld | Usually larger, bench or portable models |
| Cost | Low to moderate | Moderate to high |
| Typical Use Case | Basic circuit testing, troubleshooting | Signal integrity, waveform characterization |
Introduction to Multimeters and Oscilloscopes
Multimeters measure voltage, current, and resistance, providing essential diagnostics for electrical circuits through numerical readouts. Oscilloscopes graphically display signal waveforms, enabling detailed analysis of voltage changes over time with high precision. Both tools are critical for hardware engineers to troubleshoot and validate electronic designs effectively.
Understanding the Core Functions
A multimeter measures electrical properties such as voltage, current, and resistance, providing static and quantitative data ideal for circuit diagnostics and troubleshooting. An oscilloscope, however, captures and displays time-varying signals, allowing engineers to analyze waveform shapes, frequencies, and transient events with high temporal resolution. Understanding the core functions of each instrument is essential for selecting the right tool to diagnose hardware issues accurately and optimize electronic system performance.
Key Differences in Measurement Capabilities
Multimeters primarily measure electrical values such as voltage, current, and resistance with high accuracy in DC and low-frequency AC circuits, making them ideal for routine diagnostics. Oscilloscopes provide time-domain visualization of electrical signals, capturing waveform shape, frequency, amplitude, and transient events, essential for analyzing complex AC signals and dynamic behaviors. The key distinction lies in multimeters offering quantitative point measurements, whereas oscilloscopes deliver real-time graphical insights into signal variations over time.
Applications in Hardware Engineering
Multimeters are essential for measuring electrical parameters such as voltage, current, and resistance, making them ideal for troubleshooting circuits and verifying component functionality in hardware engineering. Oscilloscopes provide detailed insights into signal waveforms and timing analysis, crucial for debugging complex analog and digital circuits and ensuring signal integrity. Hardware engineers rely on multimeters for basic diagnostics and oscilloscopes for in-depth analysis of dynamic electronic behaviors.
Accuracy and Resolution Comparison
Multimeters provide accurate voltage, current, and resistance measurements with resolutions typically ranging from microvolts to millivolts, making them ideal for precise DC and low-frequency signals. Oscilloscopes offer higher resolution in time and amplitude for dynamic signal analysis, capturing rapid voltage changes with sample rates often exceeding several giga-samples per second and resolutions of 8 to 16 bits. The accuracy of oscilloscopes depends heavily on bandwidth and probe quality, while multimeters excel in stable, static measurements due to their precise analog-to-digital converters and calibration standards.
Ease of Use and Learning Curve
Multimeters offer a straightforward interface ideal for beginners, with simple functionality for measuring voltage, current, and resistance, making them easier to use and learn. Oscilloscopes require understanding of waveform analysis and trigger settings, presenting a steeper learning curve but providing detailed time-based signal insights. For hardware engineers, mastering multimeters enables basic diagnostics quickly, while oscilloscope proficiency is essential for in-depth troubleshooting of complex electronic circuits.
Cost Considerations and Budget Impact
Multimeters generally have a lower initial cost, making them a budget-friendly choice for basic electrical measurements such as voltage, current, and resistance. Oscilloscopes, while more expensive due to their advanced capabilities in visualizing signal waveforms and frequency analysis, provide critical insights that can prevent costly troubleshooting and rework in complex hardware projects. Investing in an oscilloscope may increase upfront expenses but can reduce long-term costs by improving diagnostic accuracy and speeding up design validation.
Portability and Hardware Design Implications
Multimeters offer compact, handheld designs that enhance portability for field diagnostics, with simplified hardware enabling battery-powered operation and ease of use. Oscilloscopes, particularly benchtop models, require more complex circuitry and larger displays, which compromise portability but provide advanced signal analysis capabilities. Portable oscilloscopes integrate specialized hardware and miniaturized components to balance mobility with functionality, impacting form factor and power management strategies.
Choosing the Right Tool for Your Project
Selecting between a multimeter and an oscilloscope depends on the specific measurement needs of your hardware engineering project. Multimeters excel at providing accurate voltage, current, and resistance readings for steady-state signals, while oscilloscopes visualize signal waveforms and transient events, crucial for diagnosing complex circuit behavior. Understanding your project requirements, such as signal frequency range and diagnostic depth, ensures the right tool enhances precision and efficiency in troubleshooting and analysis.
Future Trends in Electronic Test Equipment
Future trends in electronic test equipment include increased integration of multimeters and oscilloscopes with AI-powered predictive diagnostics to enhance fault detection accuracy. Advancements in wireless connectivity and cloud-based data analytics are enabling real-time remote monitoring and collaborative testing environments. Miniaturization and energy-efficient designs are driving portable, multifunctional devices that cater to evolving hardware engineering demands.

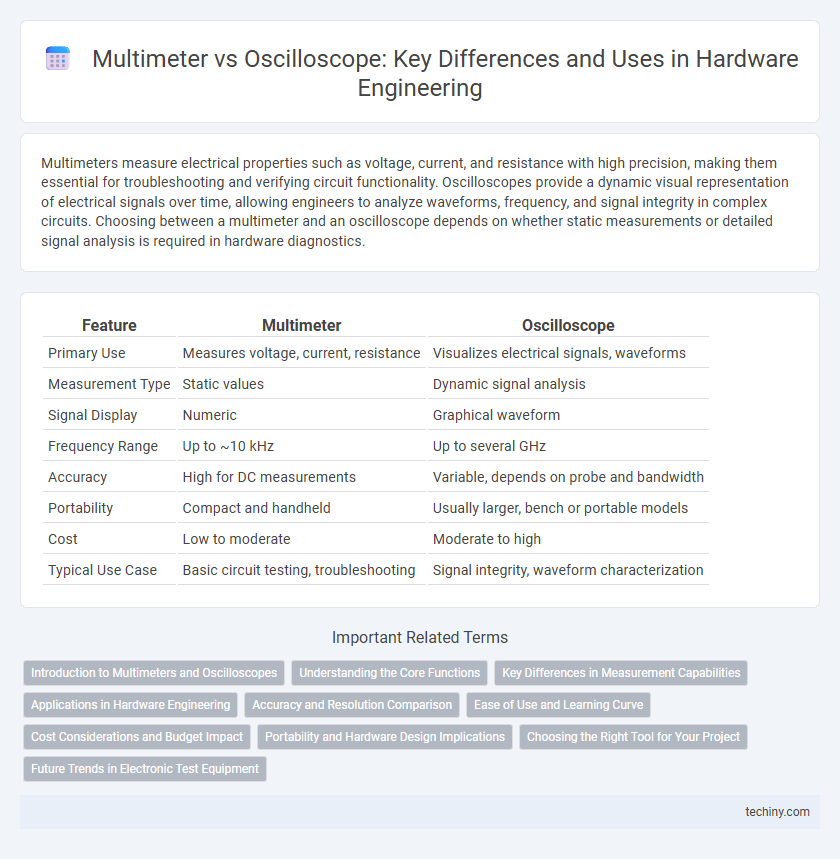

Multimeter vs Oscilloscope Infographic
