techiny.com NAND gates and NOR gates are fundamental building blocks in digital hardware engineering, each performing unique logical operations crucial for circuit design. NAND gates output false only when all inputs are true, making them widely used for creating universal logic functions, while NOR gates output true only when all inputs are false, offering a complementary function with advantages in simplifying certain circuits. Engineers select between NAND and NOR gates based on factors such as power consumption, propagation delay, and ease of implementation in programmable logic devices.
Table of Comparison
| Feature | NAND Gate | NOR Gate |
|---|---|---|
| Definition | Output is LOW only when all inputs are HIGH | Output is HIGH only when all inputs are LOW |
| Boolean Expression | Y = !(A * B) | Y = !(A + B) |
| Logic Symbol | AND gate symbol with a NOT bubble | OR gate symbol with a NOT bubble |
| Truth Table Highlights | Output LOW only at all HIGH inputs | Output HIGH only at all LOW inputs |
| Usage | Universal gate, commonly used in digital circuit design | Universal gate, typically used for implementing NOR logic functions |
| Propagation Delay | Generally faster due to simpler transistor arrangement | Relatively slower compared to NAND gates |
| Power Consumption | Lower power consumption in CMOS technology | Higher power consumption compared to NAND gates |
Introduction to NAND and NOR Gates
NAND and NOR gates are fundamental building blocks in digital electronics, performing basic logical operations essential for hardware design. A NAND gate outputs a low signal only when all its inputs are high, while a NOR gate outputs a high signal only when all its inputs are low. Understanding these gates is crucial for designing complex circuits, as they serve as universal gates capable of implementing any Boolean function.
Fundamental Operation Principles
NAND gates perform the fundamental operation of outputting a low signal only when all inputs are high, embodying the logical AND function followed by a NOT operation. NOR gates, in contrast, output a high signal exclusively when all inputs are low, representing the logical OR function followed by a NOT operation. Both gates serve as universal building blocks in digital circuits, enabling the implementation of any logic function through their fundamental inversion of AND and OR operations.
Symbol and Truth Table Comparison
The NAND gate symbol is represented by an AND gate with a small circle (inversion bubble) at the output, while the NOR gate symbol is an OR gate with the inversion bubble at the output; this visual difference highlights their complementary logic functions. The NAND gate truth table outputs 0 only when all inputs are 1, producing 1 in all other input combinations, whereas the NOR gate outputs 1 only when all inputs are 0, resulting in 0 for any high input. These distinctions in symbols and truth tables are fundamental for hardware engineers designing digital circuits and logic systems.
Universal Gate Properties
NAND gates and NOR gates are both universal gates, capable of implementing any Boolean function through appropriate combinations. NAND gates are often preferred in hardware engineering due to their faster switching times and lower propagation delay compared to NOR gates. The universality of both gates enables the design of complex digital circuits using only one type of gate, simplifying manufacturing and reducing costs.
Logic Circuit Implementation
NAND gates are fundamental in hardware engineering due to their versatility in logic circuit implementation, as any Boolean function can be realized using only NAND gates, making them the building blocks for complex digital systems. NOR gates similarly offer universal logic capability, enabling the construction of any logical function solely with NOR gates, often simplifying the design of programmable logic arrays and memory circuits. The choice between NAND and NOR gates in circuit design heavily depends on factors such as power consumption, propagation delay, and manufacturing technology, impacting overall system performance and efficiency.
Power Consumption Differences
NAND gates typically consume less power than NOR gates under the same operating conditions due to their transistor arrangement, which minimizes switching activity and reduces short-circuit current. In CMOS technology, NAND gates require fewer transistors in the pull-down network, leading to lower dynamic power consumption compared to NOR gates that have a more complex pull-up network. Efficient power management in digital circuits often favors NAND gates to optimize battery life and thermal performance in hardware engineering designs.
Speed and Propagation Delay
NAND gates typically exhibit faster switching speeds and lower propagation delay compared to NOR gates due to their transistor-level structure that requires fewer transistor stages in series. The propagation delay of a NAND gate is reduced because it uses parallel transistors on the pull-down network, enhancing speed. In contrast, NOR gates often have higher propagation delay as their series transistor configuration results in slower signal transitions.
Practical Applications in Hardware Design
NAND gates are widely used in hardware design for building combinational logic circuits due to their functional completeness and ease of implementation in transistor-transistor logic (TTL) and complementary metal-oxide-semiconductor (CMOS) technologies. NOR gates serve critical roles in creating simple flip-flops and memory elements by providing efficient realization of set-reset latches and control logic. Both gate types are fundamental in optimizing circuit speed, power consumption, and integration density in digital systems like microprocessors and programmable logic devices.
Cost and Efficiency Considerations
NAND gates typically offer lower manufacturing costs and higher efficiency due to their simpler transistor arrangements, making them preferred in large-scale integrated circuits. NOR gates, while slightly more expensive to produce, provide faster switching speeds in specific logic configurations but generally consume more power. Cost-efficiency in hardware design often favors NAND gates for complex logic implementations requiring minimal power consumption and compact layouts.
NAND vs NOR Gate: Which to Choose?
NAND gates offer faster switching speeds and lower power consumption compared to NOR gates, making them ideal for high-performance digital circuits and memory designs like CMOS technology. NOR gates provide simpler implementation in certain logic functions and are often preferred in wired-logic applications and programmable logic arrays. Choosing between NAND and NOR gates depends on the specific requirements of speed, power efficiency, and circuit complexity in hardware engineering projects.

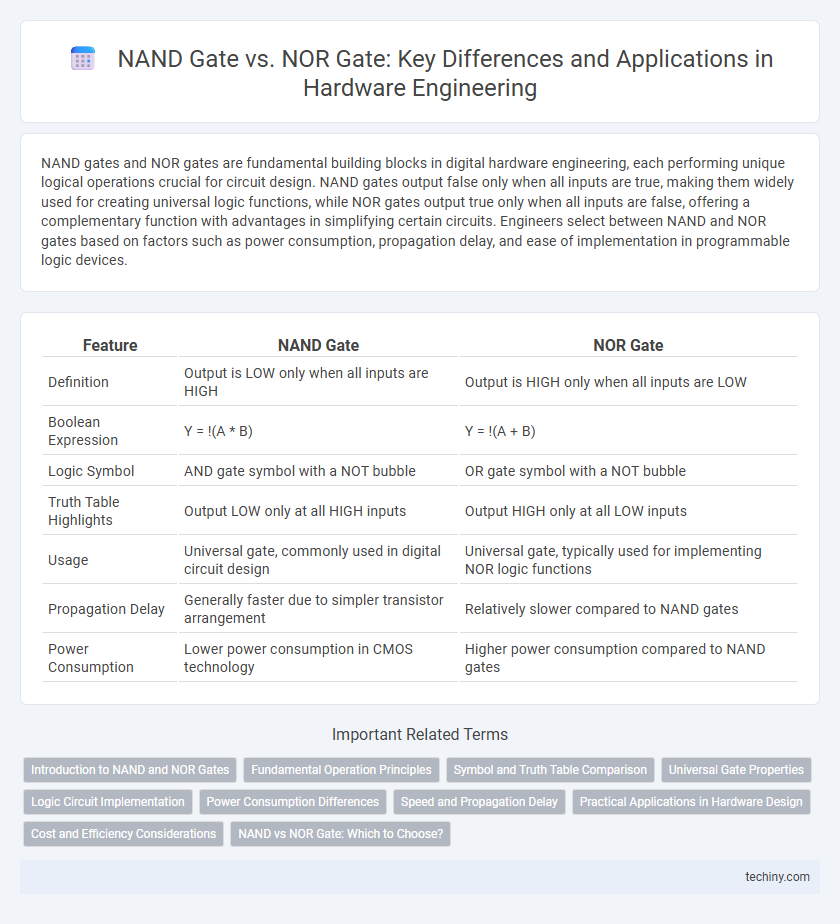

NAND Gate vs NOR Gate Infographic
