techiny.com NOR flash provides fast random read access, making it ideal for code storage and execution in embedded systems, while NAND flash offers higher storage density and faster write/erase speeds, suited for data storage applications like SSDs and memory cards. NOR flash has a more complex architecture and higher cost per bit, whereas NAND flash features a simpler design and lower cost, enabling greater capacity at reduced prices. Engineers select between NOR and NAND flash based on the trade-offs of performance, reliability, and cost required by their specific hardware applications.
Table of Comparison
| Feature | NOR Flash | NAND Flash |
|---|---|---|
| Memory Architecture | Parallel access, random byte-level read | Serial access, block-level read/write |
| Read Speed | Fast random access (~100 ns) | Slower random access, faster sequential read |
| Write/Erase Speed | Slower, erase in blocks (64KB typical) | Faster block erase/write (typically 128KB+) |
| Endurance | Up to 100,000 program/erase cycles | 10,000 to 100,000 program/erase cycles |
| Density & Cost | Lower density, higher cost per MB | Higher density, lower cost per MB |
| Use Cases | Code execution (XIP), firmware storage | Mass storage, data logging, SSDs |
| Error Management | Simple error correction, fewer ECC needs | Advanced ECC required, due to higher bit error rate |
Understanding NOR Flash and NAND Flash
NOR flash memory provides fast random access and execute-in-place capabilities, making it ideal for storing firmware and code in embedded systems. NAND flash offers high-density storage and faster write/erase cycles, which is preferred for data storage and multimedia applications. Understanding the distinct architectures and performance characteristics of NOR and NAND flash is critical for selecting the appropriate non-volatile memory in hardware engineering designs.
Core Architecture Differences
NOR flash memory features a parallel architecture with each memory cell connected directly to bit lines and word lines, enabling random access and fast read speeds ideal for code execution. NAND flash organizes cells in series strings, resulting in higher density and lower cost per bit, but it relies on block-based access that limits random reads and increases latency. Core differences include NOR's straightforward cell-level access versus NAND's serial cell chaining, which impacts speed, endurance, and use case suitability in embedded systems and storage applications.
Read and Write Speed Comparison
NOR flash memory offers faster read speeds due to its parallel architecture, enabling direct byte-level access ideal for code execution. NAND flash exhibits higher write speeds and better write endurance, making it suitable for bulk data storage in applications requiring frequent updates. The trade-off between NOR's rapid random reads and NAND's efficient sequential writes drives their distinct use cases in hardware engineering.
Data Retention and Endurance
NOR flash memory offers superior data retention, typically maintaining integrity for up to 20 years under optimal conditions, making it ideal for firmware storage in embedded systems. NAND flash provides higher endurance with write/erase cycles ranging from 3,000 to 100,000, supporting frequent data updates but generally retaining data for around 1 to 3 years. Selecting between NOR and NAND flash depends on balancing the need for long-term data retention versus high write endurance in hardware design.
Storage Density and Capacity
NOR flash offers lower storage density and capacity compared to NAND flash due to its architecture optimized for fast random access and code execution. NAND flash achieves higher storage density and larger capacity by utilizing a denser cell arrangement and multi-level cell (MLC) technology, making it ideal for mass data storage. These differences impact design choices in hardware engineering for applications requiring either rapid code access or extensive data storage.
Cost and Scalability Factors
NOR flash memory offers higher cost per bit compared to NAND flash due to its simpler architecture and slower cell density scaling, making it less scalable for large storage applications. NAND flash excels in cost efficiency and scalability, benefiting from higher cell density, lower manufacturing costs, and better performance in high-capacity storage solutions. These factors make NAND flash the preferred choice for mass storage, while NOR flash is suited for applications requiring fast random access and code execution.
Use Cases in Embedded Systems
NOR flash memory offers fast random access and execute-in-place (XIP) capabilities, making it ideal for storing firmware and boot code in embedded systems. NAND flash provides higher storage density and faster write/erase cycles, which suits it well for data storage applications such as logging, multimedia, and file systems in embedded devices. The choice between NOR and NAND flash hinges on whether fast read access or large capacity and endurance are the primary requirements for the embedded application.
Reliability and Error Management
NOR flash memory offers higher reliability and better error management through its inherent architecture, supporting random access and byte-level erasing that minimizes data corruption risks. NAND flash, while more cost-effective and higher density, relies on advanced error correction codes (ECC) and wear leveling to maintain data integrity over repeated program/erase cycles. For mission-critical applications demanding strong data retention and error resilience, NOR flash is preferred despite its lower density compared to NAND flash.
Power Consumption Considerations
NOR flash memory typically consumes more power during write and erase cycles due to its architecture that allows random access, while NAND flash offers lower power consumption with block-based operations optimizing energy efficiency. During standby mode, NOR flash can be more power-efficient because it supports fast read access with reduced active time. Power management in hardware design often favors NAND flash for applications requiring high-density storage with minimal energy usage, whereas NOR flash is preferred for code execution demanding consistent read performance.
Future Trends in Flash Memory Technology
Emerging trends in flash memory technology emphasize the transition from traditional NOR and NAND flash to advanced 3D NAND and resistive RAM (ReRAM) for higher density and faster performance. NOR flash continues to be favored for code execution in embedded systems due to its low latency, while NAND flash dominates mass storage with ongoing innovations in multi-level cell (MLC) and quad-level cell (QLC) technologies enhancing capacity and cost efficiency. Future developments target increased endurance, reduced power consumption, and integration of neuromorphic computing capabilities to meet evolving demands in AI and IoT applications.

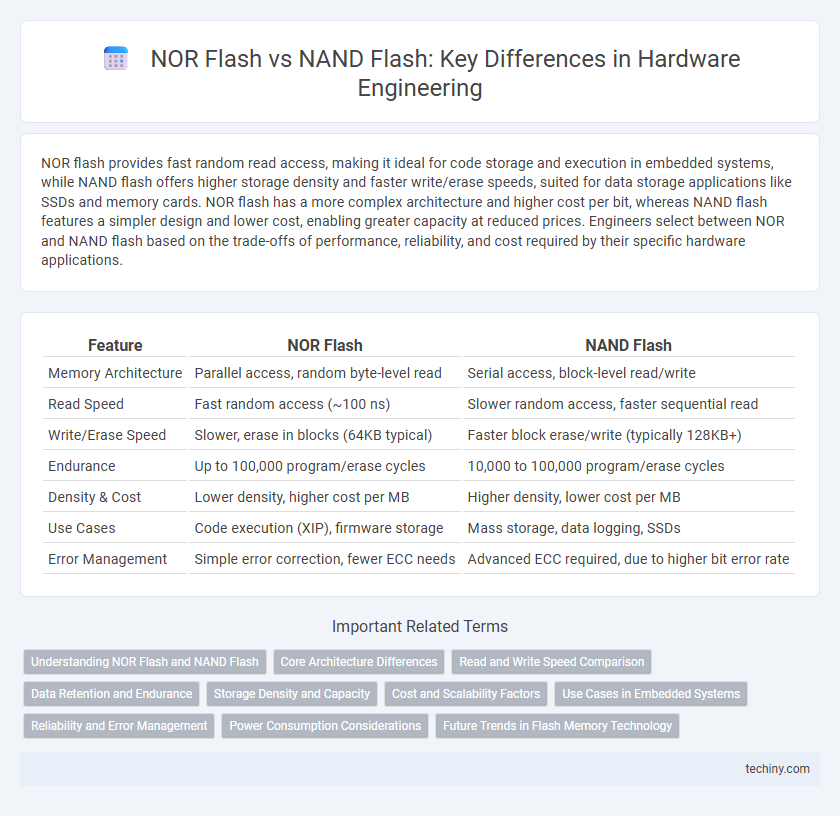

NOR flash vs NAND flash Infographic
