techiny.com Optocouplers provide electrical isolation by using light to transmit signals between circuits, making them ideal for high-speed switching and low voltage applications. Relays use electromagnetic coils to mechanically switch contacts, enabling them to handle higher current loads and voltages but with slower response times. Choosing between an optocoupler and a relay depends on the application's requirements for isolation, switching speed, and power handling.
Table of Comparison
| Feature | Optocoupler | Relay |
|---|---|---|
| Working Principle | Light transmission via LED and phototransistor | Electromagnetic switch with mechanical contacts |
| Isolation Voltage | Typically 5kV to 7.5kV | Typically 1.5kV to 4kV |
| Switching Speed | Microseconds to nanoseconds | Milliseconds |
| Lifetime | 10^12 cycles (solid-state) | 10^5 to 10^7 cycles (mechanical) |
| Size | Compact and lightweight | Bulky due to coil and contacts |
| Power Consumption | Low (LED driven) | Higher (coil energized) |
| Noise | Silent operation | Audible clicking noise |
| Application | Signal isolation, fast switching in electronics | Switching high current or voltage loads |
| Cost | Moderate | Varies, generally higher for high power relays |
Introduction to Optocouplers and Relays
Optocouplers, also known as optoisolators, use light to electrically isolate input and output circuits, providing high-speed signal transmission and protecting sensitive components from voltage spikes. Relays employ an electromagnetic coil to mechanically switch contacts, enabling the control of high power devices through low power signals. Both components serve as essential isolation devices in hardware engineering, with optocouplers offering faster response and smaller size, while relays accommodate higher current handling and physical separation.
Basic Working Principles
Optocouplers use light to electrically isolate input and output by transmitting signals through an LED and photodetector, ensuring high-speed and noise-free signal transfer. Relays function by electromagnetically actuating a switch to control high-power circuits with physical contacts, enabling isolation but with slower switching and mechanical wear. The solid-state nature of optocouplers provides longer operational life and faster response compared to the mechanical switching of relays.
Key Differences in Functionality
Optocouplers use light to electrically isolate input and output signals, enabling high-speed and noise-immune signal transmission without mechanical parts. Relays operate via electromagnetic coils to mechanically switch circuits, providing high power handling and galvanic isolation but with slower response times and wear concerns. Optocouplers excel in low-voltage, fast-switching applications, whereas relays are preferred for switching high-voltage or high-current loads.
Electrical Isolation: Optocoupler vs Relay
Optocouplers provide electrical isolation between input and output circuits using an LED and photodetector, ensuring minimal signal interference and high-speed switching. Relays offer isolation through a physical separation by using an electromagnetic coil and mechanical contacts, which can handle higher voltages and currents but with slower response times. Optocouplers excel in low-power, high-frequency applications, whereas relays are preferred for high-power loads requiring robust isolation.
Switching Speed Comparison
Optocouplers typically achieve switching speeds in the microsecond range, often between 3 to 10 microseconds, due to their semiconductor-based design, enabling faster isolation in signal transmission. Relays, relying on mechanical movement, usually operate at switching speeds from several milliseconds up to tens of milliseconds, making them significantly slower than optocouplers. This speed difference is critical in high-frequency circuits where rapid signal isolation and switching are required, favoring optocouplers over relays for performance-sensitive hardware applications.
Power Handling Capabilities
Optocouplers typically handle low power signals and provide electrical isolation with power ratings usually below 1 watt, making them suitable for signal-level applications. Relays offer significantly higher power handling capabilities, often managing loads ranging from a few watts up to several kilowatts, due to their mechanical switching design. The choice between an optocoupler and relay depends on the required isolation voltage, load current, and power dissipation in the specific application.
Applications in Modern Electronics
Optocouplers provide electrical isolation and signal transmission in low-power, high-speed communication circuits, making them ideal for microcontroller interfaces and sensor signal conditioning. Relays excel in controlling high-voltage or high-current loads, commonly used in power management, motor control, and industrial automation systems. Both components are crucial in modern electronics for protecting sensitive circuits while enabling effective control of diverse electrical loads.
Reliability and Longevity
Optocouplers offer superior reliability and longer lifespan due to their solid-state design, which eliminates mechanical wear and contact degradation seen in relays. Relays, despite their ability to handle higher currents and voltages, suffer from contact erosion and mechanical fatigue, limiting their operational durability in frequent switching applications. For high-reliability and long-lifespan requirements, especially in low-power signal isolation, optocouplers are the preferred choice.
Integration and Circuit Design Considerations
Optocouplers offer superior integration in compact circuit designs due to their small size and solid-state nature, eliminating mechanical wear and enabling high-speed signal isolation. Relays, while providing higher current capacity and galvanic isolation, typically require larger PCB footprints and additional driving circuitry, influencing overall design complexity. Choosing between optocouplers and relays depends on voltage isolation needs, switching speed, load current specifications, and space constraints in the hardware engineering project.
Cost and Availability Analysis
Optocouplers generally offer a more cost-effective solution for low-current signal isolation with widespread availability due to their solid-state construction and mass production. Relays, while often more expensive upfront, provide higher voltage and current handling capabilities but can be limited by mechanical wear and less consistent availability in specialized configurations. The choice depends on balancing initial cost constraints against long-term reliability and specific application demands in hardware engineering projects.

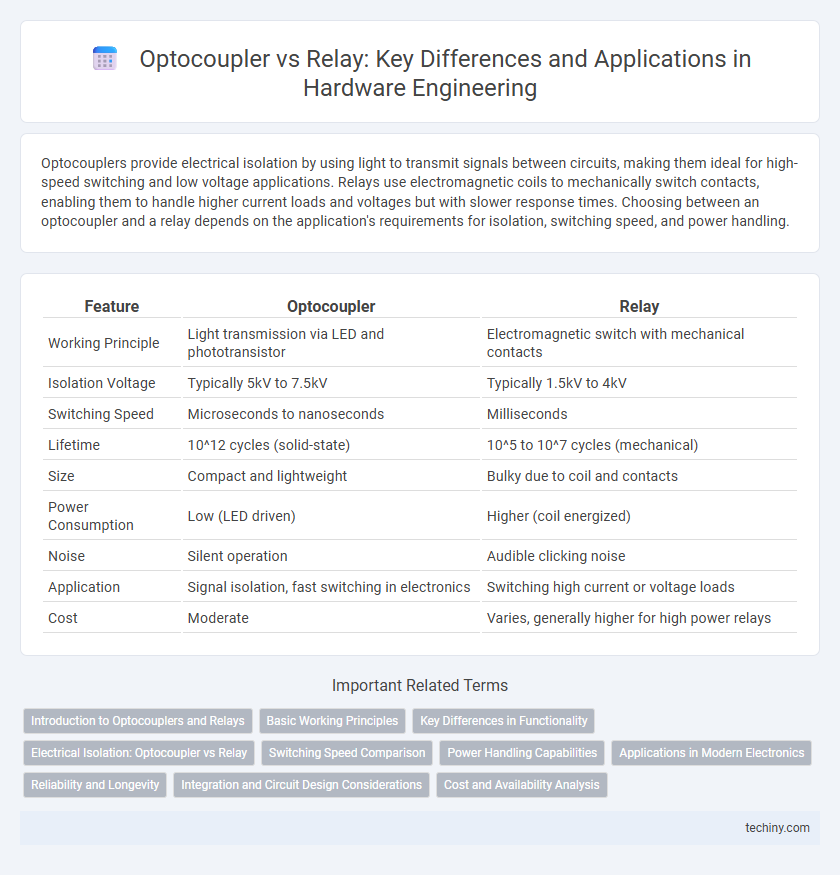

optocoupler vs relay Infographic
