techiny.com ROM (Read-Only Memory) is a non-volatile memory primarily used for permanent storage of firmware, remaining immutable after manufacturing. EEPROM (Electrically Erasable Programmable Read-Only Memory) allows data to be electrically erased and reprogrammed multiple times, offering flexibility for firmware updates. In hardware engineering, choosing between ROM and EEPROM depends on whether fixed or updatable memory storage is required for the application.
Table of Comparison
| Feature | ROM (Read-Only Memory) | EEPROM (Electrically Erasable Programmable Read-Only Memory) |
|---|---|---|
| Definition | Non-volatile memory permanently programmed during manufacturing | Non-volatile memory that can be electrically erased and reprogrammed |
| Data Retention | Typically 10-20 years | Typically 10-20 years |
| Reprogrammability | Not reprogrammable after manufacturing | Supports multiple reprogramming cycles (typically 100,000+) |
| Erase Method | Not applicable | Electrically erased byte-wise |
| Speed | Faster read access times | Slower write and erase times compared to ROM |
| Usage | Firmware storage, fixed boot code | Configuration storage, calibration data, updates |
| Cost | Lower cost per unit | Higher cost due to erase/reprogram capability |
| Typical Applications | Embedded systems, BIOS chips | Microcontroller memory, parameter storage |
Introduction to ROM and EEPROM
ROM (Read-Only Memory) is a non-volatile memory type used primarily for storing firmware and system-level software that does not require modification after manufacturing. EEPROM (Electrically Erasable Programmable Read-Only Memory) offers the advantage of being electrically erasable and reprogrammable, enabling updates to stored data without removing the chip from the hardware system. ROM provides permanent data storage with faster read speeds, while EEPROM balances durability and flexibility for applications needing occasional data updates.
Fundamental Differences Between ROM and EEPROM
ROM (Read-Only Memory) is non-volatile memory permanently programmed during manufacturing, making its contents immutable under normal operation, while EEPROM (Electrically Erasable Programmable Read-Only Memory) allows data to be electrically erased and reprogrammed multiple times. ROM is ideal for storing firmware that does not require updates, whereas EEPROM facilitates frequent updates and customization in embedded systems. The fundamental difference lies in ROM's fixed data storage versus EEPROM's electrically erasable and rewritable capability, impacting flexibility and application in hardware design.
Architecture and Design Principles
ROM (Read-Only Memory) features a fixed architecture where data is permanently inscribed during manufacturing, ensuring high-speed access with minimal power consumption. EEPROM (Electrically Erasable Programmable Read-Only Memory) incorporates floating-gate transistors in its design, enabling electrically erasable and reprogrammable data storage through charge manipulation. The fundamental design principle of ROM prioritizes stability and cost-effectiveness for static data, whereas EEPROM architecture balances flexibility and durability for frequent updates in embedded systems.
Data Storage and Retention Capabilities
ROM provides permanent data storage with non-volatile memory that retains information even without power, making it ideal for firmware and bootloader applications. EEPROM allows for electrically erasable and reprogrammable data storage, supporting multiple write and erase cycles while maintaining data retention for up to 10-20 years. ROM offers faster read speeds and higher durability for static data, whereas EEPROM provides flexibility for updating stored data without removing the chip.
Read and Write Operations
ROM (Read-Only Memory) offers fast read operations with data permanently written during manufacturing, preventing any subsequent modification. EEPROM (Electrically Erasable Programmable Read-Only Memory) supports both read and write operations, enabling multiple data rewrites through electrical erasing and programming, albeit at slower speeds compared to ROM. The write process in EEPROM involves higher latency and power consumption due to the need for electrical erasure of data blocks before reprogramming.
Applications in Modern Hardware Engineering
ROM provides reliable, non-volatile storage used for firmware in embedded systems, ensuring consistent boot processes in devices like microcontrollers and routers. EEPROM offers flexible, electrically erasable memory ideal for storing user settings, calibration data, and small-scale updates in modern hardware such as IoT devices and automotive control units. Engineers choose ROM for permanent code stability and EEPROM for dynamic data retention, optimizing performance and reliability in embedded hardware applications.
Advantages and Limitations of ROM
ROM (Read-Only Memory) offers high-speed data access and excellent stability, making it ideal for storing firmware and permanent system instructions. Its non-volatile nature ensures data retention without power, but its content cannot be modified after manufacturing, limiting flexibility for updates or corrections. ROM is cost-effective for mass production yet unsuitable for applications requiring frequent data changes or customization.
Benefits and Drawbacks of EEPROM
EEPROM offers the key benefit of electrical reprogramming without removing the chip from the circuit, enabling in-system updates and flexible data storage for embedded systems. It provides non-volatile memory retention with higher endurance compared to traditional ROM, supporting up to 1 million write/erase cycles, which is crucial for applications requiring frequent data modification. However, EEPROM has slower write speeds and higher power consumption during programming compared to ROM, making it less suitable for high-speed or power-sensitive hardware designs.
Security and Reliability Considerations
ROM offers high reliability with data permanence, making it ideal for storing firmware that must remain unchanged and secure from unauthorized modifications. EEPROM provides greater flexibility with the ability to be electrically erased and reprogrammed, but this reusability introduces potential security vulnerabilities such as data corruption or unauthorized writes. Implementing robust access controls and error-checking algorithms enhances the security and reliability of EEPROM in environments requiring frequent updates.
Future Trends in Non-Volatile Memory Technologies
Emerging non-volatile memory technologies like EEPROM are progressively replacing traditional ROM due to their reprogrammability, higher data retention, and lower power consumption. Advances in memristors, MRAM, and phase-change memory emphasize faster write speeds and improved endurance, enabling more efficient hardware engineering. These innovations promise enhanced scalability and integration into next-generation computing systems focused on AI and edge applications.

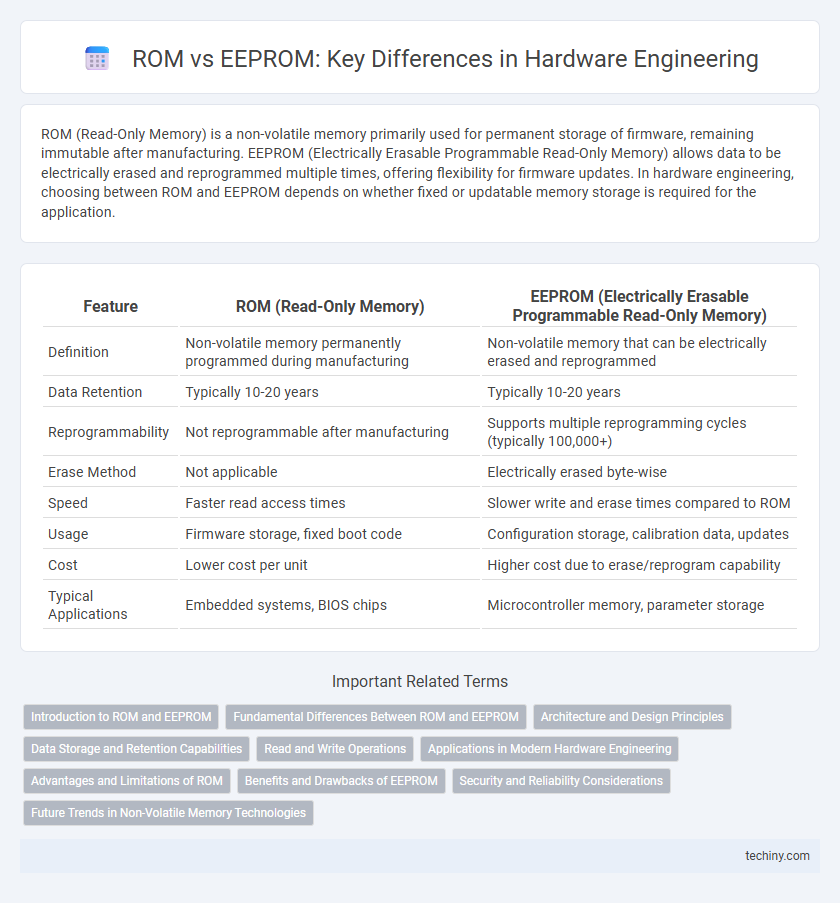

ROM vs EEPROM Infographic
