techiny.com System on Chip (SoC) integrates all components of a computer or other electronic systems onto a single chip, enhancing performance and reducing power consumption. System in Package (SiP) combines multiple integrated circuits and passive components into a single package, optimizing space and facilitating heterogeneous integration. SoC offers greater efficiency for high-volume applications, while SiP provides flexibility and customization for complex, multi-functional devices.
Table of Comparison
| Feature | System on Chip (SoC) | System in Package (SiP) |
|---|---|---|
| Definition | Integrated circuit combining all components on a single semiconductor die | Multiple integrated circuits packaged together as a single unit |
| Integration Level | High integration on one chip | Moderate integration with multiple chips in one package |
| Design Complexity | More complex due to monolithic design | Less complex, modular approach |
| Performance | Higher speed, lower latency | Good performance, potential inter-chip delay |
| Flexibility | Less flexible, fixed architecture | More flexible, mix-and-match components |
| Manufacturing Cost | Higher initial cost, cost-effective at scale | Lower NRE, higher per-unit cost |
| Application | Mobile devices, high-performance computing | Wearables, IoT devices, compact systems |
Introduction to SoC and SiP Technologies
System on Chip (SoC) integrates multiple components such as CPU, memory, and peripherals onto a single silicon die, enabling enhanced performance and reduced power consumption for compact electronic devices. System in Package (SiP) combines multiple dies and passive components within a single package, offering design flexibility and faster time-to-market for complex applications. Both SoC and SiP technologies address the demand for miniaturization and high functionality in modern hardware engineering.
Core Architectural Differences
System on Chip (SoC) integrates all components of a computer or other electronic system onto a single semiconductor chip, optimizing performance and power consumption through tightly coupled cores and shared memory architecture. System in Package (SiP) combines multiple integrated circuits and passive components into a single package, allowing heterogeneous integration but maintaining physical separation between processing cores and specialized modules. SoC emphasizes monolithic design with unified connectivity, while SiP focuses on modularity and design flexibility by leveraging advanced packaging techniques.
Integration Levels: Functions and Components
System on Chip (SoC) integrates multiple functions such as CPU, GPU, memory, and peripherals onto a single silicon die, offering high integration density and reduced latency. System in Package (SiP) combines multiple discrete chips, including SoCs, memory, sensors, and power management, within a single package to enhance modularity and flexibility. SoCs provide tighter integration of components for optimized performance, whereas SiPs enable heterogeneous integration of diverse functions in compact form factors.
Performance and Power Efficiency Comparison
System on Chip (SoC) integrates multiple components into a single chip, offering superior performance due to reduced latency and higher data throughput. System in Package (SiP) provides better power efficiency by physically separating components, allowing optimized power management and thermal dissipation. While SoCs excel in delivering high-speed processing with lower power consumption in compact designs, SiPs enable flexible integration of heterogeneous technologies that can improve overall system power efficiency in specific applications.
Design Complexity and Development Cycles
SoC (System on Chip) design integrates multiple components into a single chip, increasing design complexity due to intricate verification and optimization processes, which often prolongs development cycles. SiP (System in Package) combines several chips within a single package, allowing parallel development of components and shorter iterations, thus reducing overall time-to-market. Choosing between SoC and SiP depends on balancing the complexity of integration and the desired speed of development in hardware engineering projects.
Manufacturing Processes and Packaging
System on Chip (SoC) integrates multiple components into a single silicon die, leveraging advanced semiconductor manufacturing processes like FinFET and EUV lithography to enhance performance and reduce power consumption. System in Package (SiP) combines multiple dies and passive components within a compact package through heterogeneous packaging techniques, such as wafer-level packaging (WLP) and 3D stacking, enabling modular functionality and rapid prototyping. SoC fabrication demands high initial costs and complex process optimizations, while SiP manufacturing emphasizes flexible assembly and testing processes to accommodate diverse components and improve time-to-market.
Cost Considerations and Scalability
SoC designs generally offer lower unit costs at high volumes due to integrated components on a single chip, reducing manufacturing complexity and material expenses. SiP provides greater scalability and flexibility for varied applications by allowing customization of multiple heterogeneous dies in one package, but this often results in higher per-unit costs and increased assembly complexity. Cost-effectiveness depends on production scale, with SoC favoring large-scale deployment and SiP suitable for niche markets requiring rapid design iterations and integration of diverse technologies.
Applications and Industry Use Cases
System on Chip (SoC) solutions dominate mobile devices, consumer electronics, and automotive applications due to their high integration and power efficiency, crucial for smartphones, tablets, and advanced driver-assistance systems. System in Package (SiP) technology excels in wearable devices, IoT sensors, and medical implants by enabling heterogeneous integration of diverse components in a compact form factor, supporting miniaturization and complex multi-functionality. Industries such as telecommunications, healthcare, and aerospace leverage SoC's processing power for high-performance tasks, while SiP is preferred for flexible, space-constrained applications requiring customized multi-chip configurations.
Future Trends in System Integration
Future trends in system integration emphasize the increasing adoption of heterogeneous integration, where SoC (System on Chip) and SiP (System in Package) technologies converge to optimize performance, power efficiency, and form factor. Advanced packaging techniques such as chiplet architectures and 3D stacking drive the evolution of SiP, enabling customizable and scalable solutions that complement the monolithic integration strength of SoCs. Emerging applications in AI, 5G, and edge computing demand seamless integration, pushing manufacturers to innovate hybrid designs that leverage the benefits of both SoC and SiP for enhanced system capabilities.
Choosing Between SoC and SiP: Key Factors
Selecting between System on Chip (SoC) and System in Package (SiP) hinges on factors such as design complexity, integration level, and power efficiency. SoCs are ideal for high-volume applications requiring tight integration of processing units and memory on a single silicon die, resulting in reduced latency and power consumption. SiPs offer design flexibility by integrating heterogeneous components in a multi-chip module, making them suitable for rapid prototyping and applications demanding diverse functionalities within a compact footprint.

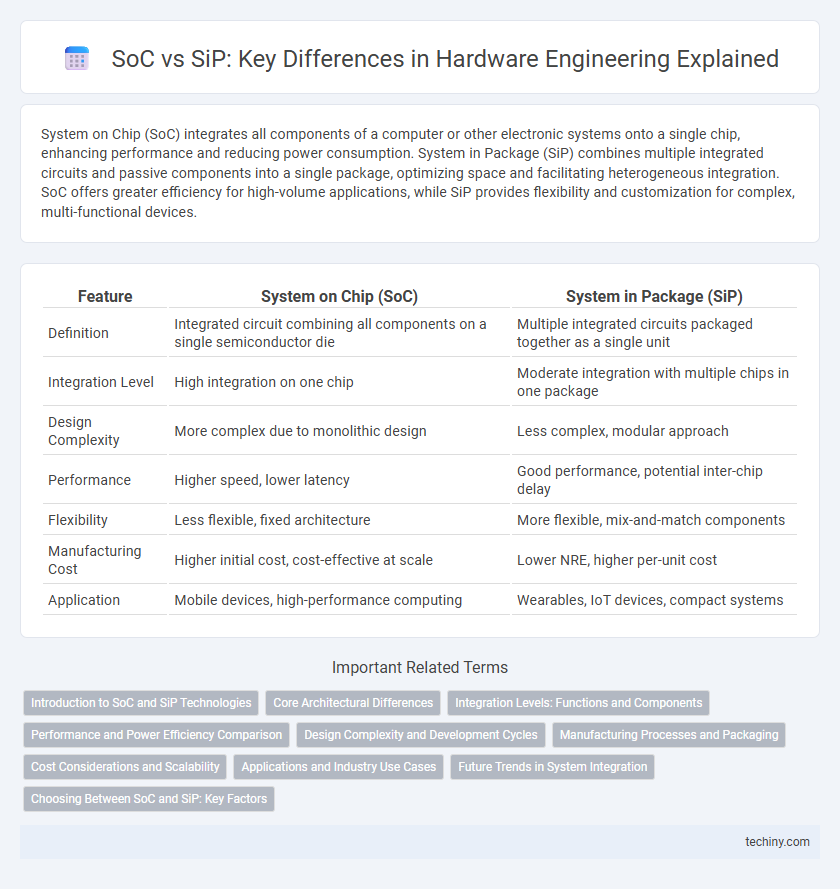

SoC vs SiP Infographic
