techiny.com Soldering and welding are essential joining techniques in hardware engineering, primarily distinguished by temperature and application. Soldering uses lower temperatures to join electronic components with a filler metal, ensuring circuit integrity without damaging sensitive parts, whereas welding involves melting base metals to form a robust, permanent bond ideal for structural hardware. Understanding the specific needs of strength, conductivity, and material compatibility is crucial in selecting the appropriate method for hardware assembly and repair.
Table of Comparison
| Aspect | Soldering | Welding |
|---|---|---|
| Process | Joining metals using a filler metal with a lower melting point without melting base materials | Fusing metals by melting base materials and adding filler material |
| Temperature | Typically 180degC to 450degC | Above 1300degC, depending on metal type |
| Applications | Electronics, circuit boards, thin metals | Structural components, heavy metals, pipelines |
| Strength | Lower mechanical strength, suitable for electrical connections | High mechanical strength, suitable for load-bearing joints |
| Equipment | Soldering iron, solder wire, flux | Welding machine, electrodes, shielding gas |
| Impact on Materials | No melting of base metals, minimal thermal distortion | Melting of base metals, possible heat-affected zones |
| Skill Level | Moderate | High |
| Cost | Lower | Higher |
Overview of Soldering and Welding
Soldering is a process that joins metal components using a filler metal with a lower melting point than the base materials, typically employed in electronics for delicate and precise connections. Welding involves melting the base metals themselves along with a filler material to create a strong, permanent bond commonly used in structural and heavy-duty applications. Both methods serve distinct purposes in hardware engineering, with soldering favored for electrical conductivity and minimal thermal impact, while welding provides mechanical strength and durability.
Key Differences Between Soldering and Welding
Soldering involves joining metals using a filler metal with a melting point below 450degC, creating a strong electrical connection without melting the base materials, ideal for delicate electronic components. Welding melts the base metals alongside a filler material, forming a robust mechanical and structural bond suitable for heavy-duty applications in hardware engineering. Key differences include temperature requirements, joint strength, and application contexts, with soldering emphasizing electrical conductivity and welding focusing on structural integrity.
Common Applications in Hardware Engineering
Soldering is commonly used in hardware engineering for assembling electronic components on printed circuit boards (PCBs), enabling precise connections in devices like computers and smartphones. Welding finds frequent application in fabricating structural hardware parts, such as frames and enclosures, where strong, durable joints are critical for mechanical integrity. Both techniques are essential for manufacturing, with soldering optimizing electrical connectivity and welding ensuring robust mechanical support.
Material Compatibility and Suitability
Soldering excels in joining dissimilar metals like copper, silver, and gold due to its low-temperature process, preserving the integrity of sensitive electronic components. Welding requires similar base materials and higher temperatures, making it ideal for robust structural connections in metals like steel and aluminum but unsuitable for delicate hardware circuits. Material compatibility and suitability largely depend on the thermal tolerance and metallurgical properties of the components involved.
Temperature Requirements and Heat Sources
Soldering in hardware engineering operates at lower temperatures, typically between 180degC and 250degC, using heat sources like soldering irons or hot air stations to melt solder without damaging components. Welding requires significantly higher temperatures, often exceeding 1,000degC, achieved through heat sources such as arc welders, oxy-fuel torches, or laser welders to fuse metals directly. The precise temperature control in soldering protects delicate electronic parts, whereas welding's intense heat is necessary for creating strong, permanent metal joints.
Strength and Durability of Joints
Soldering creates joints by melting a filler metal with a lower melting point than the base materials, resulting in connections that are less robust and applied primarily for electrical conductivity rather than mechanical strength. Welding fuses base metals together by melting them at high temperatures, producing joints with superior strength and durability capable of withstanding significant mechanical stress and environmental factors. For hardware engineering applications requiring structural integrity and long-term reliability, welded joints are generally preferred over soldered ones due to their enhanced load-bearing capacity and resistance to wear.
Tools and Equipment Needed
Soldering requires tools such as a soldering iron, solder wire, flux, and a heat-resistant work surface to create precise electronic joints without melting base metals. Welding demands more robust equipment including a welding machine, electrodes or filler materials, protective gear like helmets and gloves, and often a gas supply for processes like MIG or TIG welding to fuse metals at high temperatures. The choice between soldering and welding tools depends on the application's material type, joint strength requirements, and work environment safety standards.
Safety Considerations and Precautions
Soldering and welding involve distinct safety risks requiring specific precautions; soldering emits potentially harmful fumes from flux and solder alloys, necessitating adequate ventilation and fume extraction. Welding produces intense ultraviolet radiation, sparks, and high temperatures, mandating the use of protective gear such as welding helmets, gloves, and flame-resistant clothing. Both processes require strict adherence to safety protocols to prevent burns, inhalation hazards, and eye damage in hardware engineering environments.
Cost Implications and Efficiency
Soldering in hardware engineering generally offers lower initial costs and greater efficiency for delicate electronic components, reducing thermal stress and minimizing damage. Welding, while more expensive due to equipment and energy requirements, provides stronger, permanent joints suited for heavy-duty metal parts. Evaluating project needs and material compatibility is crucial to balance cost-effectiveness and operational efficiency between soldering and welding processes.
Choosing the Right Technique for Your Project
Soldering is ideal for delicate electronic components requiring precise, low-temperature connections, ensuring minimal thermal damage and strong electrical conductivity. Welding suits metal fabrication projects demanding robust mechanical strength and permanent joints, typically involving higher temperatures and energy sources like arc or resistance welding. Choosing the right technique depends on factors such as material type, project requirements, joint strength, and thermal sensitivity to achieve optimal results.

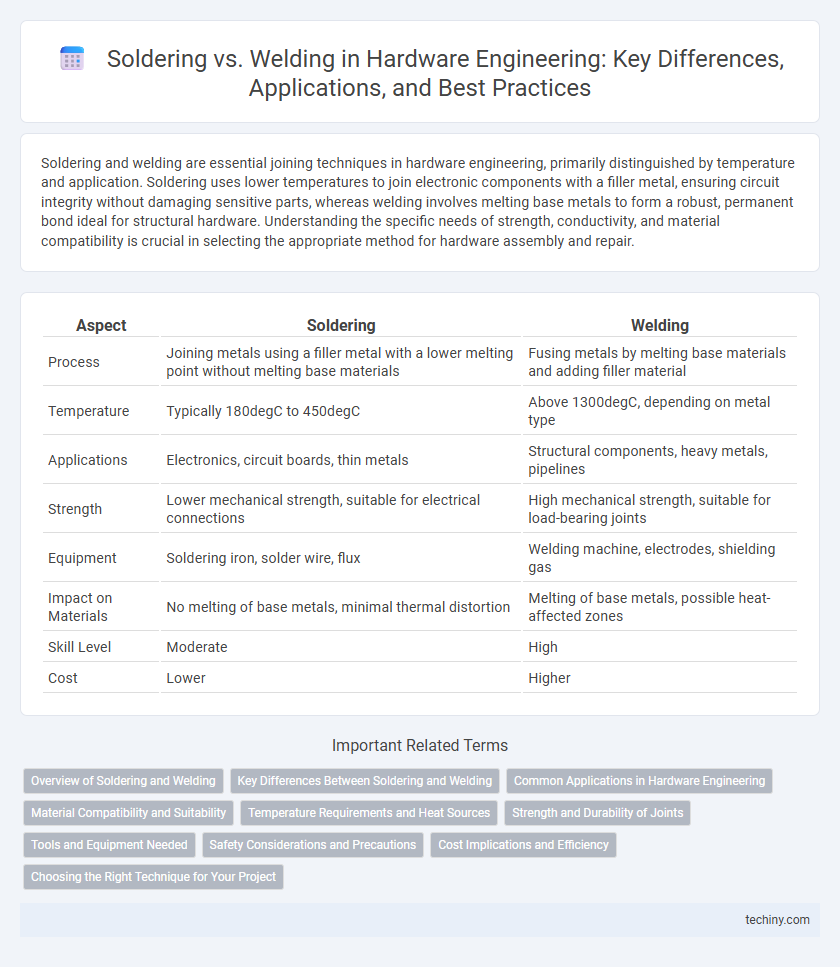

Soldering vs Welding Infographic
