techiny.com Tolerance defines the allowable variation in a hardware component's dimensions or performance without compromising functionality, while precision refers to the level of exactness and repeatability in measurements or manufacturing processes. High precision is critical for achieving tight tolerances, ensuring components fit and function together accurately in complex assemblies. Optimizing both tolerance and precision enhances the reliability and efficiency of hardware designs, reducing the risk of failures and rework.
Table of Comparison
| Aspect | Tolerance | Precision |
|---|---|---|
| Definition | Permissible limit of variation in a physical dimension or measurement | Degree of exactness and repeatability in measurements or manufacturing |
| Focus | Acceptable error range in manufacturing and assembly | Consistency and closeness of repeated measurements or outputs |
| Application | Design specifications and quality control in components | Calibration, measurement accuracy, and manufacturing repeatability |
| Impact on Hardware | Ensures proper fit and function of parts under allowed deviations | Improves reliability by minimizing variation between results |
| Measurement | Specified as maximum acceptable deviation (e.g., +-0.05mm) | Expressed as standard deviation, repeatability, or resolution |
| Example | A shaft diameter of 10mm +-0.1mm | Repeated measurements of 10.00mm +-0.01mm |
Understanding Tolerance and Precision in Hardware Engineering
Tolerance in hardware engineering defines the allowable variation in component dimensions or performance without compromising functionality, ensuring reliability and manufacturability. Precision refers to the degree of exactness and repeatability in measurements or manufacturing processes, critical for maintaining consistency and meeting design specifications. Understanding the balance between tolerance and precision is essential for optimizing product quality, reducing costs, and achieving efficient production workflows.
Key Differences Between Tolerance and Precision
Tolerance defines the allowable deviation range from a specified dimension in hardware components, ensuring parts fit and function correctly despite minor variations. Precision refers to the consistency and repeatability of measurements or manufacturing processes, indicating how closely repeated outputs match each other. While tolerance sets acceptable limits for variations, precision measures the exactness and reliability of those measurements within the process.
The Importance of Tolerance in Hardware Design
Tolerance in hardware design defines the permissible limits of variation in component dimensions and performance, ensuring reliable assembly and function despite manufacturing imperfections. Properly specified tolerance balances cost and quality by minimizing material waste and reducing the risk of part failure or misalignment in mechanical systems. Precision alone cannot guarantee product functionality without appropriate tolerance allowances that accommodate real-world variations during production and operation.
Precision: Defining the Limits of Accuracy
Precision defines the consistency of measurements or manufactured parts within tight tolerances, ensuring repeatability in hardware engineering processes. High precision reduces variability and improves the reliability of components by maintaining strict control over dimensional accuracy. This focus on precision directly enhances product performance, minimizing errors and increasing overall system efficiency.
How Tolerance Impacts Manufacturing Processes
Tolerance directly affects manufacturing processes by defining acceptable variation limits in component dimensions, which influences production speed and cost. Tighter tolerances require higher precision equipment and more rigorous quality control, increasing manufacturing complexity and expenses. Looser tolerances enable faster production with reduced costs but may compromise the compatibility and functionality of assembled hardware components.
Precision Measurement Tools in Engineering
Precision measurement tools in hardware engineering, such as micrometers, calipers, and coordinate measuring machines (CMM), are essential for achieving tight tolerances and ensuring component accuracy. These instruments provide high-resolution data that minimize variability and enhance repeatability during manufacturing processes. Accurate precision measurement is critical for maintaining product quality, reducing material waste, and meeting stringent industry standards.
Design Considerations: Balancing Tolerance and Precision
Balancing tolerance and precision in hardware engineering design requires careful assessment of component specifications to ensure functional reliability while minimizing manufacturing costs. Tight tolerances increase precision but often lead to higher production complexity and expense, whereas looser tolerances reduce cost but may compromise device performance. Optimal design integrates tolerance analysis with precision requirements, using statistical methods and quality control techniques to achieve the best trade-off for system accuracy and manufacturability.
Quality Control: Managing Tolerance and Precision
In hardware engineering, managing tolerance and precision is crucial for maintaining quality control, as tight tolerances ensure components meet exact specifications, reducing variability in assemblies. Precision impacts the repeatability of measurements and machining processes, directly influencing product reliability and performance consistency. Implementing robust quality control systems with statistical process control (SPC) aids in monitoring tolerance adherence and enhancing precision throughout production.
Real-World Applications of Tolerance vs Precision
Tolerance in hardware engineering defines acceptable dimensional variation to ensure parts fit and function correctly, while precision refers to the consistency of measurements or manufacturing processes. Real-world applications highlight tolerance in mass production, where slight deviations prevent costly rejections, and precision in calibration tools that require exact measurements for quality control. Balancing tolerance and precision optimizes component reliability and manufacturing efficiency across industries like automotive and aerospace.
Future Trends in Precision Engineering and Tolerance Optimization
Future trends in precision engineering emphasize the integration of advanced robotics and AI-driven metrology to achieve unprecedented tolerance optimization in hardware manufacturing. Machine learning algorithms enable real-time adjustments during production, drastically reducing variability and enhancing component accuracy at the micron and sub-micron levels. Emerging materials and nanoscale fabrication techniques further support tighter tolerances, pushing the boundaries of hardware performance and reliability in complex engineering applications.

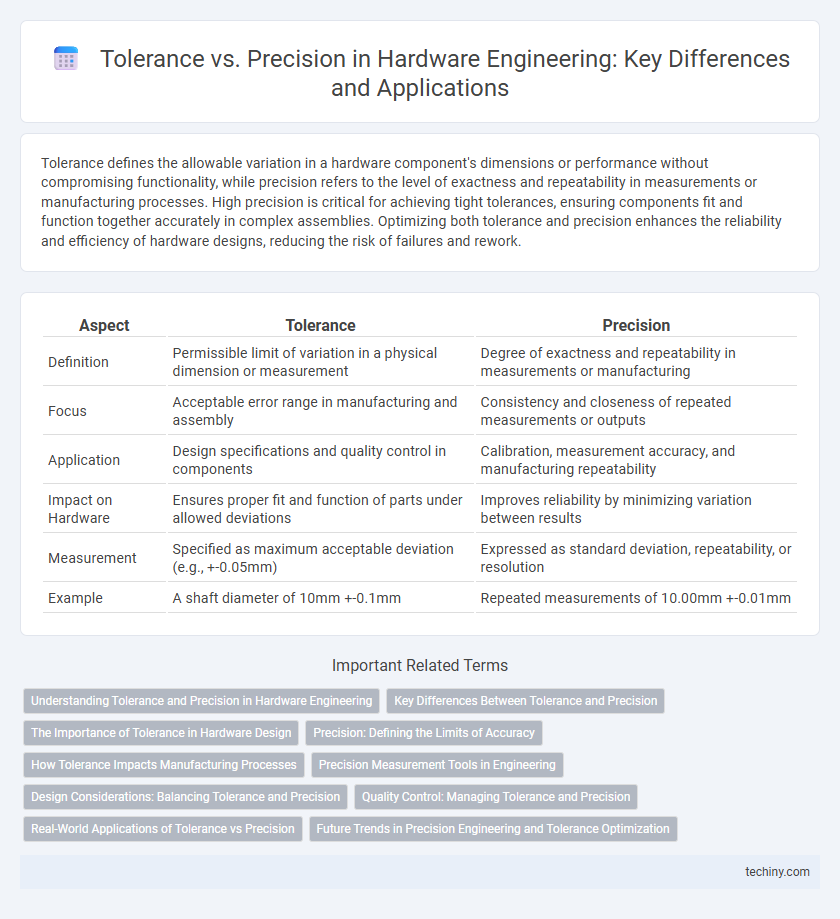

Tolerance vs Precision Infographic
