techiny.com Frequency Division Multiplexing (FDM) transmits multiple signals simultaneously by allocating distinct frequency bands to each channel, optimizing bandwidth usage in continuous data streams. Time Division Multiplexing (TDM) divides a single channel into time slots, allowing multiple signals to share the same frequency by transmitting sequentially in rapid succession. FDM is ideal for analog signals and continuous transmissions, while TDM excels in digital environments where signal timing and synchronization are critical.
Table of Comparison
| Feature | Frequency Division Multiplexing (FDM) | Time Division Multiplexing (TDM) |
|---|---|---|
| Definition | Divides the available bandwidth into frequency bands assigned to each user. | Divides the time into slots assigned to each user. |
| Multiplexing Method | Frequency-based | Time-based |
| Usage | Analog signals, radio broadcasting, cable TV. | Digital signals, telecommunication systems, computer networks. |
| Synchronization | Loose synchronization needed | Strict synchronization required |
| Interference | Possible crosstalk between frequency bands | Minimal interference due to separate time slots |
| Bandwidth Efficiency | Less efficient due to fixed frequency bands | More efficient with dynamic slot allocation |
| Latency | Lower latency | Higher latency due to time slot waiting |
| Complexity | Simple implementation | More complex synchronization and timing |
Understanding the Basics of FDM and TDM
Frequency Division Multiplexing (FDM) divides the total bandwidth into multiple frequency bands, each allocated to a separate communication channel, allowing simultaneous data transmission over different frequencies. Time Division Multiplexing (TDM) assigns time slots to each channel within a fixed interval, enabling multiple signals to share the same transmission medium sequentially. Both FDM and TDM optimize bandwidth usage but differ in their approach to dividing resources: frequency spectrum for FDM and time intervals for TDM.
Key Differences Between FDM and TDM
Frequency Division Multiplexing (FDM) divides the available bandwidth into multiple frequency bands, allowing simultaneous transmission of multiple signals over a single communication channel. Time Division Multiplexing (TDM) allocates time slots to multiple signals, transmitting them sequentially one after another on the same frequency band. Key differences include FDM's continuous signal transmission versus TDM's time-sliced transmission, and FDM's reliance on frequency separation compared to TDM's dependence on precise time synchronization.
How FDM Works in Network Communication
Frequency Division Multiplexing (FDM) works in network communication by dividing the available bandwidth into multiple frequency bands, each dedicated to a separate data channel. These frequency bands transmit signals simultaneously without interference by modulating different carrier frequencies for each data stream. FDM is commonly used in analog transmission systems such as traditional telephone networks and radio broadcasting to enable concurrent data transmission over a single communication medium.
TDM Operation and Its Applications
Time Division Multiplexing (TDM) operates by dividing the transmission time into fixed intervals, assigning each channel a specific time slot to transmit data sequentially over a single communication medium. This method enables efficient utilization of bandwidth, reduces signal interference, and supports synchronous data transmission in telecommunication networks. TDM is widely applied in digital telephony, synchronous optical networking (SONET), and Ethernet networks to facilitate high-speed, time-sensitive data transfer across multiple users or devices.
Advantages of Frequency Division Multiplexing
Frequency Division Multiplexing (FDM) enables simultaneous transmission of multiple signals over a single communication channel by allocating distinct frequency bands, optimizing bandwidth utilization and reducing latency. FDM is highly effective in analog signal transmission and supports continuous real-time data flow, making it ideal for radio and television broadcasting. Its resistance to signal interference and ease of implementation contribute to reliable performance in various communication systems.
Benefits and Limitations of Time Division Multiplexing
Time Division Multiplexing (TDM) efficiently allocates fixed time slots to multiple signals over a single communication channel, maximizing bandwidth utilization and reducing signal interference. Its primary benefits include simplicity in synchronization and suitability for digital data transmission, enabling predictable and low-latency communication. Limitations of TDM involve rigid time slot allocation, which can cause inefficiency during low network traffic periods and challenges in handling variable data rates compared to Frequency Division Multiplexing (FDM).
FDM vs TDM: Bandwidth Utilization
Frequency Division Multiplexing (FDM) allocates unique frequency bands to each signal, enabling simultaneous transmission but often resulting in less efficient bandwidth utilization due to fixed channel spacing. Time Division Multiplexing (TDM) assigns distinct time slots to signals in a sequential manner, maximizing bandwidth efficiency by dynamically sharing the entire frequency spectrum among multiple users. TDM's ability to adapt time slot assignment enhances bandwidth utilization in digital communication systems compared to FDM's static frequency allocation.
Real-World Use Cases for FDM and TDM
Frequency Division Multiplexing (FDM) is widely used in traditional broadcast and cable television systems, where multiple channels transmit simultaneously over distinct frequency bands to maximize bandwidth utilization. Time Division Multiplexing (TDM) is prevalent in digital telephony and network communications, such as the Public Switched Telephone Network (PSTN) and synchronous optical networking (SONET), enabling multiple data streams to share the same transmission medium by assigning distinct time slots. Both multiplexing techniques optimize resource allocation in communication infrastructures, with FDM favoring continuous-frequency signals and TDM excelling in digital data transmission.
Choosing Between FDM and TDM in Network Design
Choosing between Frequency Division Multiplexing (FDM) and Time Division Multiplexing (TDM) depends on network bandwidth requirements and latency sensitivity. FDM is ideal for continuous data streams needing constant bandwidth, such as analog signals or broadcast services, while TDM excels in digital networks where efficient time-slot allocation reduces delay and supports high-speed data transmission. Network designers must evaluate channel capacity, interference susceptibility in FDM, and synchronization precision in TDM to optimize performance and resource utilization.
Future Trends in Multiplexing Technologies
Future trends in multiplexing technologies emphasize the integration of flexible and dynamic resource allocation to enhance bandwidth efficiency beyond traditional Frequency Division Multiplexing (FDM) and Time Division Multiplexing (TDM). Advances in adaptive multiplexing techniques and machine learning algorithms enable real-time optimization of channel utilization in 5G and beyond networks. Quantum multiplexing and optical multiplexing innovations also promise ultra-high-capacity data transmission for next-generation communication infrastructures.

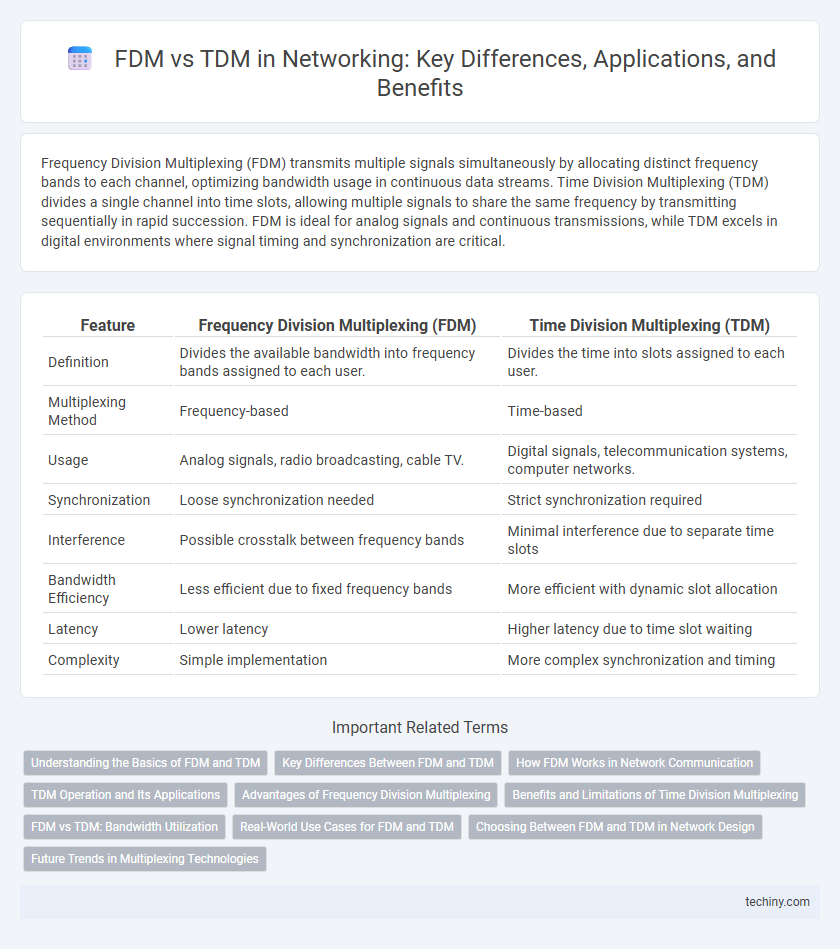

FDM vs TDM Infographic
