techiny.com Frame Relay is a legacy packet-switching technology designed for cost-effective data transmission over wide area networks, primarily using fixed-length frames and simplified error handling. MPLS (Multiprotocol Label Switching) offers improved scalability, faster data forwarding through label switching, and supports diverse network protocols, making it ideal for complex, high-performance networking environments. While Frame Relay suits basic connectivity needs with lower bandwidth demands, MPLS enhances traffic engineering, quality of service (QoS), and supports dynamic routing for modern enterprise networks.
Table of Comparison
| Feature | Frame Relay | MPLS |
|---|---|---|
| Technology Type | Packet-switched WAN protocol | Label-switching protocol for IP/MPLS networks |
| Speed | Up to 45 Mbps (T3 lines) | Supports up to multi-gigabit speeds |
| Scalability | Limited scalability, best for small to medium networks | Highly scalable, suitable for large enterprise and ISP networks |
| Quality of Service (QoS) | Basic QoS with Committed Information Rate (CIR) | Advanced QoS with traffic engineering and prioritization |
| Latency and Performance | Higher latency, variable performance | Low latency, consistent performance through traffic engineering |
| Protocol Support | Supports IP, but limited to packet-switched | Supports IP, ATM, Ethernet, and more |
| Cost | Lower initial cost, higher operational complexity | Higher cost, but efficient for complex networks |
| Security | Basic security, prone to interception | Enhanced security with VPN support and segmentation |
| Deployment Status | Legacy technology, declining usage | Modern, widely adopted in enterprise and carrier networks |
Introduction to Frame Relay and MPLS
Frame Relay is a packet-switched WAN protocol designed for efficient data transmission in legacy networks, using virtual circuits to connect multiple sites with reduced latency. MPLS (Multiprotocol Label Switching) enhances network speed and scalability by directing data from one node to the next based on short path labels rather than long network addresses, supporting diverse protocols and traffic types. Both technologies optimize bandwidth utilization, but MPLS offers superior flexibility and QoS features for modern, multimedia-intensive applications.
Key Concepts and Terminology
Frame Relay is a packet-switched WAN technology that uses virtual circuits, such as Permanent Virtual Circuits (PVCs), to transmit variable-length frames across a shared network. MPLS (Multiprotocol Label Switching) directs data from one node to the next based on short path labels rather than long network addresses, enabling traffic engineering and quality of service (QoS). Key terminology in MPLS includes Label Switched Paths (LSPs), Forwarding Equivalence Classes (FECs), and Label Edge Routers (LERs), which differ significantly from Frame Relay's DLCIs (Data Link Connection Identifiers) used for identifying virtual circuits.
Architecture Overview: Frame Relay vs MPLS
Frame Relay architecture relies on a packet-switched wide area network using virtual circuits to establish logical connections between devices, typically operating at the data link layer (Layer 2) for cost-effective, efficient transmission of variable-size frames. MPLS architecture integrates features of both Layer 2 switching and Layer 3 routing by assigning labels to packets, enabling flexible, high-performance traffic engineering and scalable network design across IP and legacy technologies. Frame Relay's fixed virtual circuits and limited QoS options contrast with MPLS's dynamic label-switching paths and robust Quality of Service capabilities, supporting diverse and complex enterprise networking requirements.
Performance Comparison: Speed and Latency
Frame Relay typically offers lower speed options, ranging from 56 Kbps to 45 Mbps, with latency influenced by fixed time slots and circuit-switching-like behavior. MPLS supports higher speeds, often exceeding 100 Gbps, by efficiently directing data packets through predetermined label-switched paths, resulting in lower and more consistent latency. The advanced traffic engineering capabilities of MPLS enable superior performance in handling diverse and dynamic network loads compared to Frame Relay.
Scalability and Flexibility
Frame Relay offers limited scalability due to fixed bandwidth allocation and reliance on permanent virtual circuits, which can hinder adaptability in growing networks. MPLS provides superior scalability by supporting dynamic routing and traffic engineering, enabling efficient handling of increased traffic loads across multiple paths. Its flexibility allows seamless integration of Layer 2 and Layer 3 services, accommodating diverse applications and evolving network demands with ease.
QoS (Quality of Service) Capabilities
Frame Relay supports basic QoS through Committed Information Rate (CIR) guarantees, which ensure minimal bandwidth allocation but lack granular traffic prioritization. MPLS offers advanced QoS capabilities with traffic engineering, Class of Service (CoS) markings, and Layer 3 traffic differentiation to optimize bandwidth, reduce latency, and manage congestion effectively. MPLS enables dynamic path selection based on QoS requirements, making it suitable for complex, high-performance enterprise networks.
Security Features and Considerations
Frame Relay offers basic security relying heavily on physical network isolation and limited access control, making it vulnerable to interception and spoofing attacks due to the lack of encryption and advanced authentication. MPLS enhances security through traffic segregation using VPNs, supports robust encryption protocols, and integrates with IPsec for end-to-end data protection, providing greater resilience against eavesdropping and unauthorized access. Enterprises seeking secure WAN connectivity prefer MPLS over Frame Relay for its comprehensive security features and scalable policy enforcement.
Cost Implications and ROI
Frame Relay offers lower initial setup costs and simpler infrastructure compared to MPLS, making it suitable for budget-conscious enterprises with limited bandwidth needs. MPLS delivers higher ROI through enhanced scalability, improved network performance, and support for diverse QoS levels, which reduces downtime and operational expenses over time. Evaluating total cost of ownership, MPLS often justifies its premium with long-term savings and business agility benefits.
Use Cases and Industry Applications
Frame Relay remains prevalent in legacy telecommunications systems for cost-effective wide area networking in industries like manufacturing and retail, where simple, low-bandwidth connections suffice. MPLS dominates in enterprise and service provider networks requiring scalable, high-performance, and flexible traffic engineering, with strong adoption in financial services, healthcare, and cloud service providers for mission-critical applications. MPLS supports advanced use cases such as VPNs, real-time voice and video transmission, and multi-protocol traffic management, making it ideal for dynamic, high-demand environments.
Future Trends and Migration Strategies
Future trends indicate a gradual shift from Frame Relay to MPLS due to MPLS's superior scalability, flexibility, and support for advanced services like VPNs and traffic engineering. Migration strategies often involve hybrid network architectures enabling coexistence during phased transitions, leveraging MPLS's compatibility with IP-based networks for optimized performance. Enterprises prioritize MPLS adoption to future-proof infrastructure and accommodate increasing bandwidth demands and cloud integration.

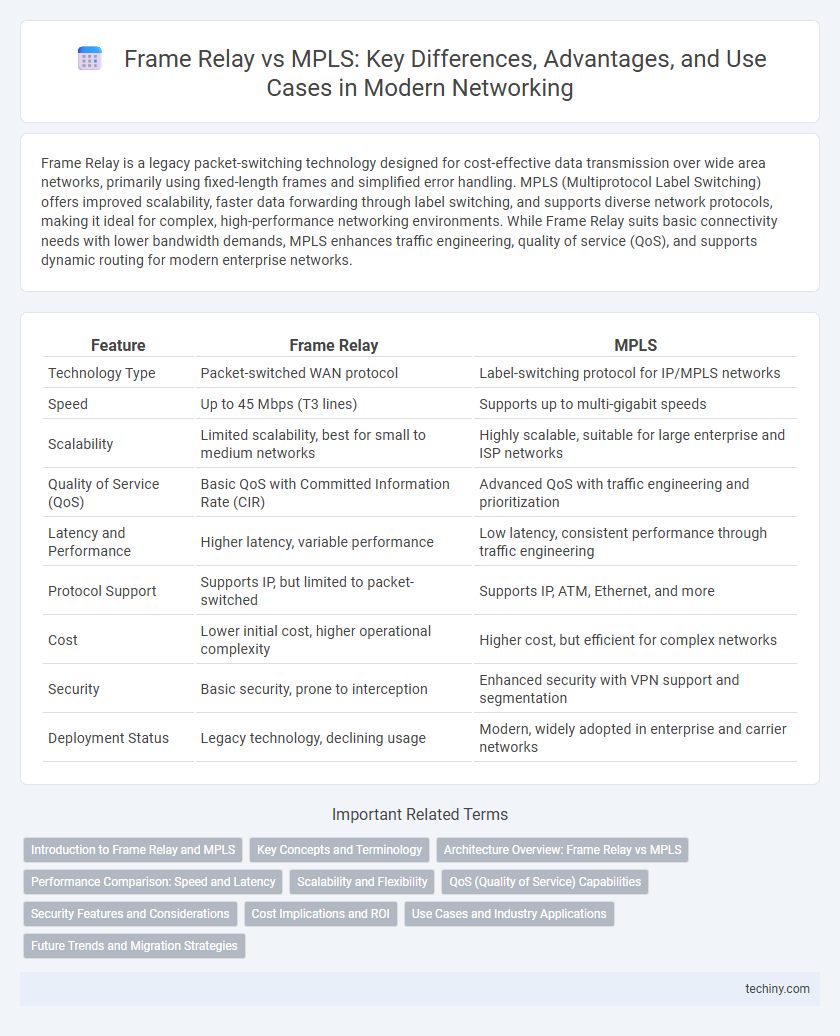

Frame Relay vs MPLS Infographic
