techiny.com Link Aggregation combines multiple network connections to increase bandwidth and provide redundancy, optimizing data flow between switches. Spanning Tree Protocol prevents network loops by selectively blocking redundant paths, ensuring a loop-free and stable network topology. Choosing between Link Aggregation and Spanning Tree depends on the need for bandwidth enhancement or loop prevention in pet-friendly network environments.
Table of Comparison
| Aspect | Link Aggregation (LAG) | Spanning Tree Protocol (STP) |
|---|---|---|
| Purpose | Combine multiple physical links into a single logical link to increase bandwidth and provide redundancy | Prevent network loops by creating a loop-free logical topology in Ethernet networks |
| Function | Balances traffic across aggregated links while providing failover | Blocks redundant paths to prevent broadcast storms and loops |
| Layer | Data Link Layer (Layer 2) | Data Link Layer (Layer 2) |
| Bandwidth Utilization | Aggregates bandwidth of multiple interfaces for higher throughput | Uses only one active path at a time, others remain blocked |
| Redundancy | Provides seamless redundancy and load sharing | Provides redundancy by disabling loops but may result in blocked links |
| Configuration | Requires matching settings on participating devices (e.g., LACP protocol) | Typically enabled by default; requires tuning for optimization |
| Standard Protocols | IEEE 802.3ad / IEEE 802.1AX (LACP) | IEEE 802.1D |
| Use Case | Increasing link capacity between switches or servers | Maintaining loop-free topology in Ethernet LAN environments |
| Impact on Network Topology | Maintains all links active, creating aggregated high-speed links | Disables redundant paths to avoid loops and broadcast storms |
| Recovery Time | Fast failover with minimal traffic disruption | Slower convergence depending on protocol variant (STP, RSTP, MSTP) |
Understanding Link Aggregation: Definition and Purpose
Link Aggregation combines multiple network connections into a single logical link to increase bandwidth and provide redundancy between switches or servers. It enhances network performance by balancing traffic load and ensures higher availability through automatic failover in case one link fails. This technology optimizes resource utilization and minimizes network congestion without blocking redundant paths like Spanning Tree Protocol does.
Spanning Tree Protocol Explained: Core Concepts
Spanning Tree Protocol (STP) is a network protocol that prevents layer 2 loops by creating a loop-free logical topology in Ethernet networks. It elects a root bridge and selectively blocks redundant paths to ensure a single active path between all network devices. STP dynamically responds to changes in the network topology, maintaining stability and preventing broadcast storms.
Key Differences Between Link Aggregation and Spanning Tree
Link Aggregation combines multiple physical network links into a single logical link to increase bandwidth and provide redundancy, while Spanning Tree Protocol prevents network loops by selectively blocking redundant paths in a switched network. Link Aggregation enhances throughput and load balancing across aggregated links, whereas Spanning Tree maintains a loop-free topology by disabling specific ports. Unlike Spanning Tree, which reacts to topology changes dynamically to avoid collisions, Link Aggregation requires compatible switch support and configuration to aggregate links effectively.
Advantages of Link Aggregation in Modern Networks
Link Aggregation enhances bandwidth by combining multiple network connections into a single logical link, significantly improving throughput and redundancy without creating loops. It provides efficient load balancing and fault tolerance, ensuring continuous network availability and optimal resource utilization. Unlike Spanning Tree Protocol, which disables redundant paths to prevent loops, Link Aggregation leverages all connections simultaneously, maximizing network efficiency in modern data centers and enterprise environments.
Benefits of Spanning Tree Protocol for Network Stability
Spanning Tree Protocol (STP) enhances network stability by preventing loops in Ethernet networks, ensuring a loop-free topology which reduces broadcast storms and packet duplication. It dynamically identifies and blocks redundant paths while enabling failover, maintaining continuous network availability during link failures. This protocol optimizes traffic flow and increases fault tolerance, crucial for scalable and resilient enterprise network infrastructures.
Link Aggregation Use Cases: Performance and Redundancy
Link aggregation combines multiple network connections to increase bandwidth and provide higher data throughput, enhancing overall network performance for data-intensive applications and server farms. It also ensures redundancy by allowing continued network operation if one or more links fail, minimizing downtime and improving reliability in critical enterprise environments. Common use cases include load balancing in data centers, improving fault tolerance in WAN connections, and optimizing traffic distribution in high-availability systems.
When to Use Spanning Tree Protocol in Networking Topology
Spanning Tree Protocol (STP) is essential in network topologies where multiple redundant paths exist, preventing broadcast storms by logically blocking loops while maintaining network resilience. Deploy STP in environments with complex Layer 2 switches to ensure a loop-free topology and allow automatic failover during link or switch failures. Use STP when link redundancy is critical but the network infrastructure cannot support link aggregation or when aggregating links does not eliminate switch loops.
Implementation Challenges: Link Aggregation vs Spanning Tree
Link Aggregation implementation challenges include ensuring hardware and software compatibility across devices, managing load balancing algorithms, and maintaining session persistence for efficient bandwidth utilization. In contrast, Spanning Tree faces difficulties related to convergence time, preventing bridging loops, and the complexity of maintaining a loop-free topology in dynamic network environments. Both require careful configuration to avoid network downtime, but Link Aggregation demands precise synchronization of link states, whereas Spanning Tree struggles with scalability in large topologies.
Compatibility and Interoperability Considerations
Link Aggregation protocols such as LACP support widespread interoperability across multi-vendor environments by combining multiple physical links into a single logical connection to increase bandwidth and provide redundancy. In contrast, Spanning Tree Protocol (STP) ensures compatibility by preventing loops in Ethernet networks, but it can disable redundant links, which may limit link utilization and affect interoperability in complex topologies. Understanding device support and adherence to IEEE standards (IEEE 802.1AX for Link Aggregation, IEEE 802.1D for STP) is crucial for ensuring seamless integration and optimal network performance.
Future Trends: Link Aggregation and Spanning Tree in Evolving Networks
Link Aggregation is advancing with the integration of software-defined networking (SDN) and increased automation, enabling dynamic bandwidth scaling and enhanced fault tolerance in evolving network infrastructures. Spanning Tree Protocol (STP) is evolving through rapid convergence improvements and mesh-aware adaptations to support complex topologies and reduce recovery times in next-generation networks. Future networking frameworks are expected to blend Link Aggregation's capacity optimization with STP's loop prevention to achieve more resilient and efficient network architectures.

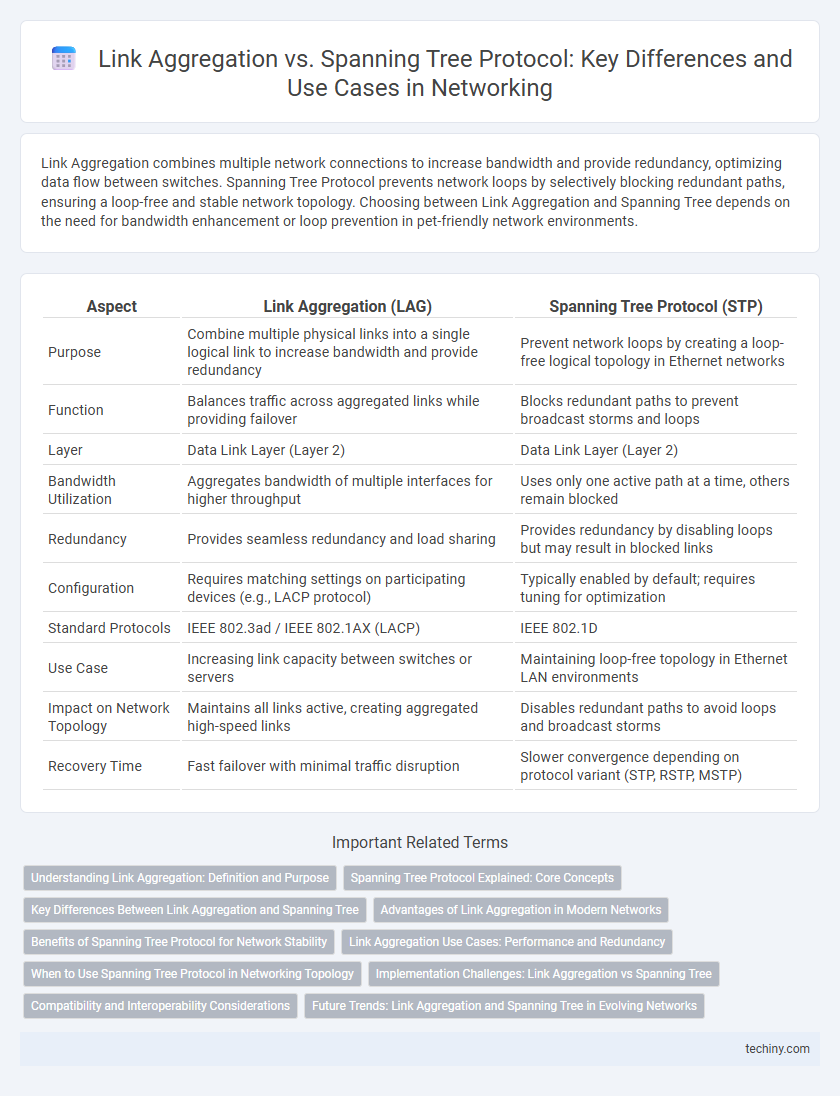

Link Aggregation vs Spanning Tree Infographic
