techiny.com Path MTU Discovery optimizes network performance by determining the smallest Maximum Transmission Unit (MTU) along the data path, preventing fragmentation. Fragmentation splits packets into smaller pieces when they exceed the MTU, potentially causing latency and packet loss. Employing Path MTU Discovery helps maintain efficient data flow, reducing overhead and improving overall network reliability in pet networking environments.
Table of Comparison
| Feature | Path MTU Discovery (PMTUD) | Fragmentation |
|---|---|---|
| Definition | Technique to detect the maximum transmission unit (MTU) size on the network path | Process of breaking packets into smaller fragments to fit MTU limits |
| Purpose | Avoid packet fragmentation by adjusting packet size | Allow oversized packets to traverse networks with smaller MTU |
| Operation | Sends packets with "Don't Fragment" (DF) flag; uses ICMP "Fragmentation Needed" messages | Router or host divides packets into fragments when exceeding MTU |
| Efficiency | Improves transmission efficiency by preventing fragmentation | Less efficient; causes overhead and delays due to reassembly |
| Error Handling | Dependent on ICMP; can fail if ICMP blocked | Works regardless of ICMP; intrinsic to IP layer |
| Use Case | Preferred in modern networks for optimized packet flow | Fallback mechanism or used in networks without PMTUD support |
| Protocol Level | Transport layer aware; interacts with ICMP and IP layers | Implemented at IP layer only |
| Impact on Latency | Reduces latency by avoiding fragments | Increases latency due to fragmentation and reassembly |
Understanding Path MTU Discovery
Path MTU Discovery (PMTUD) determines the maximum transmission unit size on the network path by sending packets with the "Don't Fragment" (DF) bit set and listening for ICMP "Fragmentation Needed" messages. This process prevents packet fragmentation by ensuring packets are sized appropriately for all links along the route, enhancing network efficiency and performance. Understanding PMTUD is crucial to minimize latency and reduce overhead in IP networking, especially in environments with varying MTU sizes across intermediate devices.
The Fundamentals of Packet Fragmentation
Packet fragmentation occurs when a router divides a large IP packet into smaller fragments to fit the MTU of the outgoing link, ensuring data transmission across networks with varying MTU sizes. Path MTU Discovery (PMTUD) detects the smallest MTU along the path to the destination, allowing the source to send appropriately sized packets and avoid fragmentation. Fragmentation increases latency and overhead, while PMTUD improves efficiency by minimizing packet size and reducing fragmentation-related retransmissions.
How Path MTU Discovery Works
Path MTU Discovery works by sending packets with the "Don't Fragment" (DF) flag set, allowing routers to notify the sender when a packet exceeds the maximum transmission unit (MTU) along the path. When a packet is too large, routers return an ICMP "Fragmentation Needed" message containing the MTU of the next hop, enabling the sender to adjust the packet size accordingly. This process optimizes transmission efficiency by preventing fragmentation and reducing packet loss in IP networks.
Drawbacks of Relying on Fragmentation
Relying on fragmentation can significantly degrade network performance due to increased packet processing overhead and higher latency caused by reassembly at the destination. Fragmented packets are more susceptible to loss, requiring retransmission of entire datagrams, which reduces overall throughput and increases network congestion. Security vulnerabilities also arise since fragmented packets are often exploited in denial-of-service (DoS) attacks and complicate firewall filtering.
Performance Impacts: PMTUD vs. Fragmentation
Path MTU Discovery (PMTUD) enhances network performance by preventing packet fragmentation, thus reducing processing overhead on routers and minimizing latency caused by reassembly delays. Fragmentation can degrade throughput and increase CPU load on intermediate devices, leading to higher jitter and packet loss risks in real-time applications. Efficient PMTUD implementation optimizes bandwidth utilization and ensures smoother end-to-end data transmission across heterogeneous networks.
Security Considerations in Path MTU Discovery
Path MTU Discovery enhances network efficiency by identifying the maximum transmission unit without fragmentation, reducing overhead and latency. However, it introduces security risks such as ICMP message spoofing and black hole attacks, where attackers block or manipulate ICMP messages to disrupt communication. Network administrators must implement safeguards like filtering ICMP messages selectively and using secure protocols to mitigate these vulnerabilities while maintaining optimal path MTU settings.
Common Issues with Fragmentation in Networks
Fragmentation in networks often causes increased latency and packet loss due to the need for routers to break down oversized packets into smaller fragments. Reassembly of these fragments at the destination can lead to inefficient use of resources and potential data corruption if any fragments are lost or delayed. Path MTU Discovery mitigates these issues by dynamically determining the optimal packet size, avoiding fragmentation altogether and improving network performance and reliability.
Troubleshooting Path MTU Problems
Troubleshooting Path MTU Discovery issues involves diagnosing dropped packets and excessive latency caused by incorrect MTU settings or blocked ICMP "Fragmentation Needed" messages. Using tools like ping with the "Don't Fragment" flag and examining ICMP error responses helps identify MTU mismatches and pinpoint problematic network segments. Proper network device configuration to allow ICMP messages ensures accurate Path MTU Discovery, preventing fragmentation-related connectivity failures.
Best Practices for Optimizing MTU in Networks
Optimizing MTU in networks requires leveraging Path MTU Discovery (PMTUD) to dynamically determine the largest packet size that can traverse the path without fragmentation, enhancing throughput and reducing latency. Network administrators should configure routers and firewalls to allow ICMP "Fragmentation Needed" messages, essential for PMTUD to function correctly and prevent black hole drops. Employing PMTUD over static fragmentation settings minimizes overhead and improves overall network efficiency by avoiding unnecessary packet splits and reassembly delays.
Future Trends: Beyond Fragmentation and PMTUD
Emerging trends in networking emphasize intelligent path-aware protocols that dynamically adjust packet sizes beyond traditional Path MTU Discovery (PMTUD) and fragmentation methods, leveraging machine learning to predict optimal transmission parameters. Innovations in transport layer protocols, such as QUIC and multipath TCP, enable more efficient data flow management by reducing reliance on fallback fragmentation strategies. Future networking architectures aim to integrate real-time network condition analytics, thereby enhancing throughput and minimizing latency without the overhead of fragmentation or PMTUD failure scenarios.

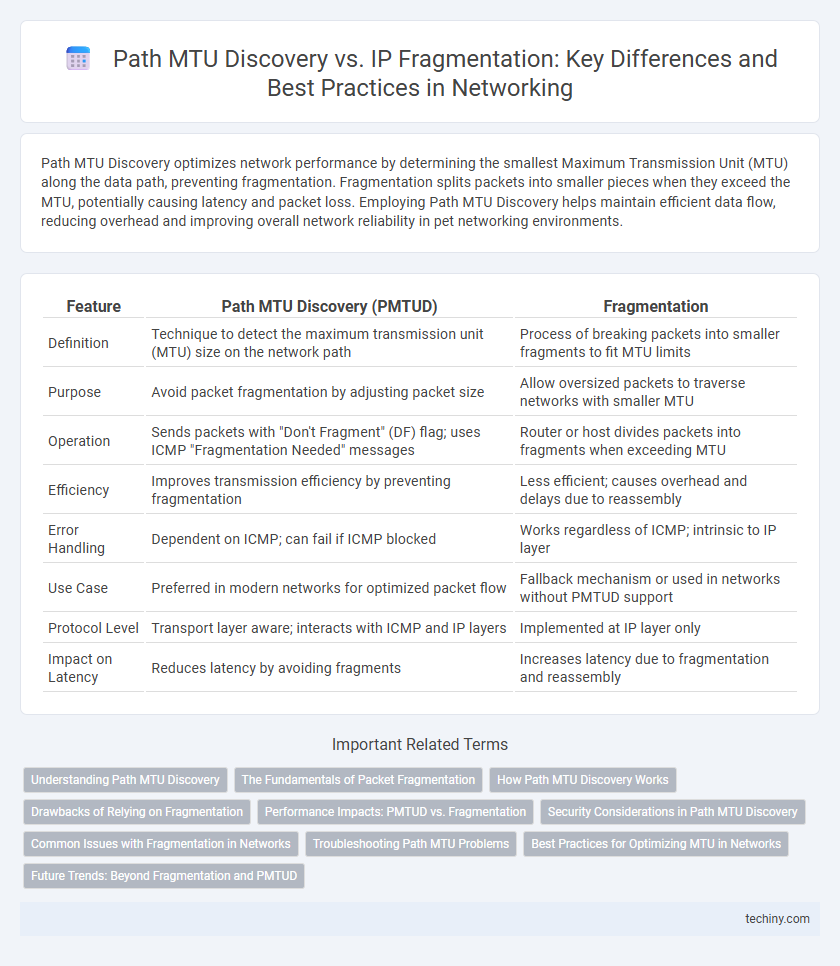

Path MTU Discovery vs Fragmentation Infographic
