techiny.com SFP (Small Form-factor Pluggable) modules are designed for lower data rates, typically supporting up to 10 Gbps, making them ideal for standard network connections. QSFP (Quad Small Form-factor Pluggable) modules support higher bandwidths, commonly up to 100 Gbps by aggregating four lanes, which suits data centers and high-performance computing environments. Choosing between SFP and QSFP depends on network speed requirements, port density, and scalability needs.
Table of Comparison
| Feature | SFP (Small Form-factor Pluggable) | QSFP (Quad Small Form-factor Pluggable) |
|---|---|---|
| Speed | Up to 10 Gbps | Up to 400 Gbps |
| Lane Count | 1 Lane | 4 Lanes |
| Form Factor | Single small form factor | Quad form factor, larger than SFP |
| Use Case | Server uplinks, switches, and routers for lower speeds | High-performance data center interconnects and switches |
| Distance | Varies: up to 80 km with single-mode fiber | Varies: supports short to long distances, up to 10+ km |
| Power Consumption | Lower | Higher |
| Cost | Lower cost modules | Higher cost, advanced modules |
Introduction to SFP and QSFP Modules
SFP (Small Form-factor Plabit) and QSFP (Quad Small Form-factor Plabit) modules serve as critical transceiver technologies in high-speed networking, enabling data transmission over fiber optic and copper cables. SFP modules typically support speeds up to 10 Gbps and are widely used in enterprise switches and routers for flexible network interface options. QSFP modules offer higher density and faster data rates, commonly supporting 40 Gbps or 100 Gbps, ideal for data center and high-performance computing environments requiring scalable bandwidth solutions.
Key Differences Between SFP and QSFP
SFP (Small Form-factor Pluggable) transceivers support data rates typically up to 10 Gbps, while QSFP (Quad Small Form-factor Pluggable) modules aggregate four SFP lanes to deliver speeds ranging from 40 Gbps to 400 Gbps, making QSFP ideal for high-bandwidth data center applications. SFP modules are designed for point-to-point connections and offer greater flexibility in network topology, whereas QSFP devices provide increased throughput and lower latency by combining multiple channels within a single pluggable unit. The physical size and port density differ significantly, with QSFP modules occupying more space but enabling higher port density and reduced cable complexity in aggregation or spine-leaf network architectures.
Form Factor and Physical Specifications
SFP (Small Form-factor Pluggable) modules are compact transceivers designed for single-channel data transmission, typically measuring around 13.4mm x 56.5mm x 8.5mm, making them ideal for 1 Gbps to 10 Gbps links. QSFP (Quad Small Form-factor Pluggable) modules, larger at approximately 18.35mm x 72.4mm x 8.5mm, support four channels aggregated into a single interface, enabling data rates from 40 Gbps to 400 Gbps. The physical specifications of QSFP allow higher port density and increased bandwidth within the same switch or network device, optimizing space and performance in data centers.
Data Rate and Bandwidth Capabilities
SFP (Small Form-factor Pluggable) modules typically support data rates up to 10 Gbps, ideal for standard Ethernet and Fibre Channel applications. QSFP (Quad Small Form-factor Pluggable) modules deliver significantly higher bandwidth, supporting up to 40 Gbps or 100 Gbps, making them suitable for high-performance data center and enterprise network environments. The increased lane aggregation in QSFP modules allows for greater scalability and efficiency in managing large volumes of network traffic.
Application Scenarios for SFP and QSFP
SFP modules are ideal for short to medium-distance connections such as within data centers or between network switches, offering flexibility in 1Gbps to 10Gbps speeds typically used in enterprise LAN setups. QSFP modules support higher data rates from 40Gbps to 400Gbps, making them suitable for high-performance computing environments, data center spine switches, and telecommunications infrastructure requiring aggregated bandwidth. Both SFP and QSFP form factors support various transmission media including fiber optics and copper, but QSFP's ability to handle aggregated links makes it the preferred choice for scalable, high-density network architectures.
Power Consumption and Efficiency
SFP (Small Form-factor Pluggable) transceivers generally consume less power, typically around 1 watt per module, making them suitable for lower data rate applications and energy-efficient deployments. QSFP (Quad Small Form-factor Pluggable) modules, designed for higher data rates up to 400 Gbps, have higher power consumption ranging from 3 to 6 watts but provide greater bandwidth efficiency by consolidating multiple lanes into a single interface. Choosing between SFP and QSFP depends on balancing power efficiency with network throughput requirements and the overall energy budget of the data center or network infrastructure.
Compatibility and Interoperability
SFP (Small Form-factor Pluggable) and QSFP (Quad Small Form-factor Pluggable) modules differ significantly in compatibility and interoperability, with SFP supporting single-channel connections up to 10 Gbps and QSFP designed for multi-channel links supporting up to 100 Gbps. Compatibility challenges arise because SFP modules are typically used in legacy or lower-speed networks, while QSFP modules require specific QSFP ports or adapters for full functionality. Interoperability depends on vendor standards and firmware support, making careful selection crucial for seamless integration in mixed networking environments.
Cost Analysis: SFP vs QSFP
SFP (Small Form-factor Pluggable) modules generally offer lower initial costs compared to QSFP (Quad Small Form-factor Pluggable) modules, making them suitable for budget-conscious networking environments. QSFP modules, while more expensive upfront, deliver higher port density and aggregate bandwidth, potentially reducing overall infrastructure expenses by minimizing the need for additional hardware. Evaluating total cost of ownership requires analyzing specific deployment scales, as QSFP can provide better cost efficiency in high-capacity data centers despite higher per-unit prices.
Scalability and Future-Proofing
SFP modules offer scalable connectivity primarily suited for 1Gbps to 10Gbps links, making them ideal for current network infrastructures with moderate bandwidth demands. QSFP modules support higher data rates up to 400Gbps, providing exceptional future-proofing for evolving data center networks requiring increased capacity and reduced port density. Selecting QSFP enables seamless upgrades and extended network lifespan by accommodating growing traffic without frequent hardware replacements.
Choosing the Right Module for Your Network
Choosing the right module for your network depends on factors such as bandwidth requirements, distance, and device compatibility. SFP modules generally support speeds up to 10 Gbps and are suitable for shorter distance connections, while QSFP modules offer higher speeds up to 100 Gbps and are ideal for data centers and long-haul networks. Evaluating current infrastructure and future scalability is essential to optimize performance and cost-efficiency in network deployment.

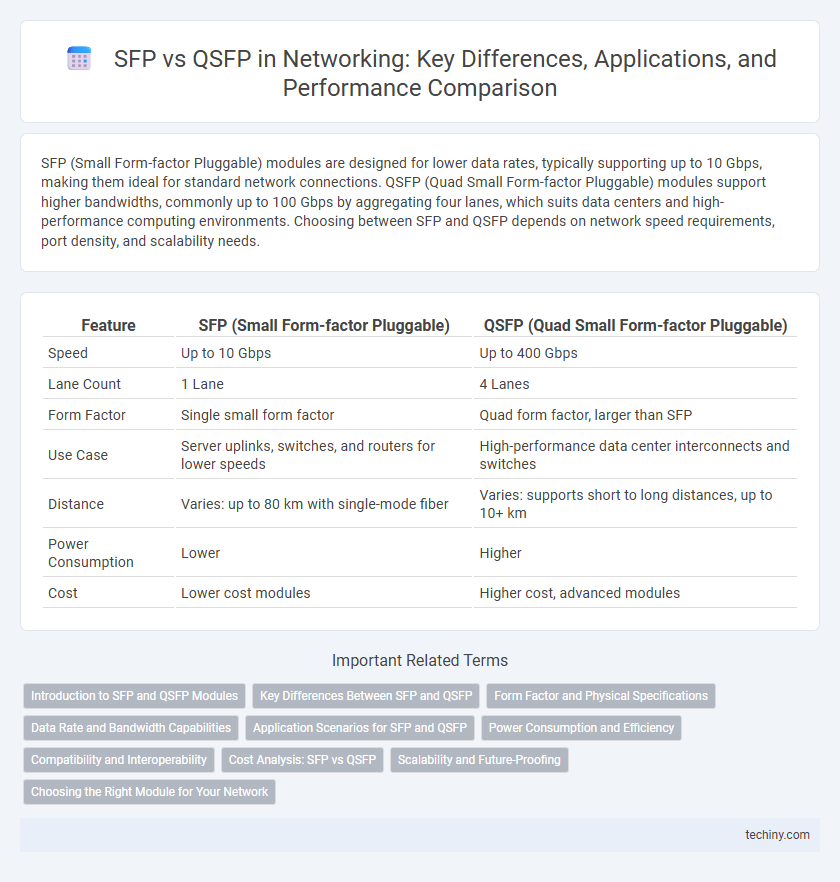

SFP vs QSFP Infographic
