techiny.com STP (Spanning Tree Protocol) provides loop-free topology in Ethernet networks by blocking redundant paths, but it has slower convergence times during network changes. RSTP (Rapid Spanning Tree Protocol) enhances STP with faster recovery capabilities, significantly reducing downtime by quickly recalculating the network topology when a link failure occurs. Both protocols prevent network loops, but RSTP is preferred for modern, time-sensitive networking environments due to its improved efficiency and speed.
Table of Comparison
| Feature | STP (Spanning Tree Protocol) | RSTP (Rapid Spanning Tree Protocol) |
|---|---|---|
| Standard | IEEE 802.1D | IEEE 802.1w |
| Convergence Time | 30-50 seconds | Less than 1 second |
| Port Roles | Root, Designated, Blocking | Root, Designated, Alternate, Backup |
| Port States | Blocking, Listening, Learning, Forwarding, Disabled | Discarding, Learning, Forwarding |
| Backward Compatibility | Supports legacy devices | Compatible with STP |
| BPDU Handling | Sent every 2 seconds | Faster BPDU exchange |
| Topology Changes | Slower, longer downtime | Fast topology change detection |
| Use Case | Legacy networks | Modern, fast-converging networks |
Understanding STP and RSTP: An Overview
Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) are essential network layer 2 protocols designed to prevent bridge loops and ensure a loop-free topology in Ethernet networks. STP, defined in IEEE 802.1D, provides basic loop prevention with slower convergence times, typically 30 to 50 seconds, while RSTP, standardized as IEEE 802.1w, enhances network performance by reducing convergence time to a few seconds through faster transition states and improved port roles. Both protocols maintain network stability by dynamically blocking redundant paths and automatically adapting to topology changes, but RSTP's optimized mechanics greatly benefit modern, high-demand networking environments.
Key Differences between STP and RSTP
STP (Spanning Tree Protocol) and RSTP (Rapid Spanning Tree Protocol) differ primarily in convergence speed and port roles; STP uses a slower process requiring 30-50 seconds to reconfigure, while RSTP achieves rapid convergence in under 10 seconds. RSTP introduces new port states like discarding, learning, and forwarding, replacing STP's blocking and listening states, thus enhancing network stability and failure recovery. Additionally, RSTP supports rapid transition on edge ports and point-to-point links, improving redundancy and reducing downtime compared to STP's slower topology changes.
How STP Works in Modern Networks
Spanning Tree Protocol (STP) operates in modern networks by preventing loops through the creation of a loop-free logical topology, designating a root bridge, and blocking redundant paths while allowing a backup for failover. It uses Bridge Protocol Data Units (BPDUs) to communicate topology changes and recalculates paths to maintain network stability. STP's convergence time can be slower compared to Rapid Spanning Tree Protocol (RSTP), but it remains effective in managing legacy network environments.
RSTP: Improved Convergence and Efficiency
Rapid Spanning Tree Protocol (RSTP) offers significantly improved convergence times compared to the original Spanning Tree Protocol (STP), reducing network downtime and enhancing overall efficiency. RSTP achieves this through faster port state transitions and active role detection, enabling networks to quickly adapt to topology changes with minimal disruption. The protocol's enhanced mechanisms support robust loop prevention while maintaining optimal path selection, making it ideal for modern, high-performance Ethernet networks.
Protocol Operation and Topology Changes
Spanning Tree Protocol (STP) uses a slower convergence mechanism relying on timer-based states like listening and learning, resulting in longer topology change recovery times. Rapid Spanning Tree Protocol (RSTP) enhances protocol operation by introducing immediate transition to the forwarding state and uses proposal-agreement handshakes, significantly reducing downtime during topology changes. RSTP's efficient topology change detection and faster port roles adaptation ensure minimal network disruption compared to STP.
Compatibility with Legacy Network Devices
STP (Spanning Tree Protocol) maintains broad compatibility with legacy network devices by using the original IEEE 802.1D standard, ensuring stable integration in mixed environments. RSTP (Rapid Spanning Tree Protocol), defined in IEEE 802.1w, enhances network convergence speed while preserving backward compatibility by falling back to STP modes when interacting with older devices. This dual-mode operation allows RSTP to optimize performance without disrupting existing network infrastructures relying on traditional STP.
Configuration and Implementation Best Practices
STP (Spanning Tree Protocol) requires longer convergence times and manual configuration of bridge priorities and path costs to prevent loops, whereas RSTP (Rapid Spanning Tree Protocol) offers faster convergence through rapid state transitions and more efficient BPDU exchange. Best practices for STP involve configuring root bridges with the lowest bridge priority and tuning port costs, while RSTP implementations prioritize consistent port roles and edge port configurations to minimize topology changes. Both protocols benefit from redundant link planning, enabling rapid recovery in case of failures while avoiding broadcast storms.
Network Scalability: STP vs RSTP
Rapid Spanning Tree Protocol (RSTP) significantly enhances network scalability compared to the traditional Spanning Tree Protocol (STP) by reducing convergence time from 30-50 seconds to a few milliseconds. This faster convergence enables larger and more complex network topologies without prolonged downtime or broadcast storms. RSTP's improved loop prevention mechanisms support efficient expansion of Layer 2 networks, making it ideal for scalable enterprise and campus network deployments.
Troubleshooting Common Issues in STP and RSTP
STP often encounters issues like slow convergence and blocked ports leading to network delays, while RSTP significantly reduces convergence time, minimizing downtime during topology changes. Common troubleshooting in STP involves identifying blocked ports causing network loops or failures, whereas RSTP troubleshooting focuses on ensuring rapid state transitions and correct bridge port roles. Monitoring BPDU exchanges and port states using tools like Wireshark and switch CLI commands is critical for diagnosing problems in both protocols.
Choosing Between STP and RSTP for Your Network
Choosing between STP and RSTP hinges on network size, performance requirements, and convergence speed needs. RSTP offers faster convergence and improved fault tolerance, making it ideal for modern, large-scale networks with frequent topology changes. STP remains suitable for smaller or legacy environments where simplicity and compatibility with older devices are prioritized.

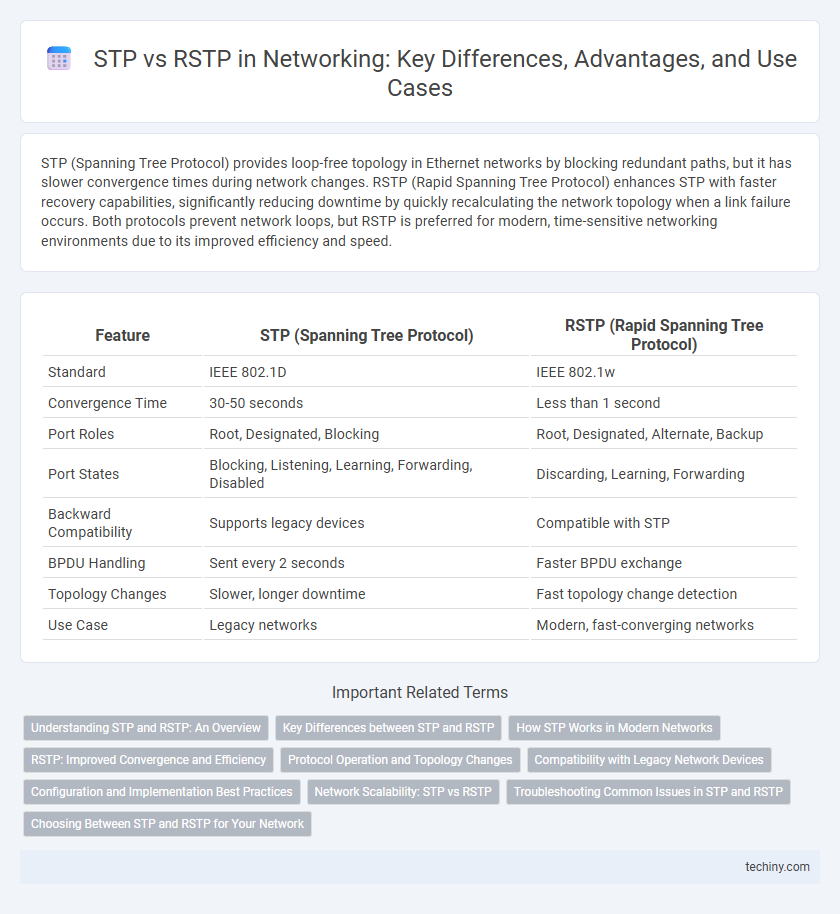

STP vs RSTP Infographic
