techiny.com Direct drive systems in robotics offer higher precision and reduced backlash by eliminating gears, resulting in smoother and more accurate motion control. Geared drives provide increased torque and speed variation but introduce mechanical complexity and potential maintenance issues due to gear wear. Choosing between direct drive and geared drive depends on the application's requirements for accuracy, torque, and system longevity.
Table of Comparison
| Feature | Direct Drive | Geared Drive |
|---|---|---|
| Mechanism | Motor connected directly to the load | Motor connected through gear reduction |
| Torque Output | Lower torque, high precision | Higher torque via gear multiplication |
| Backlash | Minimal to none | Present, depending on gear quality |
| Maintenance | Low maintenance | Requires regular gear inspection and lubrication |
| Efficiency | High efficiency due to fewer components | Lower efficiency, increased friction loss |
| Control Precision | Superior control accuracy | Reduced precision due to gear backlash |
| Size & Weight | Bulkier motor size | Smaller motor with added gear assembly |
| Cost | Higher initial cost | Typically lower initial cost |
| Application | High precision robotics, sensitive force control | High torque applications, heavy load handling |
Understanding Direct Drive and Geared Drive Technologies
Direct drive technology in robotics eliminates intermediate gears by connecting the motor shaft directly to the load, offering higher precision, lower backlash, and improved responsiveness. Geared drive systems use gearboxes to increase torque and reduce motor speed, enabling compact designs but introducing potential issues like gear wear, backlash, and maintenance requirements. Selecting between direct drive and geared drive depends on application demands such as torque requirements, positional accuracy, and system complexity.
Core Components of Direct Drive Systems
Direct drive systems in robotics eliminate intermediate gears, relying on high-torque, low-inertia motors such as frameless or pancake motors that connect directly to the load. Key components include the rotor with permanent magnets, stator windings optimized for efficient electromagnetic force generation, and advanced encoder systems for precise position and velocity feedback. These components enable higher responsiveness, reduced backlash, and increased mechanical simplicity compared to geared drive systems.
Essential Features of Geared Drive Mechanisms
Geared drive mechanisms in robotics offer precise torque amplification through multiple gear stages, enabling high force output with compact motor sizes. Their essential features include gear ratio customization for velocity and torque optimization, enhanced load capacity, and improved positional accuracy due to reduced backlash. These mechanisms also provide robustness in demanding applications by distributing mechanical stress across gears, increasing overall system durability.
Performance Comparison: Direct Drive vs Geared Drive
Direct drive systems provide superior torque and precision by eliminating backlash and reducing mechanical complexity, which enhances responsiveness and control in robotic arms. Geared drives, while offering higher torque multiplication and compact size, often introduce backlash and increased maintenance requirements, impacting overall accuracy and repeatability. Performance in high-speed, high-precision applications favors direct drive, whereas geared drives excel in scenarios demanding increased torque with cost and space constraints.
Efficiency and Energy Consumption Analysis
Direct drive motors offer higher efficiency by eliminating gearbox losses, resulting in reduced energy consumption and improved thermal performance. Geared drives introduce mechanical losses due to friction and backlash, which decrease overall system efficiency and increase power requirements. Analyzing energy consumption, direct drive systems demonstrate superior performance in applications demanding high precision and continuous operation.
Precision and Accuracy in Robotic Applications
Direct drive systems in robotics offer superior precision and accuracy by eliminating backlash and minimizing mechanical compliance, resulting in smoother and more responsive motion control. Geared drives introduce gear backlash and friction, which can degrade positional accuracy and limit repeatability in high-precision tasks. For applications demanding exact movements, such as surgical robots or semiconductor manufacturing, direct drive actuators provide enhanced control fidelity and consistent performance.
Maintenance Requirements and Reliability Factors
Direct drive systems in robotics offer lower maintenance requirements due to fewer moving parts and the absence of gears, which reduces wear and tear and minimizes lubrication needs. Geared drives, while providing higher torque, involve complex gear trains that demand regular inspection, lubrication, and potential replacement of worn components, increasing downtime and maintenance costs. Reliability in direct drive robots is enhanced by simpler design and reduced mechanical backlash, whereas geared drives may suffer from gear backlash and greater susceptibility to mechanical failures.
Cost Implications: Upfront and Long-Term
Direct drive systems typically have higher upfront costs due to precision manufacturing and advanced materials but lower maintenance expenses over time because of fewer moving parts and reduced wear. Geared drive systems generally offer lower initial investment but incur increased long-term costs related to gearbox maintenance, lubrication, and potential component replacement. Analyzing total cost of ownership reveals that direct drive solutions can be more economical for high-duty robotic applications requiring reliability and precision.
Application Suitability in Industrial Robotics
Direct drive systems excel in applications requiring high precision and rapid response times, such as robotic arms used in semiconductor manufacturing or delicate assembly tasks. Geared drive systems are better suited for heavy-duty industrial robots involved in material handling, welding, or machining, where high torque and load capacity are critical. Selecting between direct and geared drives depends on factors like speed, torque requirements, and operational accuracy essential for specific industrial robotics applications.
Future Trends in Robotic Drive Technologies
Future trends in robotic drive technologies emphasize the shift from traditional geared drives to direct drive systems due to their superior precision, reduced maintenance, and enhanced energy efficiency. Innovations in magnetic and torque motor designs enable direct drives to deliver higher torque densities and smoother motion control without backlash. Advanced sensor integration and AI-driven predictive maintenance further optimize performance, accelerating adoption in applications requiring high dexterity and dynamic response.

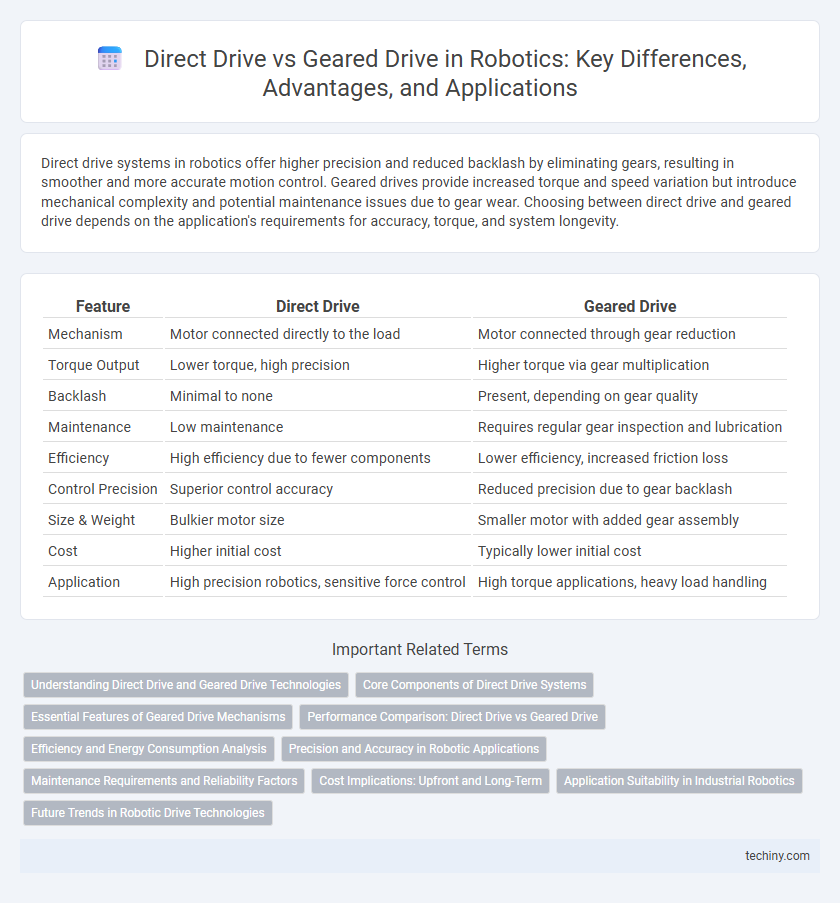

direct drive vs geared drive Infographic
