techiny.com MVC separates an application into three interconnected components: Model, View, and Controller, facilitating organized code and clear responsibility distribution. MVVM enhances this by introducing the ViewModel, which acts as a mediator between the Model and the View, enabling two-way data binding that simplifies UI updates and state management. Choosing between MVC and MVVM depends on the application's complexity and the need for data synchronization, with MVVM often preferred for rich, interactive user interfaces.
Table of Comparison
| Aspect | MVC (Model-View-Controller) | MVVM (Model-View-ViewModel) |
|---|---|---|
| Definition | Architectural pattern that separates application into Model, View, and Controller components. | Architectural pattern separating UI (View) from business logic via ViewModel, enabling data binding. |
| Components | Model, View, Controller | Model, View, ViewModel |
| Primary Focus | Handling user input, updating model, and refreshing UI. | Two-way data binding between View and ViewModel, simplifying UI logic. |
| Communication | View communicates with Controller; Controller updates Model and View. | View binds directly to ViewModel properties and commands; ViewModel mediates Model. |
| Data Binding | Usually manual, less automated data binding. | Supports automatic two-way data binding between View and ViewModel. |
| Use Cases | Web applications, traditional UI frameworks. | Rich client apps, WPF, Xamarin, and modern UI platforms. |
| Testability | Moderate; Controller logic testing, UI testing harder. | High; ViewModel can be tested independently of UI. |
| Complexity | Simpler, less abstraction. | More complex due to ViewModel and binding setup. |
Understanding MVC and MVVM Architectures
MVC (Model-View-Controller) architecture separates an application into three interconnected components, enabling organized code by dividing the data model, user interface, and control logic. MVVM (Model-View-ViewModel) extends this concept by adding the ViewModel layer, which facilitates two-way data binding and enhances the separation between the user interface and business logic. Understanding these architectural patterns improves software maintainability and scalability by clearly defining responsibilities and promoting modular design.
Historical Evolution of MVC and MVVM
MVC originated in the 1970s at Xerox PARC as a pattern to separate concerns in Smalltalk applications, significantly influencing user interface development. MVVM emerged in the early 2000s, primarily through Microsoft, to address the complexities of data-binding in WPF, enabling a more declarative UI approach. The historical evolution of MVC and MVVM reflects shifts in software architecture driven by advances in UI frameworks and developer productivity needs.
Core Components: Breaking Down MVC
The MVC architecture divides software applications into three core components: Model, View, and Controller, where the Model handles data and business logic, the View manages the user interface, and the Controller acts as an intermediary processing user input and updating Model and View accordingly. This separation of concerns promotes modularity and easier maintenance by isolating the user interface from underlying data manipulations. In contrast, MVVM introduces the ViewModel as an abstraction of the View, focusing on data binding and state management to enhance UI responsiveness and testability.
Core Components: Breaking Down MVVM
MVVM (Model-View-ViewModel) separates the user interface logic from business logic by introducing the ViewModel, which acts as an intermediary between the Model and the View, enabling two-way data binding and improved testability. The core components include the Model, representing data and business rules; the View, displaying UI elements and user interactions; and the ViewModel, managing the presentation logic and state without direct reference to the View. This architecture enhances modularity and maintainability compared to MVC, where the Controller directly handles user input and updates both Model and View components.
Data Binding in MVVM vs MVC
MVVM architecture leverages two-way data binding between the View and ViewModel, enabling automatic synchronization of UI elements with underlying data models, which reduces boilerplate code and enhances maintainability. In contrast, MVC requires manual updates between the View and Controller, often leading to more imperative code and increased complexity in managing UI state. Data binding in MVVM promotes a reactive programming model, improving responsiveness and separation of concerns compared to the event-driven approach typical in MVC.
Testability and Maintainability Comparison
MVC architecture separates concerns by dividing application logic into Model, View, and Controller, but tightly couples the Controller with the View, which can limit testability. MVVM enhances testability by decoupling the ViewModel from the View through data binding, allowing for isolated unit testing of the ViewModel without UI dependencies. Maintainability improves in MVVM as changes in the UI or business logic rarely require modifications in other components, whereas MVC often demands simultaneous adjustments in Controllers and Views.
Development Workflow: MVC vs MVVM
MVC structures development with a clear separation between Model, View, and Controller, where the Controller manages user input and updates the View and Model directly. MVVM enhances this workflow by introducing the ViewModel, acting as an intermediary that binds the Model and View through data-binding, reducing the amount of boilerplate code. This leads to more maintainable codebases and easier testing in MVVM compared to the tighter coupling found in MVC development workflows.
Performance Implications of MVC and MVVM
MVC architecture offers faster initial load times due to its straightforward data-binding process, making it suitable for simpler applications with minimal UI complexity. MVVM leverages two-way data binding and observable properties, which can introduce overhead and impact runtime performance but enhances maintainability and scalability in complex interfaces. Performance optimization in MVVM often requires careful management of bindings and state changes to mitigate latency in dynamic UI rendering.
Real-World Use Cases for MVC and MVVM
MVC is widely used in web applications like Ruby on Rails and ASP.NET, where clear separation between data, user interface, and input controls facilitates rapid development and maintenance. MVVM excels in desktop and mobile applications such as WPF, Xamarin, and Angular, offering two-way data binding that enhances real-time UI updates and simplifies state management. Large-scale enterprise applications often combine MVC for backend processing with MVVM for rich interactive frontends to optimize user experience and development efficiency.
Choosing the Right Architecture for Your Project
Choosing the right architecture between MVC and MVVM hinges on project complexity and maintainability requirements. MVC excels in simple applications with clear separation of concerns, while MVVM offers enhanced data binding and modularity for complex, scalable projects. Prioritizing MVVM can improve testability and streamline UI updates through automated ViewModel synchronization.

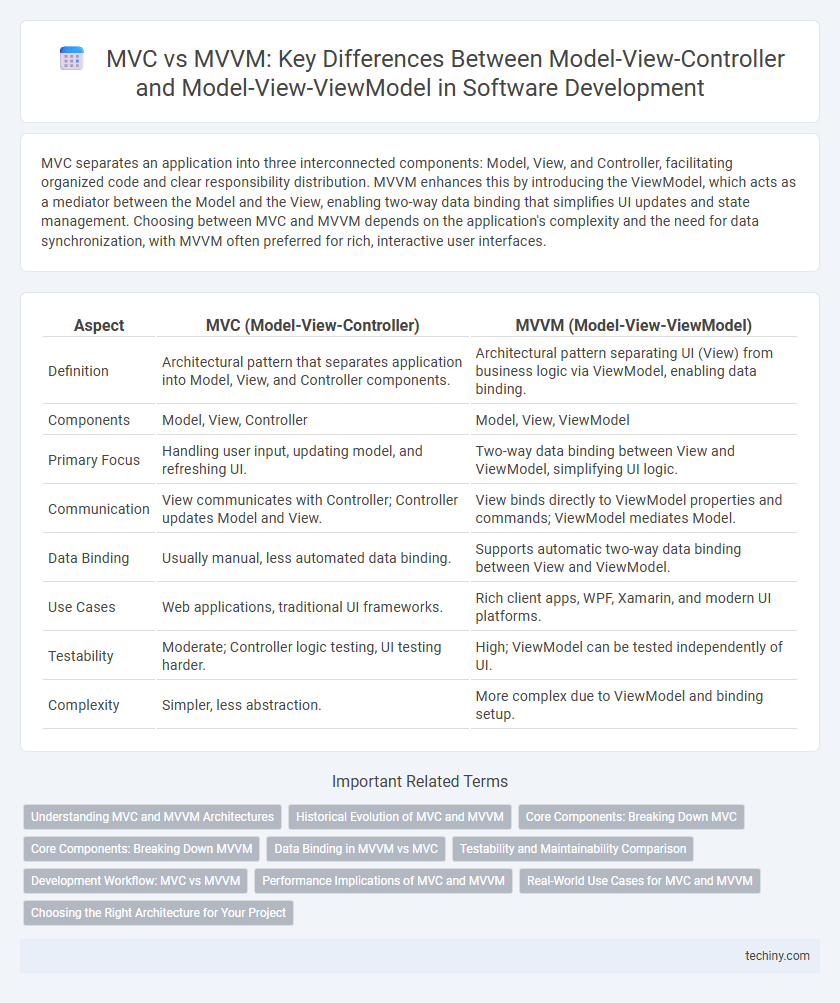

MVC (Model-View-Controller) vs MVVM (Model-View-ViewModel) Infographic
