techiny.com Active multiplexing uses electronic components to combine multiple signals, enhancing signal strength and allowing dynamic bandwidth management, while passive multiplexing relies on fixed, non-powered devices like splitters or couplers that divide signals without amplification. Active multiplexers improve transmission quality over long distances and support complex signal routing in telecommunications networks. Passive multiplexers are simpler, more cost-effective, and require less maintenance but may experience signal loss and limited scalability.
Table of Comparison
| Feature | Active Multiplexing | Passive Multiplexing |
|---|---|---|
| Definition | Combines multiple signals using powered electronic components | Combines signals using unpowered, passive components |
| Signal Amplification | Yes, amplifies signals to maintain quality | No amplification, signal can degrade over distance |
| Power Requirement | Requires external power source | No power needed |
| Complexity | Higher complexity, more components involved | Simple design with fewer components |
| Cost | Higher initial and maintenance cost | Lower cost and maintenance |
| Applications | Long-distance transmission, high data rate communication | Short-distance, low data rate scenarios |
| Reliability | Higher reliability due to signal boosting | Potential signal loss, less reliable over longer links |
Introduction to Multiplexing in Telecommunications
Multiplexing in telecommunications enables the transmission of multiple signals over a single communication channel, enhancing bandwidth efficiency. Active multiplexing utilizes electronic components like amplifiers and modulators to combine and separate signals dynamically, supporting higher data rates and complex signal management. Passive multiplexing relies on static devices such as multiplexers and demultiplexers without amplification, suitable for simpler, low-cost applications with limited signal processing requirements.
Defining Active and Passive Multiplexing
Active multiplexing involves electronically combining multiple signals into one, using powered devices that amplify and manage data streams, enhancing signal quality and enabling dynamic bandwidth allocation. Passive multiplexing, by contrast, merges signals through unpowered, static devices like splitters or combiners, relying solely on physical properties without signal amplification or processing. Understanding the distinction between these methods is crucial for optimizing network performance, scalability, and efficiency in telecommunications infrastructure.
Key Differences Between Active and Passive Multiplexing
Active multiplexing uses electronic devices to combine multiple signals by actively managing and amplifying them, enabling higher data rates and extended transmission distances. Passive multiplexing relies on passive components such as filters or couplers to combine signals without amplification, which limits signal strength and distance but reduces power consumption and complexity. Key differences include signal amplification, power requirements, complexity, and suitable applications within telecommunications networks.
How Active Multiplexing Works in Modern Networks
Active multiplexing in modern telecommunications networks employs electronic switching and signal regeneration to dynamically allocate bandwidth, enabling efficient data transmission over shared channels. It uses intelligent hardware such as digital signal processors to combine multiple input signals into a single, high-capacity output stream while maintaining signal integrity and reducing interference. This approach supports real-time traffic management, ensuring optimized network performance and scalability in complex communication infrastructures.
Mechanisms of Passive Multiplexing Explored
Passive multiplexing operates by splitting or combining signals using devices like optical splitters, filters, and wavelength-division multiplexing (WDM) components without requiring external power sources. This mechanism enables efficient signal distribution across multiple channels by passively directing transmitted data streams based on wavelength or time slots. Passive multiplexing's reliance on physical optical components reduces complexity and power consumption while maintaining high reliability in fiber-optic telecommunications networks.
Performance Comparison: Active vs Passive Multiplexing
Active multiplexing offers higher performance than passive multiplexing by utilizing electronic components to amplify and regenerate signals, which reduces signal degradation over long distances. Passive multiplexing relies solely on optical components, leading to increased signal attenuation and limited scalability. Consequently, active multiplexers deliver enhanced bandwidth efficiency and improved transmission quality in complex telecommunications networks.
Cost Implications in Network Design
Active multiplexing involves electronic components that require power and maintenance, leading to higher upfront and operational costs compared to passive multiplexing, which relies on passive optical splitters without power consumption. Network designs using passive multiplexing benefit from reduced energy expenditure and lower hardware expenses, making it cost-effective for large-scale deployments. However, active multiplexers provide enhanced signal quality and dynamic bandwidth allocation, potentially reducing long-term costs associated with network upgrades and performance issues.
Scalability and Flexibility Considerations
Active multiplexing offers superior scalability by electronically managing multiple data streams simultaneously, enabling dynamic bandwidth allocation and seamless integration of additional channels without significant infrastructure changes. Passive multiplexing relies on fixed optical components, limiting flexibility and scalability as channel capacity expansion requires physical hardware modifications. Opting for active multiplexing supports rapid network growth and adaptability to evolving telecommunications demands, crucial for modern high-capacity, flexible communication systems.
Application Scenarios: When to Use Each Approach
Active multiplexing suits dynamic telecommunications environments requiring signal amplification and regeneration over long distances, such as in fiber optic networks and high-capacity data centers. Passive multiplexing is ideal for short-range applications with limited power sources, including local area networks and simple analog signal distribution systems. Choosing the right multiplexing approach depends on factors like signal integrity, distance, network complexity, and budget constraints.
Future Trends in Telecommunication Multiplexing Technologies
Future trends in telecommunication multiplexing technologies emphasize the integration of active multiplexing systems to support the growing demand for higher bandwidth and dynamic resource management, leveraging advanced signal processing and intelligent control. Passive multiplexing remains essential for cost-effective and low-power applications but is increasingly complemented by active solutions to enhance scalability and adaptability in 5G and beyond networks. Innovations such as photonic integrated circuits and machine learning algorithms drive the evolution of multiplexing, enabling real-time optimization and efficient spectrum utilization in next-generation communication infrastructures.

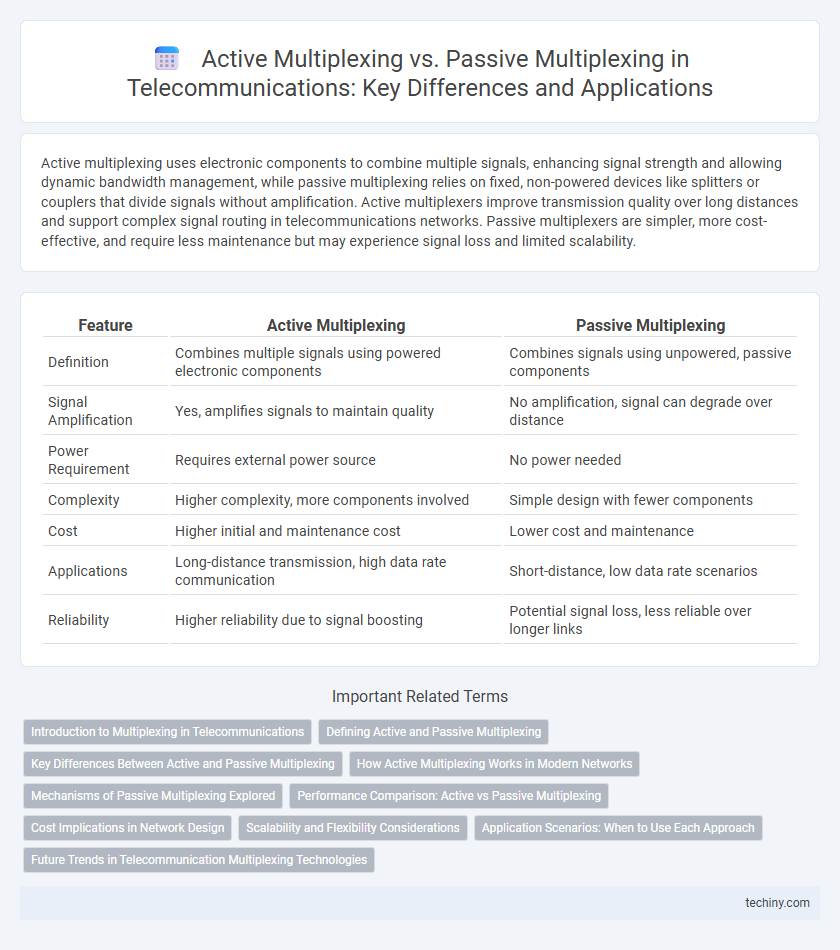

Active Multiplexing vs Passive Multiplexing Infographic
