techiny.com A duplexer enables simultaneous transmission and reception on the same antenna by separating signals based on frequency bands, enhancing communication efficiency in duplex systems. A diplexer, however, allows two different frequency bands to share a single antenna but only supports either transmission or reception at a time, making it ideal for combining signals in simpler setups. Understanding the distinct roles of duplexers and diplexers is crucial for optimizing telecommunications equipment performance and signal flow.
Table of Comparison
| Feature | Duplexer | Diplexer |
|---|---|---|
| Function | Separates transmit and receive signals on the same frequency band | Separates signals into different frequency bands for shared antennas |
| Frequency Bands | Operates within a single frequency band | Operates across multiple frequency bands |
| Application | Used in transceivers for simultaneous transmission and reception | Used to connect multiple radios to one antenna or vice versa |
| Isolation Level | High isolation between transmit and receive paths | Moderate isolation between frequency bands |
| Typical Use Case | Mobile radios, base stations supporting duplex communication | Multiband antenna systems, shared antenna setups |
Introduction to Duplexers and Diplexers
Duplexers and diplexers are critical components in telecommunications for managing signal paths. Duplexers enable simultaneous transmission and reception over a single antenna by separating transmit and receive frequencies, optimizing bandwidth efficiency. Diplexers combine or split signals based on frequency, allowing multiple services to share the same transmission medium without interference.
Understanding Signal Routing in Telecommunications
A duplexer enables simultaneous transmission and reception of signals on a single antenna by isolating the transmitter and receiver frequencies, crucial for full-duplex systems. In contrast, a diplexer combines or separates multiple signals based on distinct frequency bands, allowing multiple devices to share a single antenna without interference. Understanding the distinct role of duplexers and diplexers in signal routing optimizes frequency management and enhances overall telecommunications system efficiency.
Core Functions: Duplexer Explained
A duplexer is a critical component in telecommunications that enables simultaneous transmission and reception of signals using a single antenna by separating transmit and receive paths based on frequency. Unlike a diplexer, which divides signals into different frequency bands without overlapping functions, the duplexer provides frequency isolation and prevents interference between channels operating at close frequencies. This core function allows efficient full-duplex communication in devices such as mobile phones and radio transceivers, enhancing signal integrity and system performance.
Core Functions: Diplexer Explained
A diplexer in telecommunications serves as a frequency-selective device that enables the simultaneous transmission and reception of signals over a single antenna by separating distinct frequency bands. It filters and directs signals into two different paths without overlapping, supporting efficient multiplexing in RF systems. Unlike a duplexer, which isolates transmit and receive signals within the same frequency range, the diplexer manages separate frequency bands to optimize bandwidth usage and reduce interference.
Key Differences Between Duplexer and Diplexer
A duplexer separates transmit and receive signals on the same antenna and frequency band, enabling simultaneous two-way communication, while a diplexer combines or splits signals into two different frequency bands for transmission or reception. Duplexers are essential in devices like radios and cellular base stations for isolating signals within the same spectrum, whereas diplexers are typically used in systems requiring sharing of a single antenna between two distinct frequency bands, such as TV antennas handling UHF and VHF. The main difference lies in their frequency operation: duplexers operate over one frequency range with isolation between transmit and receive paths, while diplexers handle two separate frequency bands without needing isolation for simultaneous transmission.
Applications in Modern Telecommunication Systems
Duplexers are essential in modern telecommunication systems for enabling simultaneous transmission and reception on a single antenna, commonly found in mobile base stations and wireless communication devices. Diplexers are used to combine or separate multiple frequency bands, facilitating efficient spectrum utilization in systems like satellite communications and multiband radio networks. Both components improve network performance by optimizing signal routing and minimizing interference in complex telecommunication infrastructures.
Performance Comparison: Loss, Isolation, and Interference
Duplexers exhibit superior isolation performance, typically achieving 60 to 80 dB, minimizing interference between transmit and receive paths with insertion loss ranging from 0.5 to 1.5 dB. Diplexers generally have higher insertion loss, around 1 to 3 dB, and lower isolation, often below 40 dB, which can result in increased signal crosstalk and potential interference in shared antenna systems. The choice between duplexer and diplexer depends on the application's critical need for interference suppression and overall system loss constraints in telecom networks.
Design Considerations for Duplexers and Diplexers
Design considerations for duplexers emphasize the isolation between transmit and receive paths to prevent signal interference, ensuring efficient frequency separation within a single device. Diplexer design focuses on combining or splitting signals across different frequency bands while minimizing insertion loss and maintaining high isolation between ports. Both require careful filtering technology, such as SAW or cavity filters, to optimize performance in telecommunications systems.
Selection Criteria: Choosing the Right Device
Selecting between a duplexer and a diplexer depends on the frequency band separation and isolation requirements in telecommunications systems. Duplexers are preferred for single antenna setups needing transmit and receive operations on closely spaced frequency channels, offering high isolation to prevent signal interference. Diplexers suit applications where combining or splitting signals of widely separated frequency bands is necessary, providing cost-effective solutions with simpler filtering needs.
Future Trends in RF Signal Management Devices
Duplexers and diplexers are evolving with integrated RF silicon technologies to support 5G and beyond, enabling dynamic spectrum allocation and enhanced frequency band management. Future trends emphasize miniaturization, increased isolation, and improved linearity to handle complex signal environments in multi-band, multi-mode wireless systems. Advanced materials like ferroelectric and MEMS components are being leveraged to enhance the performance of these RF signal management devices in next-generation telecommunications networks.

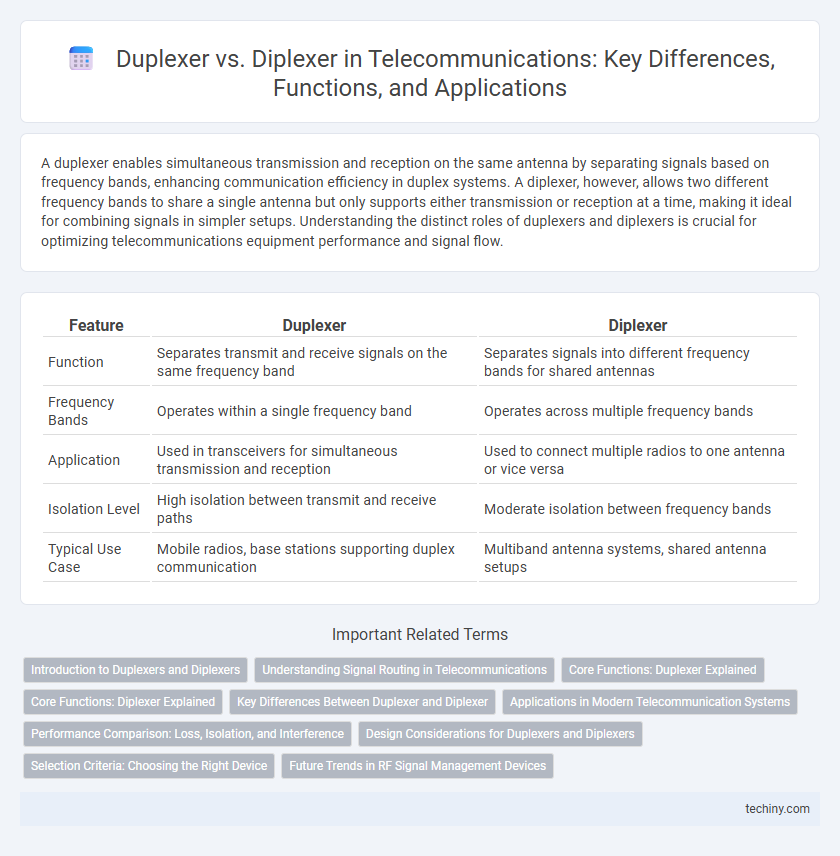

Duplexer vs Diplexer Infographic
