techiny.com Effective Isotropic Radiated Power (EIRP) measures the amount of power emitted by an antenna in a specific direction as if it were radiating equally in all directions, while Effective Radiated Power (ERP) compares the transmitted power to a half-wave dipole antenna reference. Both metrics are crucial for optimizing signal strength and coverage in telecommunications, but EIRP provides a more comprehensive assessment by accounting for the antenna gain over an isotropic source. Understanding the distinction between EIRP and ERP helps engineers design more efficient wireless transmission systems to meet regulatory requirements and maximize performance.
Table of Comparison
| Parameter | EIRP (Equivalent Isotropically Radiated Power) | ERP (Effective Radiated Power) |
|---|---|---|
| Definition | Power radiated by an isotropic antenna equivalent to actual antenna output | Power radiated by a half-wave dipole antenna equivalent to actual antenna output |
| Reference Antenna | Isotropic radiator (0 dBi gain) | Half-wave dipole (2.15 dBi gain) |
| Unit | Watts (W) or dBW/dBm | Watts (W) or dBW/dBm |
| Relation | EIRP = ERP + 2.15 dB | ERP = EIRP - 2.15 dB |
| Use Case | Common in satellite and regulatory power limits | Common in broadcasting and terrestrial radio systems |
| Calculation | EIRP = Transmitter Power x Antenna Gain (relative to isotropic) | ERP = Transmitter Power x Antenna Gain (relative to dipole) |
Understanding EIRP and ERP: Core Definitions
Effective Isotropic Radiated Power (EIRP) measures the total power radiated by an antenna as if it were an isotropic radiator, accounting for transmitter power and antenna gain relative to an isotropic source. Effective Radiated Power (ERP) calculates the power radiated relative to a half-wave dipole antenna, making ERP typically lower than EIRP by approximately 2.15 dB due to the dipole's gain. Understanding the difference between EIRP and ERP is essential for accurate compliance with regulations and precise antenna performance evaluations in telecommunications systems.
The Mathematical Difference: EIRP vs ERP Calculations
EIRP (Effective Isotropic Radiated Power) is calculated by adding the transmitter power output (TPO) and the antenna gain referenced to an isotropic radiator (dBi), minus any system losses, expressed as EIRP (dBm) = TPO (dBm) + antenna gain (dBi) - system losses (dB). ERP (Effective Radiated Power) differs by using antenna gain referenced to a half-wave dipole (dBd), thus ERP (dBm) = TPO (dBm) + antenna gain (dBd) - system losses (dB). The key mathematical relationship is ERP (dBm) = EIRP (dBm) - 2.15 dB, reflecting the 2.15 dB gain difference between isotropic and dipole antennas in these calculations.
International Standards: Where EIRP and ERP are Applied
International telecommunications standards apply Effective Isotropic Radiated Power (EIRP) primarily in satellite communications and global terrestrial systems to quantify radiation power as if emitted isotropically. Effective Radiated Power (ERP) is predominantly used in regional broadcasting standards and aligns with antenna gain referenced to a half-wave dipole, facilitating regulatory compliance in Europe and other countries. Organizations such as the International Telecommunication Union (ITU) provide guidelines defining EIRP and ERP usage to ensure interoperability and spectrum management across diverse wireless communication infrastructures.
Antenna Gain and Its Impact on EIRP and ERP
Antenna gain significantly influences both Effective Isotropic Radiated Power (EIRP) and Effective Radiated Power (ERP), representing the antenna's ability to focus energy in a specific direction. EIRP calculates the radiated power relative to an isotropic radiator and uses antenna gain expressed in dBi, while ERP is referenced to a half-wave dipole antenna with gain given in dBd. Understanding the difference in antenna gain measurement units is crucial for accurately assessing transmitter power output and optimizing signal coverage in telecommunications networks.
Regulatory Compliance: EIRP and ERP Limits
EIRP (Equivalent Isotropically Radiated Power) and ERP (Effective Radiated Power) are critical metrics for ensuring regulatory compliance in telecommunications, with specific limits enforced by agencies such as the FCC and ITU to control interference and ensure safety. EIRP accounts for the total power radiated by an antenna as if it were isotropic, whereas ERP is referenced to a half-wave dipole antenna, typically resulting in different numerical limits. Compliance with these regulatory limits is mandatory for wireless communication devices, base stations, and transmitters to avoid penalties and ensure optimal spectrum usage.
Practical Applications in Wireless Network Design
EIRP (Equivalent Isotropically Radiated Power) and ERP (Effective Radiated Power) are critical metrics in wireless network design for optimizing signal coverage and minimizing interference. EIRP accounts for the total power radiated from an isotropic antenna, enhancing precision in link budget calculations for systems like LTE and 5G, while ERP references a half-wave dipole antenna, commonly used in broadcasting standards such as FM radio. Practical applications involve selecting appropriate values to ensure regulatory compliance and maximize network efficiency in urban and rural deployments.
Equipment Specifications: Choosing Based on EIRP/ERP
EIRP (Equivalent Isotropically Radiated Power) and ERP (Effective Radiated Power) are critical metrics influencing telecommunications equipment selection, as they determine the effective transmission power accounting for antenna gain and losses. Choosing equipment based on EIRP ensures compatibility with systems calibrated to isotropic antenna references, while ERP-based selection aligns with devices specified under dipole antenna standards. Accurate specification of EIRP or ERP in equipment datasheets optimizes network design, regulatory compliance, and signal coverage efficiency.
EIRP vs ERP: Implications for Coverage and Interference
Effective Isotropic Radiated Power (EIRP) and Effective Radiated Power (ERP) are key metrics in telecommunications influencing signal coverage and interference patterns. EIRP accounts for the total power radiated by an antenna in a specific direction relative to an isotropic radiator, while ERP references the power relative to a half-wave dipole antenna, typically about 2.15 dB less than EIRP. Choosing between EIRP and ERP measurements affects network design decisions, as EIRP provides a more comprehensive assessment of maximum possible interference and coverage area in directional antenna systems.
Conversion Methods: Switching Between EIRP and ERP
To convert ERP (Effective Radiated Power) to EIRP (Equivalent Isotropically Radiated Power), multiply the ERP value by 1.64, reflecting the difference between a half-wave dipole antenna gain and an isotropic antenna gain. Conversely, converting EIRP to ERP requires dividing the EIRP value by 1.64 to account for this gain differential. These conversion methods ensure accurate power level comparisons across different antenna reference standards in telecommunications.
Future Trends in Power Measurement Techniques
Future trends in power measurement techniques in telecommunications emphasize enhanced precision and real-time analytics by integrating advanced sensor technology and AI-driven diagnostics. The distinction between EIRP (Effective Isotropic Radiated Power) and ERP (Effective Radiated Power) becomes crucial as adaptive beamforming and 5G/6G networks demand accurate radiated power characterization for optimizing signal coverage and minimizing interference. Emerging methods leverage machine learning algorithms to automatically calibrate and predict power metrics in dynamic environments, improving efficiency in spectrum utilization and network performance.

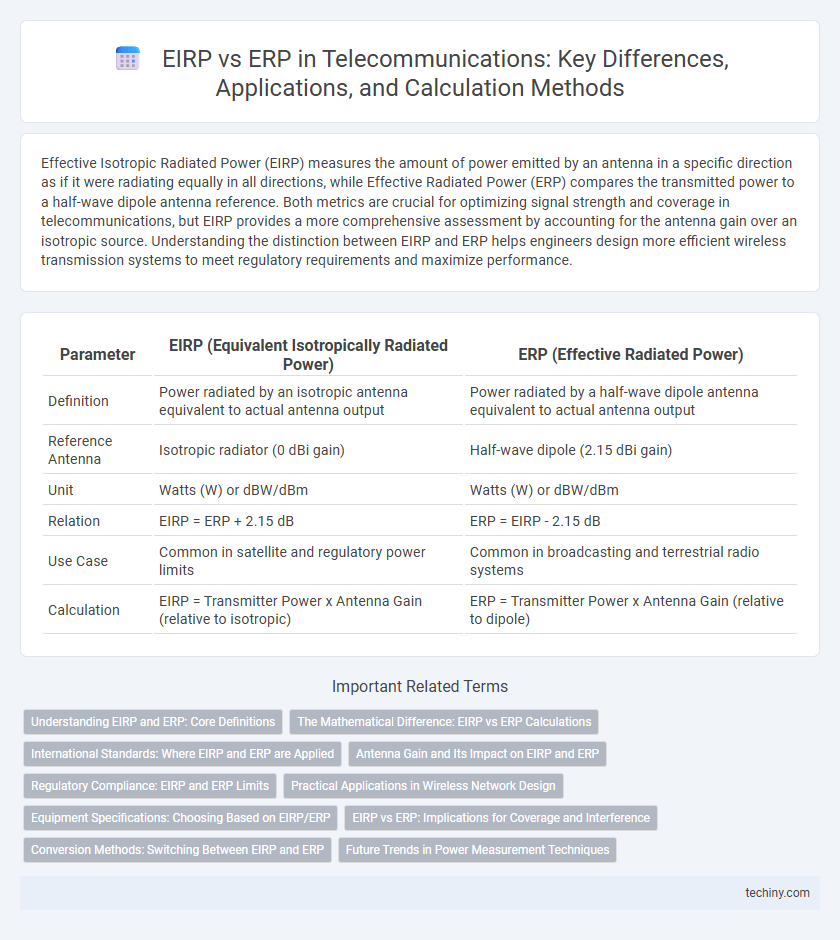

EIRP vs ERP Infographic
