techiny.com Frequency Division Duplex (FDD) and Time Division Duplex (TDD) are two key methods used in telecommunications for separating uplink and downlink transmissions. FDD uses separate frequency bands for sending and receiving data simultaneously, offering stable latency and better performance in symmetrical traffic scenarios. TDD shares the same frequency band but allocates different time slots for uplink and downlink, providing greater flexibility and efficiency in handling asymmetric data traffic.
Table of Comparison
| Feature | FDD (Frequency Division Duplex) | TDD (Time Division Duplex) |
|---|---|---|
| Definition | Separate frequency bands for uplink and downlink | Shared frequency band with time-separated uplink and downlink |
| Spectrum Efficiency | Less flexible, fixed uplink/downlink ratio | Flexible, adjustable uplink/downlink ratio |
| Latency | Lower latency due to simultaneous transmission | Potentially higher latency from time-slot switching |
| Interference | Lower interference, strict frequency separation | Higher interference risk, requires guard intervals |
| Deployment Complexity | Requires paired spectrum allocation | Can use unpaired spectrum, simpler licensing |
| Use Cases | Ideal for symmetric traffic, legacy networks (3G, LTE) | Ideal for asymmetric traffic, 5G NR, Wi-Fi |
| Examples | LTE FDD, GSM | TD-LTE, 5G NR TDD, Wi-Fi |
Introduction to FDD and TDD in Telecommunications
Frequency Division Duplexing (FDD) and Time Division Duplexing (TDD) are two primary methods used in telecommunications to enable bidirectional communication between devices. FDD assigns separate frequency bands for uplink and downlink transmissions, minimizing interference and allowing simultaneous two-way communication, making it ideal for applications requiring continuous data flow. TDD, on the other hand, uses a single frequency band for both uplink and downlink by alternating transmission time slots, offering greater flexibility and efficient spectrum usage in asymmetric traffic scenarios.
Defining Frequency Division Duplex (FDD)
Frequency Division Duplex (FDD) separates uplink and downlink transmissions by allocating distinct frequency bands, enabling simultaneous bidirectional communication. This duplexing method is essential in cellular networks like LTE and 5G to reduce interference and improve spectral efficiency. FDD's consistent timing and stable latency make it ideal for voice services and real-time applications in telecommunications.
Defining Time Division Duplex (TDD)
Time Division Duplex (TDD) is a duplexing method where uplink and downlink transmissions share the same frequency band but occur at different time intervals, optimizing spectrum efficiency. Unlike Frequency Division Duplex (FDD), which allocates separate frequency bands for uplink and downlink, TDD dynamically adapts the time slots based on traffic demand, enhancing network flexibility. This makes TDD particularly effective for asymmetric traffic patterns common in modern telecommunications networks.
Key Differences Between FDD and TDD
Frequency Division Duplex (FDD) separates uplink and downlink transmissions into distinct frequency bands, providing continuous transmission and low latency suitable for voice-centric applications. Time Division Duplex (TDD) allocates uplink and downlink transmissions within the same frequency band but at different time intervals, offering flexible bandwidth allocation and improved spectrum efficiency ideal for data-intensive services. FDD requires paired spectrum and is less affected by timing synchronization issues, whereas TDD enables dynamic adjustment of uplink/downlink ratios but demands precise timing coordination to avoid interference.
Spectrum Efficiency: FDD vs TDD
FDD (Frequency Division Duplex) achieves spectrum efficiency by assigning separate frequency bands for uplink and downlink, minimizing interference but potentially underutilizing spectrum when traffic is asymmetric. TDD (Time Division Duplex) improves spectrum efficiency by dynamically allocating time slots for uplink and downlink on the same frequency band, optimizing capacity based on real-time traffic demands. TDD's flexibility makes it particularly effective in scenarios with asymmetric data flow and variable traffic patterns, enhancing overall spectral utilization compared to fixed FDD allocations.
Deployment Scenarios for FDD and TDD
FDD (Frequency Division Duplex) is ideal for large-scale deployments requiring symmetrical uplink and downlink traffic, such as traditional mobile networks and voice-centric applications, benefiting from paired spectrum allocation. TDD (Time Division Duplex) excels in environments with asymmetrical data demands and limited spectrum availability, commonly used in dense urban areas and 5G networks where dynamic traffic patterns demand flexible uplink/downlink ratios. Deployment of TDD supports cost-effective infrastructure with simplified hardware, while FDD requires paired bands and is preferred in established LTE and early 5G deployments with balanced traffic requirements.
Performance in High Traffic Environments
Frequency Division Duplex (FDD) delivers consistent low latency and stable throughput by separating uplink and downlink channels, making it ideal for high traffic environments with predictable and symmetric data flows. Time Division Duplex (TDD) offers dynamic allocation of uplink and downlink resources, optimizing spectral efficiency and performance during bursty or asymmetric traffic conditions commonly seen in mobile broadband networks. TDD's adaptability allows better handling of high user density and varying demand patterns, but FDD maintains superior reliability under steady heavy traffic loads.
Cost Considerations: FDD Compared to TDD
Frequency Division Duplex (FDD) systems often incur higher initial costs due to the need for paired spectrum bands and more complex radio frequency components, leading to increased infrastructure expenses. Time Division Duplex (TDD) utilizes a single frequency band for both uplink and downlink transmissions, resulting in more efficient spectrum usage and lower spectrum acquisition costs. Maintenance and operational expenditures tend to be lower with TDD due to simpler hardware and flexible time-slot allocation, making it a cost-effective choice for evolving telecommunications networks.
FDD vs TDD in 4G and 5G Networks
FDD and TDD are duplexing methods used in 4G and 5G networks to separate uplink and downlink transmissions. FDD assigns distinct frequency bands for uplink and downlink, offering consistent latency and better performance in symmetric traffic scenarios, while TDD uses a single frequency band with time-separated uplink and downlink slots, allowing dynamic allocation of resources suited for asymmetric traffic. In 5G networks, TDD gains prominence due to its flexibility and efficiency in handling diverse traffic patterns and massive MIMO deployments, whereas FDD remains vital for broad coverage and compatibility with existing 4G infrastructure.
Future Trends and Industry Adoption
FDD (Frequency Division Duplex) continues to dominate in traditional cellular networks due to its stable performance and broad spectrum availability, while TDD (Time Division Duplex) gains traction with 5G deployments for its flexibility and efficient spectrum utilization. Future trends indicate a growing industry shift towards dynamic TDD solutions leveraging AI for real-time adaptation and improved uplink-downlink balancing in dense urban environments. Major telecom operators and equipment manufacturers increasingly adopt hybrid FDD-TDD architectures to optimize network capacity, latency, and energy efficiency in next-generation wireless systems.

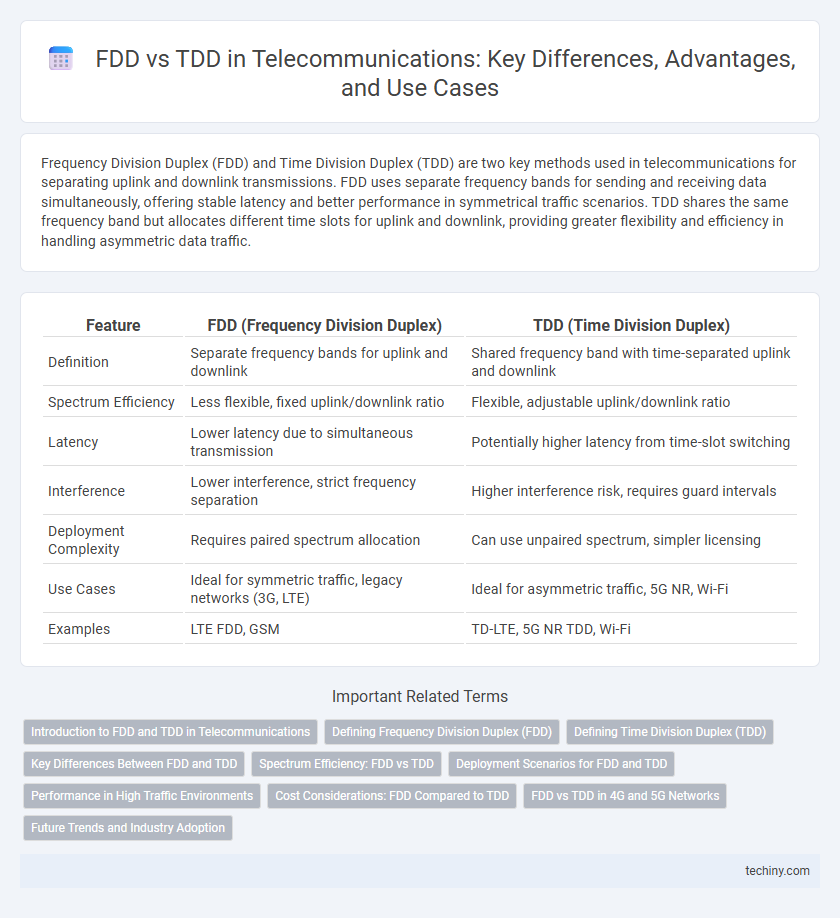

FDD vs TDD Infographic
