techiny.com Frequency Division Duplex (FDD) uses separate frequency bands for uplink and downlink transmissions, allowing simultaneous two-way communication and minimizing latency. Time Division Duplex (TDD) shares the same frequency band but separates uplink and downlink by allocating different time slots, which offers greater flexibility in adapting to asymmetric traffic. FDD is preferred in scenarios requiring consistent low latency and continuous data flow, while TDD is advantageous for dynamically changing traffic patterns and more efficient spectrum usage.
Table of Comparison
| Feature | Frequency Division Duplex (FDD) | Time Division Duplex (TDD) |
|---|---|---|
| Duplexing Method | Separate frequency bands for uplink and downlink | Same frequency band, separated by time slots |
| Spectrum Efficiency | Lower due to dedicated uplink/downlink bands | Higher, dynamic allocation of uplink/downlink slots |
| Latency | Lower latency, continuous transmission | Higher latency from switching times |
| Interference | Reduced self-interference, but inter-band interference possible | Higher self-interference risk, requires advanced cancellation |
| Deployment Complexity | Complex due to frequency planning | Simpler spectrum use, complex timing synchronization |
| Use Cases | Preferred in FDD spectrum licenses, stable uplink/downlink traffic | Ideal for asymmetric traffic, unpaired spectrum, 5G NR |
| Examples | LTE FDD, GSM | LTE TDD, 5G NR TDD |
Introduction to Duplexing in Telecommunications
Frequency Division Duplex (FDD) and Time Division Duplex (TDD) are essential duplexing techniques used in telecommunications to enable bi-directional communication between devices and base stations. FDD assigns separate frequency bands for uplink and downlink transmissions, allowing simultaneous two-way communication with minimal interference. TDD utilizes a single frequency band, alternating between uplink and downlink in different time slots, optimizing spectrum efficiency and adapting dynamically to traffic demand.
Understanding Frequency Division Duplex (FDD)
Frequency Division Duplex (FDD) in telecommunications enables simultaneous uplink and downlink transmissions by allocating separate frequency bands for each direction, reducing interference and ensuring stable communication. It is predominantly used in cellular networks such as LTE and 3G, where paired spectrum bands improve latency and throughput. FDD's spectrum efficiency and minimal latency make it ideal for voice-centric services and consistent real-time data transmission.
Exploring Time Division Duplex (TDD)
Time Division Duplex (TDD) enables bidirectional communication by dividing time into separate uplink and downlink slots, optimizing spectrum usage in asymmetric traffic scenarios. TDD systems adapt dynamically to varying data demands, improving network efficiency and latency compared to Frequency Division Duplex (FDD) which requires paired spectrum bands. The flexibility of TDD supports advanced technologies like 5G NR, where dynamic allocation of time slots enhances capacity and reduces interference in dense deployments.
Key Differences Between FDD and TDD
Frequency Division Duplex (FDD) allocates separate frequency bands for uplink and downlink transmissions, enabling simultaneous two-way communication with minimal interference, whereas Time Division Duplex (TDD) uses the same frequency band but separates uplink and downlink by allocating different time slots, optimizing spectrum efficiency. FDD is ideal for symmetric traffic with fixed frequency resources and requires paired spectrum, while TDD offers dynamic flexibility to adjust uplink and downlink ratios, making it suitable for asymmetric data traffic patterns common in modern mobile broadband. Interference management in FDD is simpler due to frequency separation, whereas TDD systems must address challenges like guard periods and synchronization to minimize uplink-downlink switching interference.
Spectrum Efficiency: FDD vs TDD
Frequency Division Duplex (FDD) allocates separate frequency bands for uplink and downlink, enabling continuous transmissions and minimizing interference, which is advantageous for symmetric traffic but can underutilize spectrum in asymmetric traffic scenarios. Time Division Duplex (TDD) uses a single frequency band split into time slots for uplink and downlink, offering flexible adaptation to traffic asymmetry and improving spectrum efficiency in dynamically changing network loads. In scenarios with uneven uplink and downlink demands, TDD typically achieves higher spectrum efficiency by reallocating time slots, while FDD offers more stable performance for balanced traffic patterns.
Latency and Data Throughput Comparison
Frequency Division Duplex (FDD) offers consistent low latency by using separate frequency bands for uplink and downlink, enabling simultaneous data transmission. Time Division Duplex (TDD) provides greater flexibility in balancing uplink and downlink capacity but can introduce variable latency due to time slot switching, potentially impacting real-time applications. In terms of data throughput, TDD can achieve higher spectral efficiency in asymmetric traffic scenarios, while FDD maintains stable performance in symmetric data flows.
Deployment Scenarios for FDD and TDD
Frequency Division Duplex (FDD) is ideal for deployment scenarios requiring paired spectrum bands with continuous, symmetric uplink and downlink communications, commonly used in traditional mobile networks and long-range outdoor environments. Time Division Duplex (TDD) suits unpaired spectrum availability and dynamic traffic patterns, making it efficient for dense urban areas and indoor small cell deployments where asymmetric data transmission is prevalent. Operators often select FDD for wide coverage and TDD for capacity enhancement and flexible spectrum utilization in 5G networks.
Cost and Infrastructure Considerations
Frequency Division Duplex (FDD) requires paired frequency bands, resulting in higher spectrum costs and more complex filtering infrastructure compared to Time Division Duplex (TDD), which utilizes a single frequency band separated by time slots. TDD offers cost advantages in dynamic traffic environments by enabling flexible uplink and downlink allocation without needing paired spectrum, reducing the need for expensive radio components. Infrastructure deployment for TDD is often simpler and more scalable, making it more suitable for evolving 5G networks with variable data demands and lower capital expenditure.
Suitability for 5G and Beyond
Frequency Division Duplex (FDD) allocates separate frequency bands for uplink and downlink, offering low latency and stable performance ideal for continuous, symmetric 5G applications such as voice calls and IoT devices. Time Division Duplex (TDD) uses a single frequency band with alternating uplink and downlink time slots, providing dynamic spectrum allocation and higher capacity suited for asymmetric data traffic common in 5G broadband and Massive MIMO deployments. For 5G and beyond, TDD's flexibility in spectrum utilization and beamforming capabilities makes it more suitable for ultra-dense networks, while FDD remains advantageous for wide-area coverage and legacy network integration.
Future Trends in Duplexing Technologies
Future trends in duplexing technologies emphasize the integration of dynamic spectrum sharing to enhance Frequency Division Duplex (FDD) performance, leveraging artificial intelligence for real-time interference management. Time Division Duplex (TDD) advancements focus on adaptive frame structures and ultra-low latency synchronization to support evolving 5G and 6G network demands. Hybrid duplexing solutions combining FDD and TDD attributes are emerging to optimize spectral efficiency and accommodate diverse traffic patterns in next-generation telecommunications.

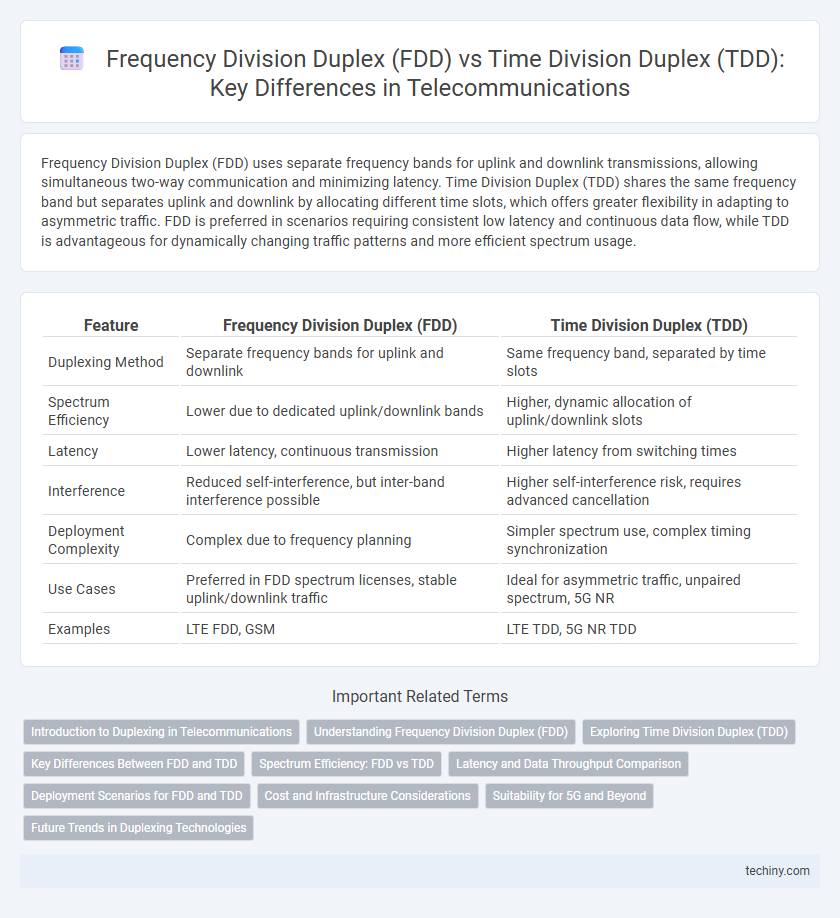

Frequency Division Duplex (FDD) vs Time Division Duplex (TDD) Infographic
