techiny.com OTDR and OSA are essential tools in telecommunications for fiber optic analysis, each serving distinct purposes. OTDR (Optical Time Domain Reflectometer) excels in identifying faults and measuring fiber length by sending light pulses and analyzing reflections, while OSA (Optical Spectrum Analyzer) provides detailed spectral information about the optical signals, crucial for wavelength and power measurements. Choosing between OTDR and OSA depends on whether the focus is on physical fiber integrity or optical signal characterization.
Table of Comparison
| Feature | OTDR (Optical Time Domain Reflectometer) | OSA (Optical Spectrum Analyzer) |
|---|---|---|
| Purpose | Measures fiber length, loss, and detects faults | Analyzes optical signal spectrum and wavelength characteristics |
| Functionality | Time-domain reflectometry for locating fiber events | Spectral analysis of optical signals over wavelength |
| Use Cases | Fiber optic cable testing, fault location, splice verification | Wavelength characterization, signal quality assessment, laser testing |
| Data Output | Distance vs. loss trace | Power vs. wavelength spectrum |
| Measurement Range | Up to 100+ kilometers fiber length | Typical spectral range from 600 nm to 1700 nm |
| Primary Users | Field technicians, network installers | Research labs, optical component manufacturers |
| Advantages | Precise fault location, loss quantification | High-resolution spectral data, detailed signal analysis |
| Limitations | No spectral data, limited wavelength detail | Cannot measure fiber length or locate faults |
Introduction to OTDR and OSA in Telecommunications
Optical Time Domain Reflectometer (OTDR) and Optical Spectrum Analyzer (OSA) are essential tools in telecommunications for fiber optic network analysis. OTDR measures signal loss, fiber length, and locates faults by sending pulses of light and analyzing their reflections along the fiber, enabling precise fault detection and maintenance. OSA provides detailed spectral analysis of optical signals, identifying wavelength, power levels, and spectral characteristics crucial for wavelength-division multiplexing (WDM) systems and signal optimization.
Core Functions: What is OTDR?
Optical Time Domain Reflectometer (OTDR) is a crucial diagnostic tool in telecommunications used for characterizing optical fibers by measuring backscattered light to identify faults, splices, and connectors along the fiber length. It generates a trace representing signal loss versus distance, enabling precise localization of breaks, bends, and fiber attenuation. OTDR is essential for network maintenance, installation verification, and troubleshooting in fiber optic infrastructures.
Core Functions: What is OSA?
Optical Spectrum Analyzer (OSA) is a device used in telecommunications to measure and analyze the power distribution of optical signals across different wavelengths within fiber optic networks. Unlike an Optical Time Domain Reflectometer (OTDR) that primarily focuses on identifying faults and measuring fiber length through backscatter analysis, OSA provides detailed spectral analysis critical for wavelength division multiplexing (WDM) system optimization and signal quality assessment. OSA core functions include detecting signal interference, measuring channel power, and ensuring precise wavelength alignment in advanced optical communication systems.
Key Differences Between OTDR and OSA
Optical Time-Domain Reflectometer (OTDR) and Optical Spectrum Analyzer (OSA) serve distinct roles in telecommunications fiber testing by focusing on different measurement parameters. OTDR primarily maps fiber length, identifies faults, splices, and connectors by analyzing backscattered light and reflections, providing spatial information essential for network troubleshooting. In contrast, OSA measures the optical spectrum, analyzing wavelength, power distribution, and spectral content, critical for assessing signal quality and wavelength division multiplexing (WDM) system performance.
OTDR Applications in Fiber Optic Networks
OTDR (Optical Time Domain Reflectometer) plays a crucial role in fiber optic network maintenance by enabling precise fault location, splice quality verification, and fiber length measurement. Its ability to provide detailed backscatter and reflection data helps network technicians quickly identify breaks, bends, and degradations. OTDR applications extend to network installation, troubleshooting, and performance monitoring, ensuring optimal signal integrity and minimizing downtime.
OSA Applications in Telecom Networks
Optical Spectrum Analyzers (OSAs) in telecom networks provide critical analysis of wavelength division multiplexing (WDM) signals, enabling precise channel spacing and power level measurements. OSAs detect signal impairments such as chromatic dispersion and non-linear effects, essential for maintaining high-quality data transmission across fiber optic infrastructures. Their application supports network optimization, fault isolation, and ensures compliance with telecom standards for efficient bandwidth utilization.
Performance Metrics: OTDR vs OSA
Optical Time Domain Reflectometers (OTDR) measure fiber optic cable performance by detecting backscattered light, providing detailed distance and loss data, which is crucial for pinpointing faults and splices along the fiber. Optical Spectrum Analyzers (OSA) analyze the wavelength spectrum of optical signals, offering high-resolution wavelength and power measurements essential for assessing channel quality and identifying spectral impairments in high-capacity DWDM networks. OTDR excels in spatial resolution and event location accuracy, while OSA delivers superior spectral resolution and wavelength measurement precision, making both tools complementary for comprehensive fiber optic performance evaluation.
Typical Use Cases: When to Use OTDR or OSA
Optical Time-Domain Reflectometers (OTDR) are typically used for fiber optic cable fault detection, distance measurement, and splice characterization, making them ideal for installation and maintenance of fiber networks. Optical Spectrum Analyzers (OSA) excel in analyzing wavelength, power, and signal integrity in DWDM systems, thus they are preferred for optical component testing and network performance monitoring. OTDRs serve best in identifying physical issues like breaks and bends, while OSAs are essential for spectral analysis and wavelength management.
Cost and Maintenance Considerations
OTDRs typically have higher upfront costs but lower maintenance expenses due to their robust design and fewer consumable parts, whereas OSAs often require costly calibration and specialized upkeep to ensure measurement accuracy. The maintenance for OSAs includes frequent cleaning and replacement of optical components, which increases operational expenses over time. When budgeting for telecommunications network testing, the total cost of ownership favors OTDRs for long-term projects with extensive fiber inspections.
Future Trends for OTDR and OSA Technologies
Future trends in OTDR (Optical Time Domain Reflectometer) technology emphasize enhanced spatial resolution and faster measurement speeds, enabling more precise fault localization in increasingly complex fiber optic networks. OSA (Optical Spectrum Analyzer) advancements focus on extended wavelength ranges and higher sensitivity to support the growing demand for dense wavelength division multiplexing (DWDM) and coherent optical communications. Integration of AI-driven analytics and compact, field-deployable designs is expected to revolutionize both OTDR and OSA applications in telecom network monitoring and maintenance.

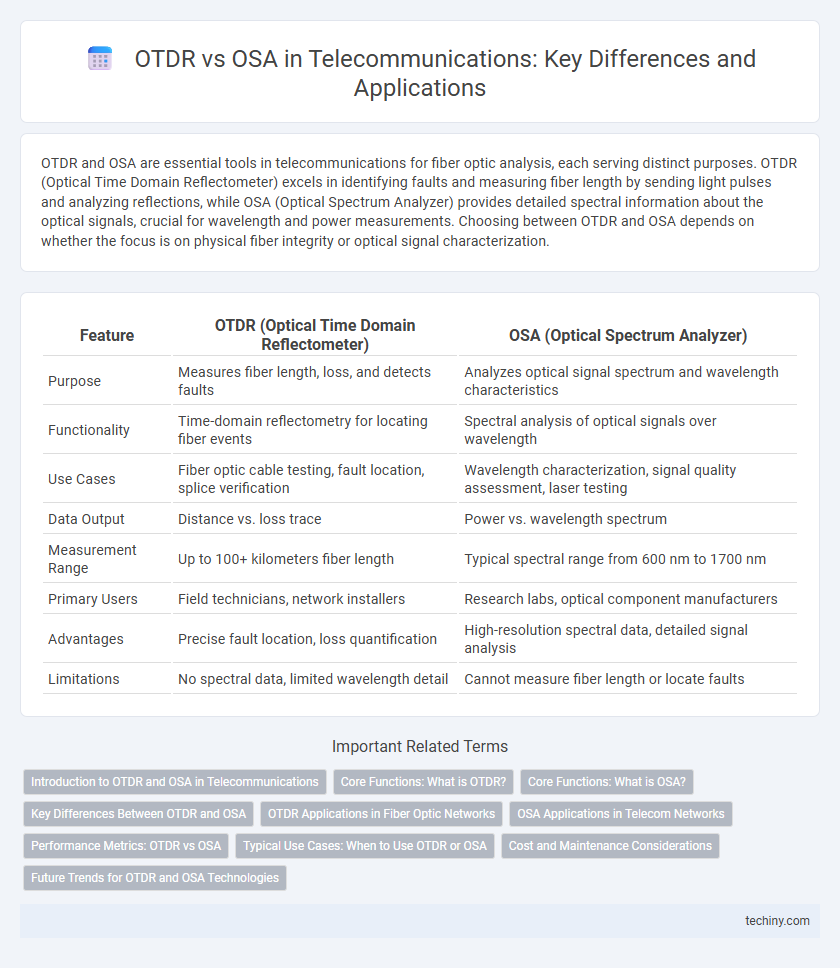

OTDR vs OSA Infographic
