techiny.com Single-Mode Fiber (SMF) provides higher bandwidth and longer transmission distances, making it ideal for telecommunications networks requiring high-speed data over vast areas. Multimode Fiber (MMF) supports shorter distances and is typically used for local area networks due to its larger core size and lower cost. Choosing between SMF and MMF depends on the specific network requirements such as distance, speed, and budget constraints.
Table of Comparison
| Feature | Single-Mode Fiber (SMF) | Multi-Mode Fiber (MMF) |
|---|---|---|
| Core Diameter | 8-10 microns | 50-62.5 microns |
| Light Propagation | Single light mode | Multiple light modes |
| Distance Capability | Up to 80 km+ | Up to 2 km |
| Bandwidth | Higher bandwidth, ideal for long-haul | Lower bandwidth, suited for shorter distances |
| Cost | Higher initial cost | Lower initial cost |
| Common Applications | Telecom networks, long-distance data transmission | LANs, data centers, short-range communication |
Introduction to SMF and MMF in Telecommunications
Single-Mode Fiber (SMF) and Multi-Mode Fiber (MMF) are essential types of optical fibers used in telecommunications to transmit data via light signals. SMF supports longer transmission distances with higher bandwidth by allowing a single light mode to propagate, making it ideal for long-haul and high-speed networks. MMF carries multiple light modes, suitable for shorter distances and cost-effective installations, commonly used in local area networks (LANs) and data centers.
Defining Single-Mode Fiber (SMF)
Single-Mode Fiber (SMF) is a type of optical fiber designed for long-distance communication using a single light mode to minimize signal attenuation and dispersion. SMF typically features a core diameter of approximately 8 to 10 microns, allowing precise light transmission over distances exceeding 40 kilometers with high bandwidth capacity. This fiber type is ideal for telecommunications networks requiring high-speed, low-latency data transfer across metropolitan and long-haul applications.
Defining Multimode Fiber (MMF)
Multimode Fiber (MMF) is a type of optical fiber designed with a larger core diameter, typically 50 or 62.5 microns, allowing multiple light modes to propagate simultaneously, which facilitates high bandwidth over shorter distances. Commonly used in data centers and local area networks (LANs), MMF offers cost-effective connectivity for distances up to 550 meters while supporting high-speed transmission at 10 Gbps or more.
Core Diameter and Physical Characteristics
Single-mode fiber (SMF) offers a smaller core diameter of approximately 8-10 microns, enabling long-distance data transmission with minimal signal attenuation and dispersion, ideal for high-speed telecommunications networks. Multimode fiber (MMF) features a larger core diameter of 50 or 62.5 microns, supporting multiple light modes that facilitate shorter-distance communication but encounter higher modal dispersion and attenuation. The physical characteristics of SMF's narrow core allow precise light propagation with laser sources, whereas MMF's broader core accommodates LED sources, influencing network design and performance in telecom infrastructure.
Bandwidth and Data Transmission Rates
Single-Mode Fiber (SMF) supports higher bandwidth and significantly greater data transmission rates compared to Multi-Mode Fiber (MMF), making it ideal for long-distance telecommunications and high-speed data networks. SMF can achieve bandwidths exceeding 10 Gbps over tens of kilometers, while MMF typically supports lower bandwidths around 10 Gbps but only over distances up to 550 meters. The smaller core diameter of SMF reduces modal dispersion, enabling superior signal integrity and higher transmission rates essential for backbone and metro networks.
Distance Limitations: SMF vs MMF
Single-mode fiber (SMF) supports transmission distances exceeding 40 kilometers with minimal signal loss due to its narrow core and low modal dispersion, making it ideal for long-haul telecommunications. Multimode fiber (MMF), limited to shorter distances typically up to 550 meters at 10 Gbps, experiences higher modal dispersion caused by multiple light paths, which degrades signal quality over extended runs. The inherent design differences dictate SMF's suitability for backbone infrastructure and MMF's use in local area networks (LANs) where shorter distance coverage suffices.
Cost Comparison: Deployment and Maintenance
Singlemode fiber (SMF) typically incurs higher initial deployment costs due to expensive laser transceivers and stricter installation requirements, but offers lower long-term maintenance expenses because of its superior signal quality and longer transmission distances. Multimode fiber (MMF) has lower upfront costs with cheaper LEDs and connectors, making it suitable for shorter distances and easier deployments, but maintenance and upgrade costs can rise due to modal dispersion and more frequent replacements. Cost efficiency ultimately depends on network scale, distance, and performance needs, with SMF favored for large, high-bandwidth infrastructures and MMF for cost-sensitive, shorter-range applications.
Common Applications in Telecommunications
Single-mode fiber (SMF) is commonly used in long-distance telecommunications and high-speed data transmission due to its low attenuation and high bandwidth capabilities. Multimode fiber (MMF) finds primary applications in shorter distance communications such as within data centers, local area networks (LANs), and enterprise networks because of its cost-effectiveness and ease of installation. Both fiber types support critical telecommunications infrastructure but are chosen based on distance requirements and network architecture.
Compatibility with Network Equipment
Singlemode Fiber (SMF) offers superior compatibility with high-speed network equipment such as DWDM systems and long-haul optical transmitters, supporting wavelengths typically around 1310 nm and 1550 nm. Multimode Fiber (MMF) aligns well with shorter distance devices like Ethernet switches and data center transceivers operating at 850 nm or 1300 nm, but its modal dispersion limits bandwidth over longer distances. Network engineers must match SMF or MMF cables precisely to the transceiver specifications to ensure optimal signal integrity and prevent compatibility issues in telecommunications infrastructure.
Choosing Between SMF and MMF for Telecom Networks
Single-Mode Fiber (SMF) offers longer transmission distances with minimal signal attenuation, making it ideal for telecom networks requiring high bandwidth over extensive geographical areas. Multimode Fiber (MMF) supports shorter distances and lower data rates but provides cost-effective connectivity for campus or data center environments. Selecting between SMF and MMF depends on network scale, budget constraints, and desired performance criteria in telecommunications infrastructure.

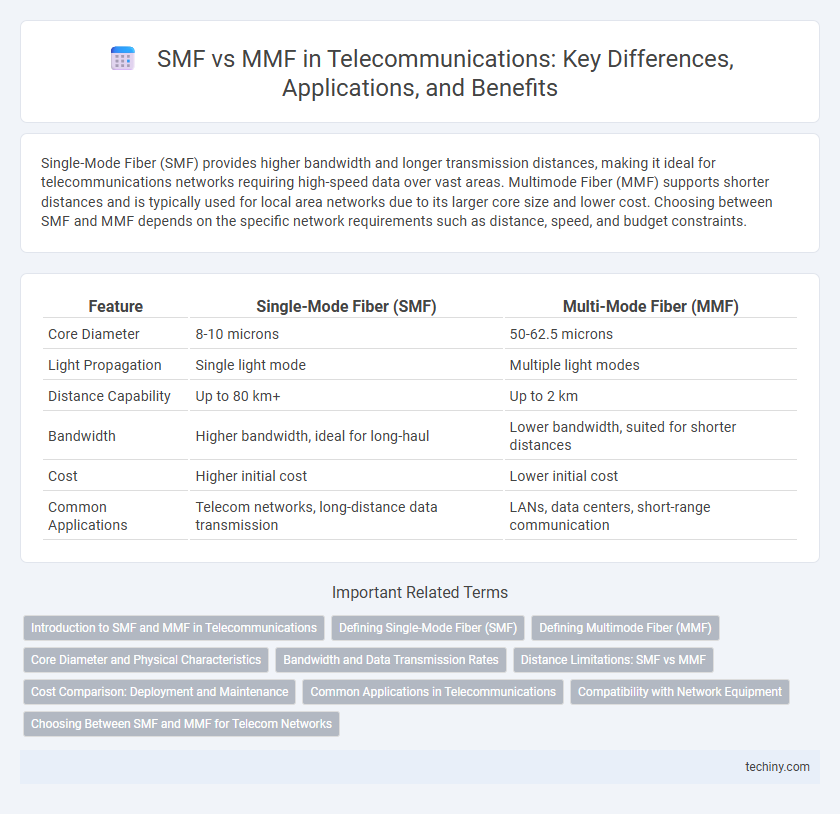

SMF vs MMF Infographic
