techiny.com TIA-568A and TIA-568B are standards for wiring twisted-pair network cables, primarily used in telecommunications to ensure reliable data transmission. Both define pinouts for terminating eight-wire cables, but TIA-568B is more widely used in commercial installations due to its compatibility with older AT&T standards. Choosing between TIA-568A and TIA-568B depends on existing infrastructure and specific network requirements, as mixing standards can cause connectivity issues.
Table of Comparison
| Feature | TIA-568A | TIA-568B |
|---|---|---|
| Standard | Telecommunications Industry Association (TIA) 568A | Telecommunications Industry Association (TIA) 568B |
| Pinout Configuration | Green pair on pins 1 & 2; Orange pair on pins 3 & 6 | Orange pair on pins 1 & 2; Green pair on pins 3 & 6 |
| Usage | Preferred for residential and new installations | Widely used in commercial installations |
| Compatibility | Compatible with older telephone wiring | Aligns with AT&T 258A standard |
| Pair Color Code | 1: White/Green, 2: Green, 3: White/Orange, 6: Orange | 1: White/Orange, 2: Orange, 3: White/Green, 6: Green |
| Standard Application | Used in T568A compliant structured cabling | Used in T568B compliant structured cabling |
| Cross-Compatibility | Can be mixed only with 568A at both ends for proper connectivity | Can be mixed only with 568B at both ends for proper connectivity |
Introduction to TIA-568A and TIA-568B Standards
TIA-568A and TIA-568B are industry standards for structured cabling in telecommunications, defining wiring schemes for twisted-pair Ethernet cables. TIA-568A was introduced first, specifying color codes and pinouts for 8P8C connectors to ensure interoperability and performance. TIA-568B, developed later, differs mainly in color coding for specific pairs but remains compatible, allowing technicians to choose based on existing infrastructure or regional preferences.
Historical Background of TIA/EIA Cabling Standards
TIA-568A and TIA-568B are structured cabling standards developed by the Telecommunications Industry Association (TIA) to establish uniform wiring schemes for twisted pair cables in telecommunications. The TIA/EIA-568 standards evolved from the early 1990s ANSI/TIA/EIA drafts, aiming to ensure interoperability and improved performance in network cabling systems. TIA-568A was the initial standard, later supplemented and largely replaced by TIA-568B, which became widely adopted due to its alignment with AT&T's 258A wiring pattern, reflecting the industry's move toward compatibility and standardization.
Key Differences Between TIA-568A and TIA-568B
TIA-568A and TIA-568B are two wiring standards for twisted pair cabling defined by the Telecommunications Industry Association, primarily differing in the pin assignments of the orange and green wire pairs. TIA-568A assigns the green pair to pins 1 and 2 and the orange pair to pins 3 and 6, while TIA-568B reverses these positions, assigning the orange pair to pins 1 and 2 and the green pair to pins 3 and 6. These differences impact network compatibility and installation practices, with TIA-568B being more commonly used in commercial installations across North America.
Wiring Pinouts and Color Codes Comparison
TIA-568A and TIA-568B standards define distinct wiring pinouts and color codes for structured cabling in telecommunications. TIA-568A color sequence begins with white/green and green on pins 1 and 2, while TIA-568B starts with white/orange and orange corresponding to those pins. Both standards use the same pinout for pins 3-8 but differ primarily in the arrangement of the first two pairs, impacting cross-compatibility in network hardware installations.
Application Scenarios for TIA-568A and TIA-568B
TIA-568A is commonly used in residential and government installations due to its backward compatibility with older telephone wiring standards, making it ideal for environments requiring consistent integration with existing infrastructure. TIA-568B is predominant in commercial and enterprise networks, offering widespread industry adoption and better support for modern high-speed data transmission applications. Both standards support unshielded twisted pair (UTP) cabling but differ in pin assignments, influencing compatibility based on specific network equipment and wiring schemes.
Performance Considerations in Network Installations
TIA-568A and TIA-568B wiring standards primarily differ in pinout assignments but offer equivalent electrical performance in network installations, supporting up to 1 Gbps for Cat5e and up to 10 Gbps for Cat6 cables. Both standards maintain consistent impedance and crosstalk specifications, ensuring minimal signal loss and reliable data transmission over structured cabling systems. Network performance relies more on cable quality and installation techniques than on the choice between TIA-568A or TIA-568B wiring schemes.
Compatibility with Network Devices and Legacy Systems
TIA-568A and TIA-568B standards differ in wiring schemes but maintain compatibility across most network devices and legacy systems through consistent signaling protocols. Network hardware such as switches, routers, and patch panels support both standards, enabling seamless integration without performance degradation. Legacy systems often use TIA-568A due to historical prevalence, while modern installations favor TIA-568B; crossover cables facilitate interoperability between these wiring variants.
Common Mistakes in TIA-568A and TIA-568B Implementation
Common mistakes in TIA-568A and TIA-568B implementation include improper wire pair termination, causing crosstalk and signal degradation. Confusion between the two standards often leads to mixed terminations on each end of a cable, resulting in network connectivity issues. Ensuring consistent use of either TIA-568A or TIA-568B on both ends is critical for optimal telecommunications performance and compliance with ANSI/TIA-568 wiring specifications.
Best Practices for Choosing the Right Standard
Selecting between TIA-568A and TIA-568B standards depends on existing infrastructure and compatibility requirements within telecommunications networks. TIA-568B is widely adopted in North America, making it the preferred choice for new installations to ensure interoperability and uniformity. Adhering to consistent wiring standards reduces troubleshooting complexity and enhances network performance and reliability.
Future Trends in Structured Cabling Standards
TIA-568A and TIA-568B are foundational structured cabling standards defining wiring schemes for twisted-pair cables in telecommunications networks. Future trends in structured cabling standards emphasize higher data transmission rates, greater bandwidth capacity, and enhanced support for emerging technologies like 5G and IoT. Innovations will likely focus on backward compatibility between TIA-568A and TIA-568B while optimizing infrastructure for seamless integration with fiber optics and next-generation network protocols.

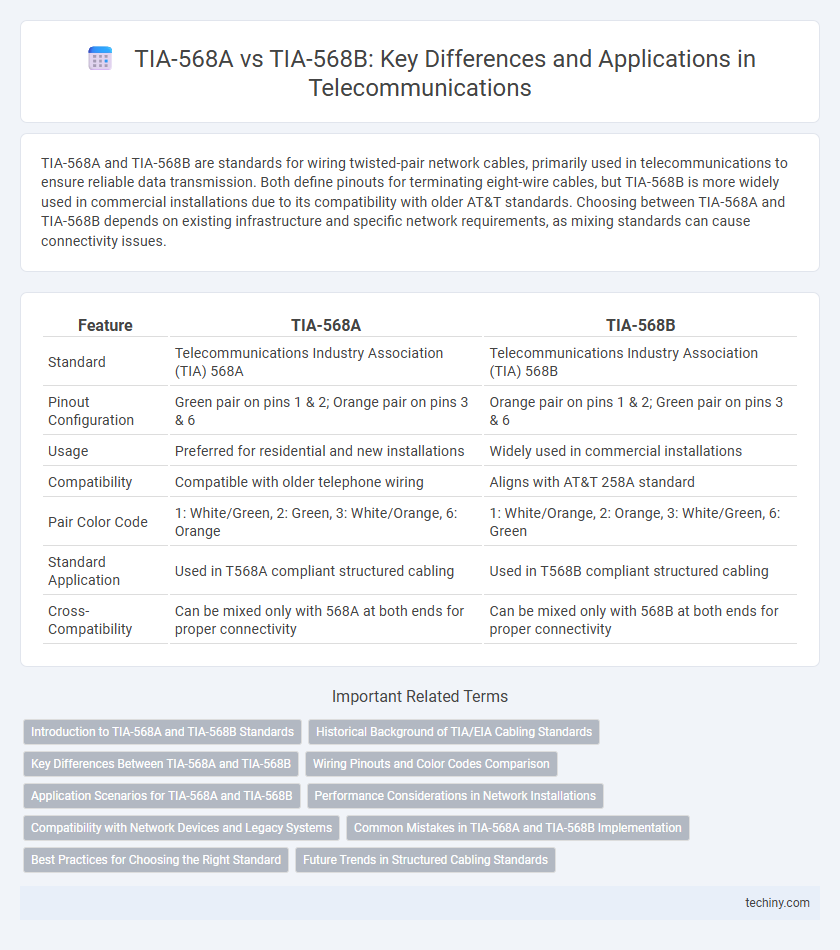

TIA-568A vs TIA-568B Infographic
