techiny.com TIA/EIA-568A and TIA/EIA-568B are two wiring standards for structured cabling in telecommunications that define pinouts for terminating twisted pair cables. Both standards ensure compatibility and performance in Ethernet networks, but they differ in the arrangement of the wire pairs, affecting crossover cable creation and network device connections. Choosing between 568A and 568B depends on existing infrastructure and wiring conventions, with 568B being more commonly used in commercial installations.
Table of Comparison
| Feature | TIA/EIA-568A | TIA/EIA-568B |
|---|---|---|
| Pinout Standard | Pair 2 on pins 3 and 6 (Green) | Pair 2 on pins 1 and 2 (Orange) |
| Pair Color Code | Green, Orange, Blue, Brown | Orange, Green, Blue, Brown |
| Common Usage | Government and older networks | Commercial installations, predominant US standard |
| Compatibility | Works with 568B but requires crossover cables | Works with 568A but requires crossover cables |
| Crossover Cable Pinout | Ends wired 568A and 568B | Ends wired 568A and 568B |
| Standard Publication | TIA/EIA-568-A (1991) | TIA/EIA-568-B (1995) |
Introduction to TIA/EIA-568 Standards
TIA/EIA-568 standards define structured cabling systems to support high-speed telecommunications and data networks, with TIA/EIA-568A and TIA/EIA-568B specifying wiring pinouts for twisted-pair cables. TIA/EIA-568A was the original standard offering consistent color codes for T568A wiring, while TIA/EIA-568B introduced an alternative scheme with different color assignments for pairs 2 and 3 to address compatibility with older AT&T 258A systems. Both standards maintain electrical performance criteria but choosing between T568A and T568B affects network interoperability and is critical for ensuring proper cable termination and communication quality.
Overview of TIA/EIA-568A Wiring Scheme
TIA/EIA-568A wiring scheme defines the pinout standard for terminating twisted-pair Ethernet cables, specifically aiming to support 100BASE-T and 10BASE-T networks. It assigns green and orange wire pairs differently compared to 568B, with green pairs used for data transmission in 10/100 Mbps networks. This scheme ensures proper pairing and minimizes crosstalk, crucial for maintaining network integrity and performance in structured cabling systems.
Overview of TIA/EIA-568B Wiring Scheme
TIA/EIA-568B wiring scheme is a standardized method for terminating twisted-pair Ethernet cables, specifically defining the pinout order for Category 5e and Category 6 cables. It arranges the color-coded wire pairs in a sequence that optimizes signal integrity and supports 10BASE-T, 100BASE-TX, and 1000BASE-T network standards. Widely used in commercial and residential installations, TIA/EIA-568B facilitates consistent connectivity and interoperability across telecommunication infrastructures.
Key Differences Between TIA/EIA-568A and 568B
TIA/EIA-568A and 568B primarily differ in their wiring color codes for the eight-conductor twisted pair cables used in Ethernet and telecommunications. The key distinction lies in the arrangement of the green and orange wire pairs, impacting pin assignments on RJ45 connectors, which affects network device compatibility and cross-connect setups. Understanding these differences is crucial for maintaining consistent wiring standards, ensuring proper signal transmission, and avoiding connectivity issues in structured cabling systems.
Color Codes and Pin Assignments Explained
TIA/EIA-568A and TIA/EIA-568B are standards for wiring twisted pair network cables, differing primarily in their color codes and pin assignments for the eight wires inside the cable. In TIA/EIA-568A, the green pair (pins 1 and 2) is assigned to the first position, while in TIA/EIA-568B, the orange pair takes this spot, impacting cross-compatibility and cable termination. Understanding the pinout differences--such as green/white-green on pins 1 and 2 in 568A versus orange/white-orange in 568B--is critical for ensuring Ethernet cable performance and preventing connectivity issues in telecommunications networking.
Compatibility and Interchangeability
TIA/EIA-568A and TIA/EIA-568B are two wiring standards for Ethernet cabling that ensure structured cabling compatibility and interoperability in telecommunications networks. Both standards define the pinout configuration of twisted-pair cables, enabling interchangeability of cables and connectors while maintaining signal integrity across devices. While the color coding differs between 568A and 568B, the electrical performance and compatibility remain consistent, allowing seamless integration in mixed-standard environments.
When to Use TIA/EIA-568A vs 568B
TIA/EIA-568A is primarily used in residential installations and older government projects, aligning with federal government wiring standards. TIA/EIA-568B is more prevalent in commercial settings, data centers, and is widely adopted in current industry practices due to greater compatibility with modern networking equipment. Choosing between 568A and 568B depends on existing infrastructure, with consistency within a network cabling system being crucial to avoid connectivity issues.
Impact on Network Performance
TIA/EIA-568A and TIA/EIA-568B are standards for wiring twisted pair cabling in telecommunications, primarily differing in pin assignments. The choice between 568A and 568B has minimal impact on network performance, as both adhere to TIA/EIA specifications for Category 5e and Category 6 cables, supporting gigabit data rates and low crosstalk. Ensuring consistent use of either standard throughout the network is critical to maintaining signal integrity and preventing connectivity issues.
Industry Adoption and Best Practices
TIA/EIA-568B is more widely adopted in the telecommunications industry due to its backward compatibility with earlier network installations and equipment, making it the standard for most commercial projects and new builds. Best practices emphasize using TIA/EIA-568B for consistency across infrastructure and simplifying troubleshooting, while TIA/EIA-568A is primarily reserved for legacy systems and specialized applications. Network engineers recommend documenting the chosen wiring standard to ensure uniformity and compliance with industry guidelines for optimal performance and interoperability.
Choosing the Right Standard for Your Network
Choosing between TIA/EIA-568A and TIA/EIA-568B standards depends on network compatibility and existing infrastructure. TIA/EIA-568B is widely adopted in commercial environments, offering better interoperability with current equipment, while TIA/EIA-568A is more common in government installations and older systems. Ensuring consistent wiring across the network reduces signal interference and improves overall data transmission efficiency.

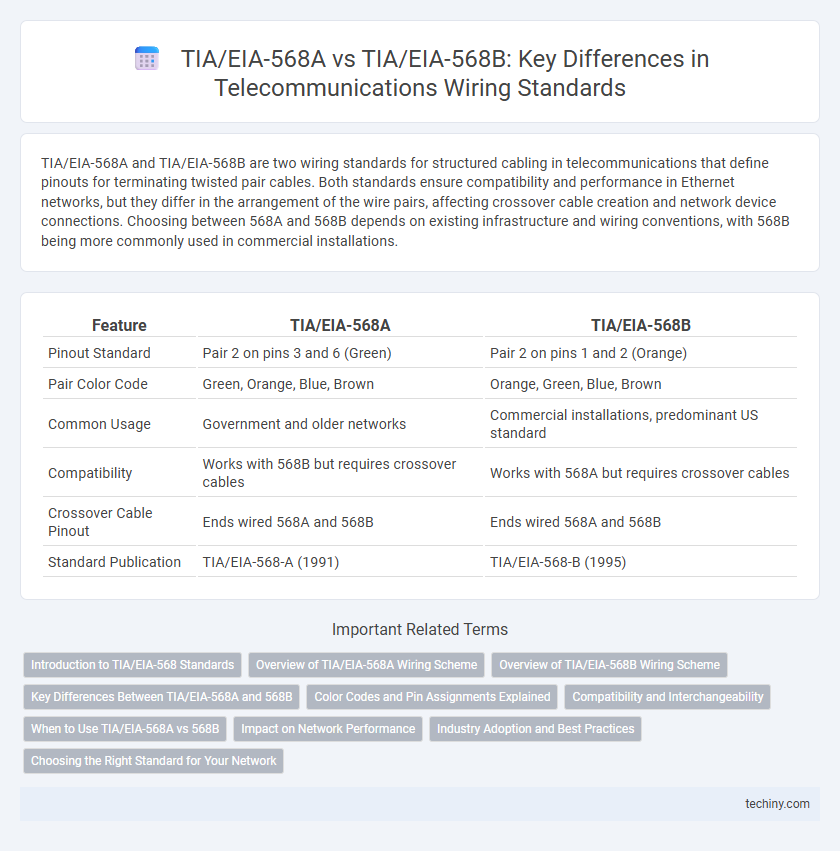

TIA/EIA-568A vs TIA/EIA-568B Infographic
