techiny.com The 3D accelerometer in wearable pet technology measures linear motion and detects changes in speed and direction, providing essential data on activity levels and movement patterns. In contrast, the 6-axis gyroscope combines a 3-axis accelerometer with a 3-axis gyroscope to capture both linear acceleration and rotational motion, offering more precise tracking of complex movements and orientation. This enhanced motion sensing capability allows for better monitoring of pet behavior, posture, and overall health.
Table of Comparison
| Feature | 3D Accelerometer | 6-Axis Gyroscope |
|---|---|---|
| Sensor Type | Measures linear acceleration on X, Y, Z axes | Measures angular velocity on X, Y, Z axes + 3-axis accelerometer integration |
| Axes | 3 axes (X, Y, Z) | 6 axes (3-axis gyroscope + 3-axis accelerometer) |
| Primary Use | Detects movement, orientation, and tilt | Tracks rotation, orientation, and complex motion |
| Data Output | Acceleration in m/s2 | Angular velocity in degrees/sec or radians/sec + acceleration |
| Applications in Wearables | Step counting, fall detection, basic activity recognition | Gesture recognition, advanced motion tracking, VR/AR interaction |
| Power Consumption | Lower power usage | Higher power usage due to more complex sensing |
| Cost | Generally lower cost | Higher cost due to additional sensors and complexity |
Introduction to Wearable Technology Sensors
Wearable technology sensors rely on precise motion detection to enhance user experiences, where 3D accelerometers measure linear acceleration in three-dimensional space, enabling activity tracking and step counting. In contrast, 6-axis gyroscopes combine a 3-axis accelerometer with a 3-axis gyroscope to capture both linear motion and rotational movement, offering more comprehensive motion analysis for applications like gesture control and posture monitoring. Integrating these sensors provides wearable devices with accurate orientation and movement data essential for fitness tracking, health monitoring, and augmented reality functions.
What Is a 3D Accelerometer?
A 3D accelerometer is a sensor that measures acceleration forces along three perpendicular axes (X, Y, and Z), enabling the detection of linear movement and orientation in wearable devices. It captures changes in velocity and gravitational pull, providing critical data for activity tracking, step counting, and gesture recognition. Unlike a 6-axis gyroscope, which measures rotational motion, the 3D accelerometer excels in detecting translational acceleration for precise motion analysis.
Understanding the 6-Axis Gyroscope
A 6-axis gyroscope combines a 3-axis gyroscope and a 3-axis accelerometer to measure angular velocity and linear acceleration across all three spatial dimensions, providing precise motion tracking in wearable technology. This sensor fusion enables accurate detection of orientation, rotation, and movement patterns, essential for applications like fitness tracking, gesture recognition, and augmented reality. Compared to standalone 3D accelerometers, 6-axis gyroscopes offer enhanced sensitivity and robustness in complex motion environments common in wearable devices.
Core Differences: 3D Accelerometer vs 6-Axis Gyroscope
A 3D accelerometer measures linear acceleration across three perpendicular axes (X, Y, Z), detecting changes in velocity and orientation relative to gravity, making it ideal for motion detection and step tracking in wearable technology. In contrast, a 6-axis gyroscope integrates a 3-axis gyroscope with a 3-axis accelerometer, providing both angular velocity and linear acceleration data, allowing for more precise motion tracking and rotational analysis. The core difference lies in the 3D accelerometer's focus on linear movement, whereas the 6-axis gyroscope captures comprehensive spatial orientation and rotational dynamics, enhancing motion sensitivity and accuracy in wearables.
How 3D Accelerometers Enhance Wearable Devices
3D accelerometers measure linear acceleration across three axes, enabling wearable devices to accurately track movement, orientation, and activity levels. These sensors improve real-time fitness monitoring, fall detection, and gesture recognition by providing precise motion data. Enhanced responsiveness and energy efficiency in wearables result from integrating 3D accelerometers, supporting seamless user experience and extended battery life.
The Role of 6-Axis Gyroscopes in Motion Tracking
6-axis gyroscopes combine a 3-axis gyroscope with a 3-axis accelerometer, enabling comprehensive motion tracking by capturing both angular velocity and linear acceleration. This fusion allows wearable devices to deliver precise orientation and movement data, improving applications such as fitness tracking, gesture control, and virtual reality. In contrast, standalone 3D accelerometers measure only acceleration forces, limiting their ability to accurately detect rotational movements.
Accuracy and Sensitivity: Comparing Sensor Precision
3D accelerometers measure linear acceleration along three axes, providing precise data on movement speed and direction with high sensitivity to subtle motions. 6-axis gyroscopes combine a 3-axis accelerometer and a 3-axis gyroscope, enhancing accuracy by capturing both linear acceleration and angular velocity for comprehensive motion tracking. The integration of these sensors in wearable technology results in superior precision and responsiveness, crucial for applications requiring detailed motion analysis.
Power Consumption and Efficiency in Wearables
3D accelerometers in wearable technology offer low power consumption by measuring linear motion on three axes, making them ideal for continuous activity tracking. In contrast, 6-axis gyroscopes combine a 3D accelerometer with a 3D gyroscope to capture rotational movements but consume more power due to increased sensor complexity. Efficient wearables balance these sensors to optimize battery life and motion accuracy, prioritizing 3D accelerometers for basic tracking and 6-axis gyroscopes for detailed motion analysis.
Use Cases: Choosing Between 3D Accelerometers and 6-Axis Gyroscopes
3D accelerometers excel in measuring linear motion and detecting orientation changes, making them ideal for fitness trackers and step counters that monitor movement intensity and direction. In contrast, 6-axis gyroscopes combine a 3-axis accelerometer with a 3-axis gyroscope to capture rotational motion and angular velocity, enhancing applications such as virtual reality headsets and advanced motion gaming controls. Selecting between these sensors depends on whether the use case prioritizes capturing linear acceleration or requires precise rotational tracking for immersive user experiences.
Future Trends in Wearable Motion Sensing Technology
Future trends in wearable motion sensing technology leverage the integration of 3D accelerometers and 6-axis gyroscopes for enhanced precision in activity tracking and health monitoring. Innovations in sensor fusion algorithms improve motion detection accuracy by combining linear acceleration data from 3D accelerometers with rotational velocity measurements from 6-axis gyroscopes. Emerging applications in augmented reality and sports analytics drive the demand for compact, low-power, and highly sensitive wearable sensors that provide comprehensive motion data in real time.

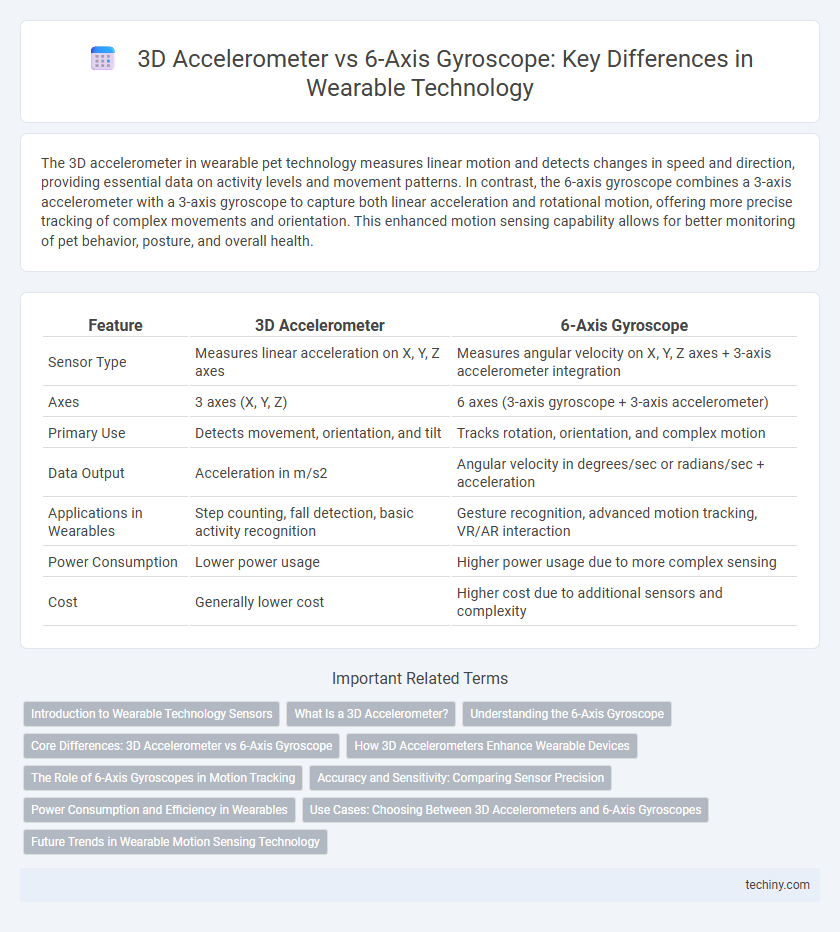

3D Accelerometer vs 6-Axis Gyroscope Infographic
