techiny.com Mesh bed leveling automates the process by creating a detailed height map of the build surface, ensuring consistent first layer adhesion across irregular or warped beds. Manual bed leveling requires users to adjust the bed height at multiple points using a physical gauge or paper, which can be time-consuming and less precise. Advanced 3D printers with mesh leveling improve print quality and reduce setup time compared to traditional manual methods.
Table of Comparison
| Feature | Mesh Bed Leveling | Manual Bed Leveling |
|---|---|---|
| Accuracy | High precision with automatic adjustments | Depends on user skill, potential for uneven bed |
| Convenience | Automated process, saves time | Requires manual adjustments, time-consuming |
| Setup Complexity | Needs firmware and sensor setup | Simple, no additional hardware needed |
| Reliability | Consistent results with regular calibration | Varies, prone to human error |
| Cost | Higher due to sensors and firmware | Minimal, uses existing hardware |
| Ideal Users | Experienced users, frequent print changes | Beginners or casual users |
Introduction to Bed Leveling in 3D Printing
Bed leveling in 3D printing ensures the build plate is perfectly aligned with the printer's nozzle, which is crucial for optimal first-layer adhesion and print quality. Mesh bed leveling uses a grid of measured points across the build surface to compensate for unevenness automatically, offering higher precision and ease of use compared to manual bed leveling. Manual bed leveling relies on adjusting screws and a physical feeler gauge or paper to create a flat surface, often requiring more time and experience to achieve consistent results.
What is Manual Bed Leveling?
Manual bed leveling in 3D printing involves physically adjusting the printer's build platform using screws or knobs to ensure an even distance between the nozzle and the print bed. This method requires the operator to test multiple points on the bed, typically using a piece of paper or feeler gauge, to achieve a consistent first layer. Compared to mesh bed leveling, manual bed leveling relies solely on user skill and experience, without automated compensation for surface irregularities.
Understanding Mesh Bed Leveling
Mesh bed leveling improves 3D print quality by automatically compensating for uneven print surfaces through a grid-based measurement system, creating a detailed height map of the build platform. Unlike manual bed leveling, which relies on adjusting screws by hand at a few points, mesh bed leveling uses sensors to detect variations across the entire bed, ensuring consistent nozzle distance and better first layer adhesion. This technology reduces print failures and enhances accuracy, particularly on larger or less rigid build plates.
Step-by-Step Manual Bed Leveling Process
Manual bed leveling in 3D printing involves adjusting the build platform by hand to ensure a consistent distance between the nozzle and the bed across the entire print surface. The step-by-step process includes heating the bed and nozzle to printing temperature, disabling the stepper motors to allow free movement, moving the print head to each corner and center of the bed, and using a piece of paper or feeler gauge to set a precise gap between the nozzle and bed by adjusting the bed screws. This method offers precise control but requires regular attention compared to mesh bed leveling, which automates compensation for bed irregularities.
Mesh Bed Leveling: How It Works
Mesh bed leveling in 3D printing uses a grid of precise measurements across the print bed to create a detailed height map, adjusting the nozzle height in real-time during printing for optimal first-layer adhesion. Sensors probe multiple points on the bed surface, detecting variations in leveling to compensate for unevenness automatically. This automated process enhances print quality by maintaining consistent layer thickness and reducing the risk of print failures compared to manual bed leveling.
Accuracy: Mesh vs Manual Bed Leveling
Mesh bed leveling provides superior accuracy by mapping multiple points across the entire print bed, compensating for slight surface irregularities and ensuring consistent nozzle distance during printing. Manual bed leveling, relying on a limited number of adjustment points, often struggles to achieve uniformity, leading to potential first layer adhesion issues and print defects. The precision of mesh bed leveling enhances print quality and reduces calibration time compared to traditional manual methods.
Time and Effort: Comparing Both Methods
Mesh bed leveling automates the process by using sensors to map the print bed's surface, significantly reducing the time and effort required compared to manual bed leveling, which demands careful adjustment of screws and multiple test prints. Manual bed leveling often involves iterative tweaks to achieve optimal nozzle distance, making it a time-consuming and labor-intensive process prone to human error. Mesh bed leveling provides consistent, repeatable results, freeing users from frequent recalibration and enhancing overall printing efficiency.
Equipment and Software Requirements
Mesh bed leveling relies on advanced sensors such as inductive or capacitive probes integrated with firmware like Marlin or Klipper, enhancing precision through automated height mapping. Manual bed leveling depends on physical adjustment knobs and a simple tool like a feeler gauge or paper, requiring no additional electronics or complex software. While mesh leveling demands compatible hardware and firmware configurations, manual leveling offers basic functionality without extra equipment costs or software calibration.
Common Issues and Troubleshooting
Mesh bed leveling reduces common issues like uneven first layers and poor adhesion by creating a detailed height map of the print surface, minimizing the need for frequent adjustments. Manual bed leveling often leads to inconsistencies due to human error, causing uneven nozzle gaps and resulting in warped prints or filament clogging. Troubleshooting mesh leveling typically involves recalibrating the mesh after nozzle changes or repairs, while manual leveling requires careful, repeated adjustments to maintain consistent print quality.
Which Bed Leveling Method is Right for You?
Mesh bed leveling uses a sensor to create a detailed height map of the print bed, ensuring consistent nozzle distance and improved first-layer adhesion, ideal for complex or uneven surfaces. Manual bed leveling requires adjusting screws based on feeler gauges or paper, which is cost-effective but demands regular attention and skill for optimal results. Choose mesh bed leveling for convenience and precision, while manual leveling suits users who prefer hands-on control and minimal hardware upgrades.

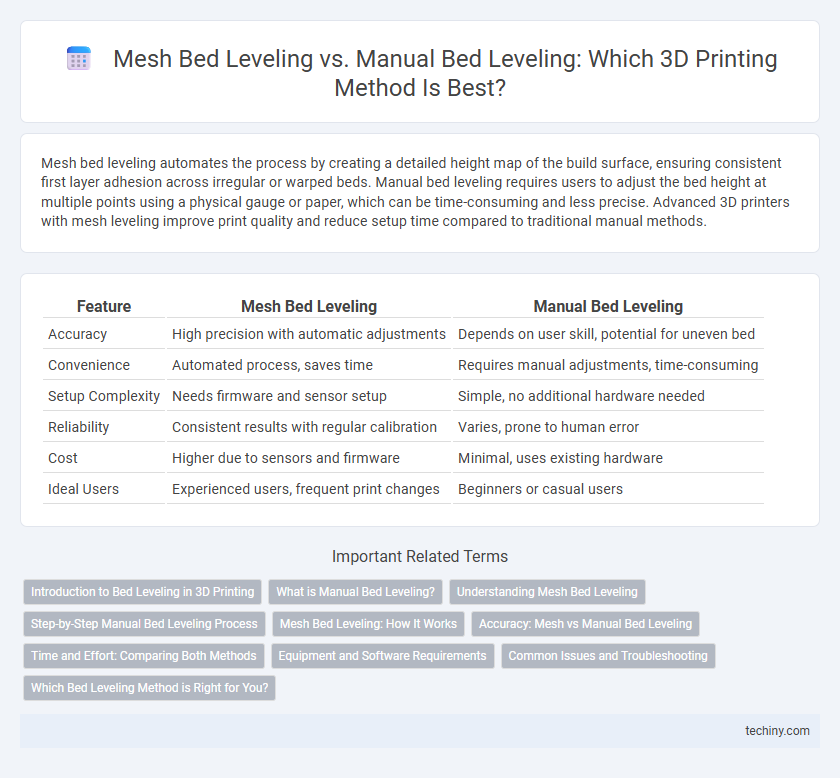

Mesh Bed Leveling vs Manual Bed Leveling Infographic
