techiny.com All-metal hotends offer higher temperature resistance, enabling the use of advanced filaments like nylon and polycarbonate without the risk of PTFE degradation. PTFE-lined hotends provide smoother filament flow and reduced clogging for standard materials such as PLA and ABS but are limited by a lower maximum temperature threshold. Choosing between these hotend types depends on the desired filament compatibility and printing temperature requirements.
Table of Comparison
| Feature | All-Metal Hotend | PTFE-Lined Hotend |
|---|---|---|
| Max Printing Temperature | Up to 300degC+ | Up to 250degC |
| Material Compatibility | High-temp filaments (Nylon, Polycarbonate, ABS) | Standard filaments (PLA, PETG, TPU) |
| Durability | High, no PTFE degradation | Lower, PTFE can degrade at high temps |
| Print Quality | Better for abrasive filaments | Smoother extrusion at lower temps |
| Maintenance | Requires regular cleaning and thermal management | PTFE lining may need replacement over time |
| Cost | Higher initial cost | Lower initial cost |
Introduction to 3D Printer Hotends
3D printer hotends are critical components that heat and extrude filament to create precise prints, with two main types being all-metal hotends and PTFE-lined hotends. All-metal hotends operate at higher temperatures, allowing the use of advanced materials like polycarbonate and nylon, while PTFE-lined hotends offer smoother filament flow and are ideal for lower-temperature filaments like PLA. Choosing the right hotend impacts print quality, material compatibility, and overall printer performance.
What is an All-Metal Hotend?
An all-metal hotend is a 3D printer component made entirely from metal parts, designed to withstand higher temperatures compared to PTFE-lined hotends, enabling the printing of advanced materials like polycarbonate and nylon. Unlike PTFE-lined hotends, which use a PTFE tube liner that degrades above 240degC, all-metal hotends maintain thermal stability up to around 300degC or more. This makes all-metal hotends essential for high-temperature printing applications, ensuring durability and better heat conductivity.
What is a PTFE-Lined Hotend?
A PTFE-lined hotend features an inner tube made from polytetrafluoroethylene (PTFE) that guides the filament through the heating zone, providing low friction and chemical resistance. This design helps reduce filament jams and improves print quality when using standard filaments like PLA and ABS at moderate temperatures. However, PTFE liners degrade at high temperatures, making them less suitable for printing advanced materials requiring temperatures above 240degC.
Material Compatibility and Temperature Limits
All-metal hotends offer superior material compatibility by handling high-temperature filaments such as polycarbonate, nylon, and ABS, withstanding temperatures up to 300degC or more without degradation. PTFE-lined hotends are limited to lower temperatures, typically around 240degC, as the PTFE tube can degrade and emit harmful fumes when overheated, restricting them to materials like PLA and TPU. Choosing an all-metal hotend is essential for advanced 3D printing projects that demand durability and versatility with high-temperature thermoplastics.
Print Quality: All-Metal vs PTFE-Lined
All-metal hotends deliver superior print quality by maintaining consistent extrusion temperatures up to 300degC, enabling precise printing of high-temperature filaments like Nylon and Polycarbonate without deformation. PTFE-lined hotends, limited to around 240degC due to the thermal degradation of the PTFE liner, often suffer from inconsistent extrusion and reduced layer adhesion when printing at higher temperatures. The absence of a PTFE liner in all-metal designs eliminates the risk of clogging and chemical breakdown, resulting in cleaner prints with enhanced surface finish and mechanical strength.
Maintenance and Longevity Comparison
All-metal hotends offer superior durability and can withstand higher temperatures without degradation, resulting in longer service life and reduced need for frequent replacements. PTFE-lined hotends require more maintenance due to PTFE tube wear and degradation at elevated temperatures, often necessitating periodic liner replacement to prevent clogs and ensure print quality. Choosing an all-metal hotend enhances longevity and minimizes downtime by eliminating the risk of PTFE thermal breakdown, which is common in sustained high-temperature printing.
Safety Considerations for Each Hotend Type
All-metal hotends offer higher temperature resistance reducing risks of PTFE degradation, making them safer for high-temp materials but require proper cooling to prevent heat creep that may cause jams. PTFE-lined hotends operate at lower temperatures, minimizing thermal decomposition hazards but pose safety concerns as PTFE can release toxic fumes if overheated beyond its 250degC limit. Safe operation mandates understanding these thermal characteristics and ensuring consistent temperature control to avoid material failure and health risks.
Common Applications and Use Cases
All-metal hotends excel in high-temperature printing applications like engineering polymers (PEEK, Nylon) due to their ability to withstand continuous temperatures above 300degC, making them ideal for industrial and functional prototyping. PTFE-lined hotends suit general-purpose 3D printers using PLA, ABS, and PETG, offering smoother filament flow at moderate temperatures up to 250degC, commonly found in desktop and hobbyist setups. Choosing the right hotend impacts print quality, material compatibility, and durability according to whether the user prioritizes extended heat resistance or ease of maintenance.
Cost Analysis: Which Hotend Offers Better Value?
All-metal hotends typically cost more upfront but provide greater durability and reliability for high-temperature filaments, reducing long-term replacement expenses. PTFE-lined hotends are more affordable initially but require more frequent maintenance and part replacements, increasing total cost over time. Evaluating material compatibility, print quality needs, and usage frequency helps determine which hotend offers better value for specific 3D printing applications.
Choosing the Right Hotend for Your 3D Printer
Choosing the right hotend for your 3D printer depends on the materials you plan to print and desired temperature ranges. All-metal hotends support higher temperatures up to 300degC or more, enabling reliable printing with advanced filaments like Nylon, Polycarbonate, and ABS, while PTFE-lined hotends excel in printing lower-temperature filaments such as PLA and TPU but degrade if exposed to high heat above 240degC. Consider durability, maintenance needs, and filament compatibility to optimize print quality and extend hotend lifespan.

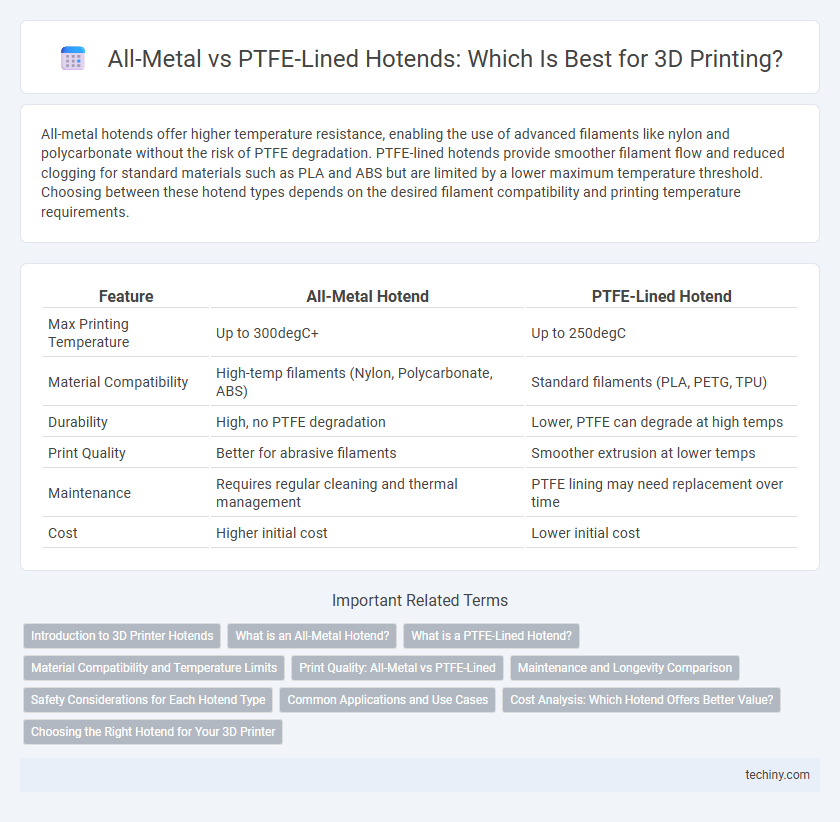

All-Metal Hotend vs PTFE-Lined Hotend Infographic
