techiny.com In 3D printing pets, the infill determines the internal structure and strength, while the shell defines the outer surface quality and durability. Higher infill percentages provide greater sturdiness but increase print time and material usage, whereas thicker shells enhance the pet's detail and resistance to wear. Balancing infill and shell settings optimizes both the model's robustness and aesthetic appeal.
Table of Comparison
| Feature | Infill | Shell |
|---|---|---|
| Definition | Internal structure inside a 3D print | Outer walls or perimeter layers of a 3D print |
| Purpose | Provides internal strength and reduces material usage | Ensures surface finish, dimensional accuracy, and part strength |
| Material Usage | Less material compared to solid prints, adjustable density (e.g., 10-50%) | More material per layer, fixed thickness (e.g., 1-3 shells) |
| Print Time | Depends on infill density, lower density reduces print time | Longer due to multiple outer layers for quality and strength |
| Strength Contribution | Supports internal load bearing and structure stability | Provides impact resistance and surface durability |
| Customization | Variable patterns: honeycomb, grid, gyroid, etc. | Fixed shell count and thickness settings |
| Common Use Cases | Lightweight functional parts, prototypes, support | Parts requiring quality surfaces and structural integrity |
Understanding Infill and Shell in 3D Printing
In 3D printing, infill refers to the internal structure that provides strength and stability to the printed object, while shells are the outer walls that define the surface quality and durability. The infill density and pattern impact weight and material usage, whereas the shell thickness determines surface finish and resistance to wear. Optimizing the balance between infill and shell settings enhances mechanical performance and print efficiency.
Key Differences Between Infill and Shell
In 3D printing, infill refers to the internal lattice structure that provides strength and reduces material usage, while the shell constitutes the outer walls that define the object's surface quality and durability. Key differences include that infill density impacts weight and print time, whereas shell thickness primarily affects surface finish and impact resistance. Optimizing both infill patterns and shell layers ensures a balance between mechanical strength and aesthetic precision in printed parts.
Role of Infill: Strength, Weight, and Material Use
In 3D printing, infill plays a crucial role in determining the strength, weight, and material usage of the printed object by filling the internal volume with a specific pattern and density. Higher infill percentages increase structural integrity and durability while also adding weight and consuming more filament, whereas lower infill reduces material consumption and weight but may compromise mechanical strength. Optimizing infill settings balances performance requirements and resource efficiency, impacting the overall functionality and cost of the 3D printed part.
Shell Parameters: Thickness, Layers, and Surface Quality
Shell parameters in 3D printing, including thickness and number of layers, significantly impact the model's structural integrity and surface quality. Increasing shell thickness and layers enhances durability and improves surface smoothness by reducing visible layer lines and potential gaps. Optimizing these parameters ensures a balance between print strength and material efficiency, resulting in a high-quality final print.
How Infill Patterns Impact Print Performance
Infill patterns significantly influence 3D print strength, weight, and material efficiency, with common types including honeycomb, grid, and gyroid offering varied structural support. Denser patterns increase part durability but require longer print times and more filament, while sparse patterns reduce material use and speed up printing at the expense of mechanical integrity. Optimizing infill pattern selection based on the print's functional requirements enhances overall performance and ensures optimal balance between strength, flexibility, and cost.
Shell Strength: Protecting and Supporting the Print
Shell strength in 3D printing refers to the outer walls of a printed object that provide structural integrity and surface finish quality. Increasing the number of shells enhances durability, impact resistance, and protects the inner infill from external forces. Strong shells are especially critical for functional parts that require wear resistance and load-bearing capacity.
Balancing Infill Density and Shell Thickness
Balancing infill density and shell thickness in 3D printing optimizes mechanical strength and material usage, ensuring durable prints without excessive weight. Higher shell thickness enhances surface strength and layer adhesion, while appropriate infill density provides internal support and rigidity. Achieving the right combination depends on the object's functional requirements, with typical infill densities ranging from 10% to 30% paired with shell thicknesses of 0.8 to 1.2 mm for standard prints.
Optimizing Infill and Shell for Functional Parts
Optimizing infill density and shell thickness is crucial for balancing strength, weight, and material usage in functional 3D printed parts. Higher shell layers enhance surface durability and impact resistance, while tailored infill patterns like gyroid or hexagonal provide internal support without excessive weight. Adjusting these parameters based on part application improves mechanical performance and print efficiency in additive manufacturing.
Common Mistakes with Infill and Shell Settings
Common mistakes with infill and shell settings in 3D printing include using insufficient infill density, leading to weak internal structure and poor part durability. Setting shell thickness too thin often compromises the outer wall strength, resulting in visible surface defects and reduced mechanical performance. Balancing infill patterns and shell layers according to the part's functional requirements ensures optimal strength, weight, and print time efficiency.
Best Practices for Infill and Shell in 3D Printing
Optimal 3D printing requires balancing infill density and shell thickness to enhance part strength and reduce material usage. Best practices suggest using a higher shell count of 3-4 layers to improve surface durability, while selecting an infill percentage between 15-25% for structural support without excessive weight. Employing grid or honeycomb infill patterns maximizes internal stability, and adjusting shell thickness according to print function optimizes resistance to impact and wear.

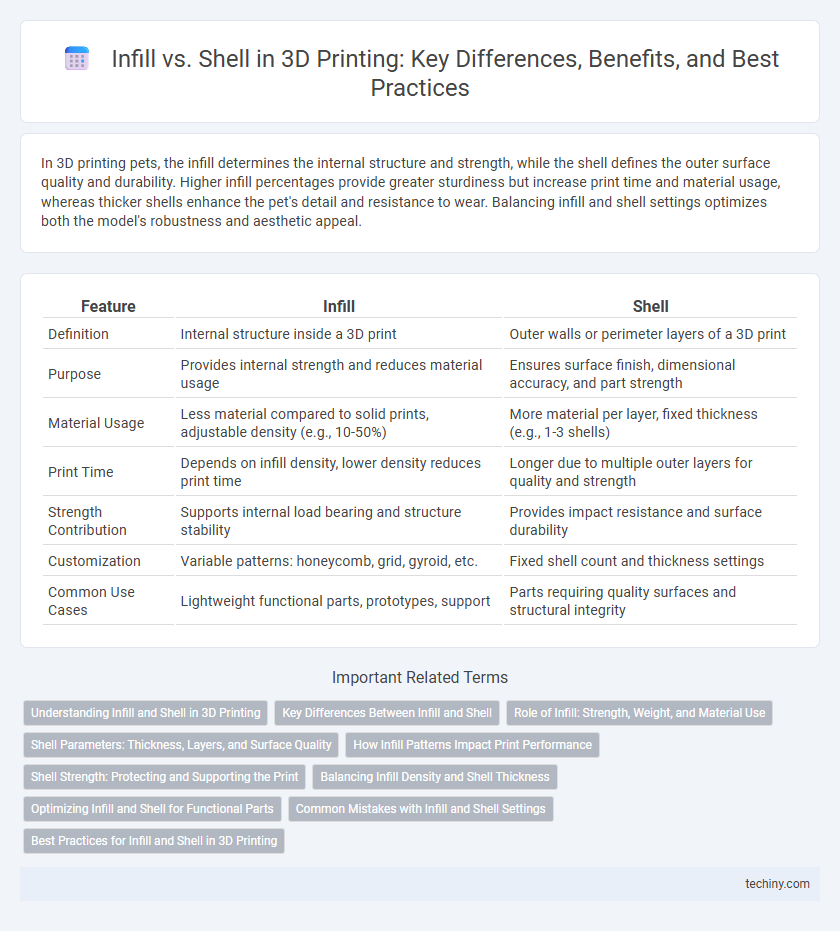

Infill vs Shell Infographic
